THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

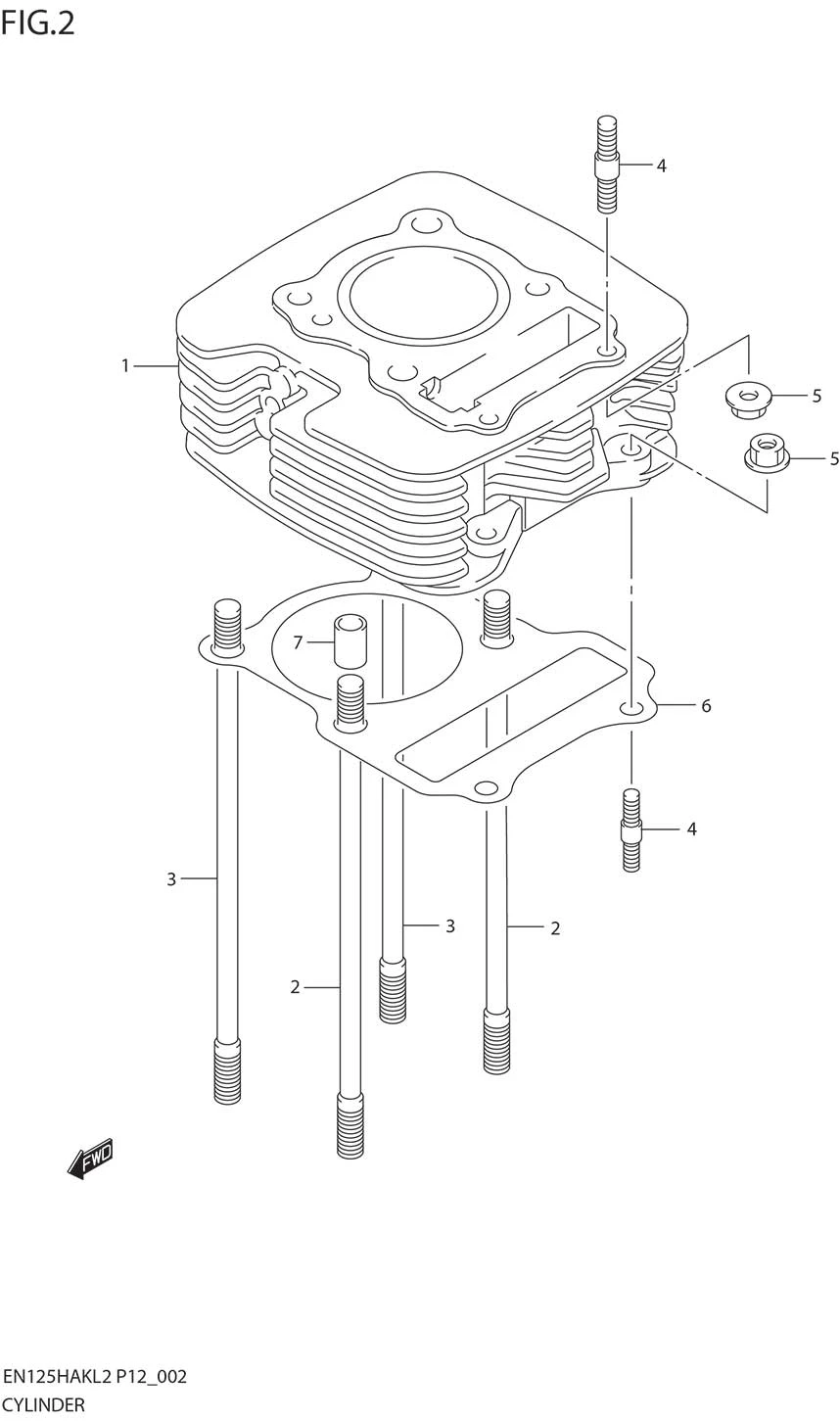

FIG.2 CYLINDER

FIG.2 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-26H00-0F0	CYLINDER	1	Rp843.000
2	09108-08052-000 SUB: 09108-08062-000	STUD BOLT (8X150)	2	Rp30.000
3	09108-08089-000	STUD BOLT (8X155)	2	Rp30.000
4	01421-0625A-000	STUD BOLT (L:25)	4	Rp7.000
5	08316-1006A-000	NUT	4	Rp2.000
6	11241-25H00-000	GASKET, CYLINDER	1	-
7	04211-11169-000	PIN (L:16)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
