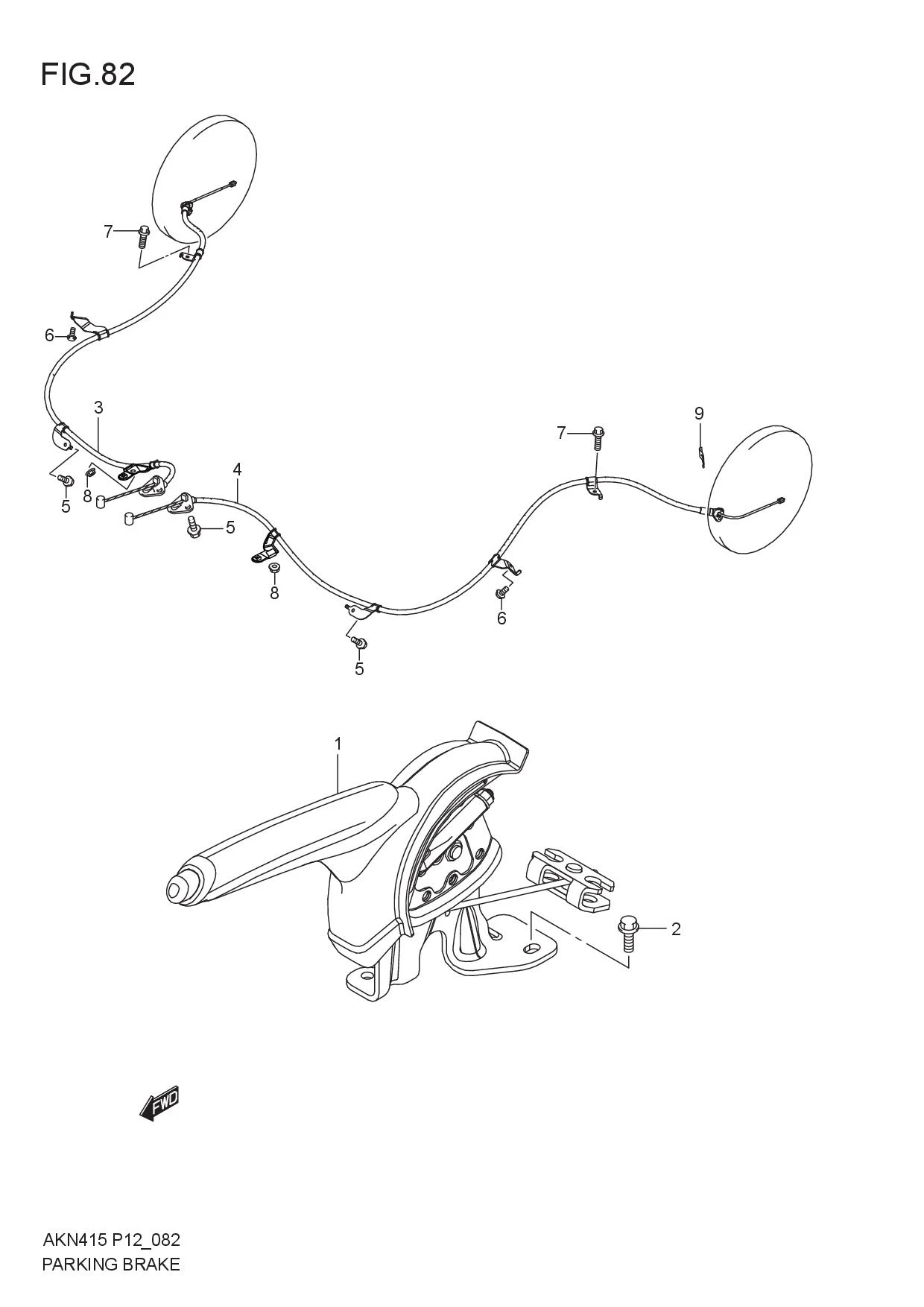

FIG.82 PARKING BRAKE

FIG.82 PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M76M00-C48 LEVER ASSY,PARKING BRAKE (BLACK/CHROME) 1 Rp493.000
2 01550-0816A-000
SUB: 01550B0816AN000		 BOLT,PARKING BRAKE LEVER 2 Rp6.000
3 54401M65M20-000 CABLE,PARKING BRAKE,RH 1 Rp272.500
4 54402M65M20-000 CABLE,PARKING BRAKE,LH 1 Rp272.500
5 02162-0616A-000 BOLT,PARKING CABLE CLAMP 4 Rp3.000
6 01551-0812A-000 BOLT,PARKING CABLE CLAMP 2 Rp18.500
7 02162-0612A-000 BOLT,PARKING CABLE CLAMP 2 Rp11.000
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT,PARKING CABLE CLAMP 2 Rp2.000
9 09383M13005-000 E-RING 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
