SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 FRONT SUSPENSIONFIG.65 FRONT STABILIZERFIG.66 FRONT DRIVE SHAFT (5MT)FIG.67 FRONT DRIVE SHAFT (6AT)FIG.68 FRONT SUSPENSION FRAMEFIG.69 REAR SUSPENSIONFIG.70 ROAD WHEEL/TIREFIG.71 STEERING WHEEL (5MT)FIG.72 STEERING WHEEL (6AT)FIG.73 STEERING COLUMNFIG.74 STEERING UNITFIG.75 PEDAL/PEDAL BRACKET (5MT)FIG.76 PEDAL/PEDAL BRACKET (6AT)FIG.77 BRAKE MASTER CYLINDERFIG.78 BRAKE PIPINGFIG.79 ANTILOCK BRAKE SYSTEMFIG.80 FRONT WHEEL BRAKEFIG.81 REAR WHEEL BRAKEFIG.82 PARKING BRAKE

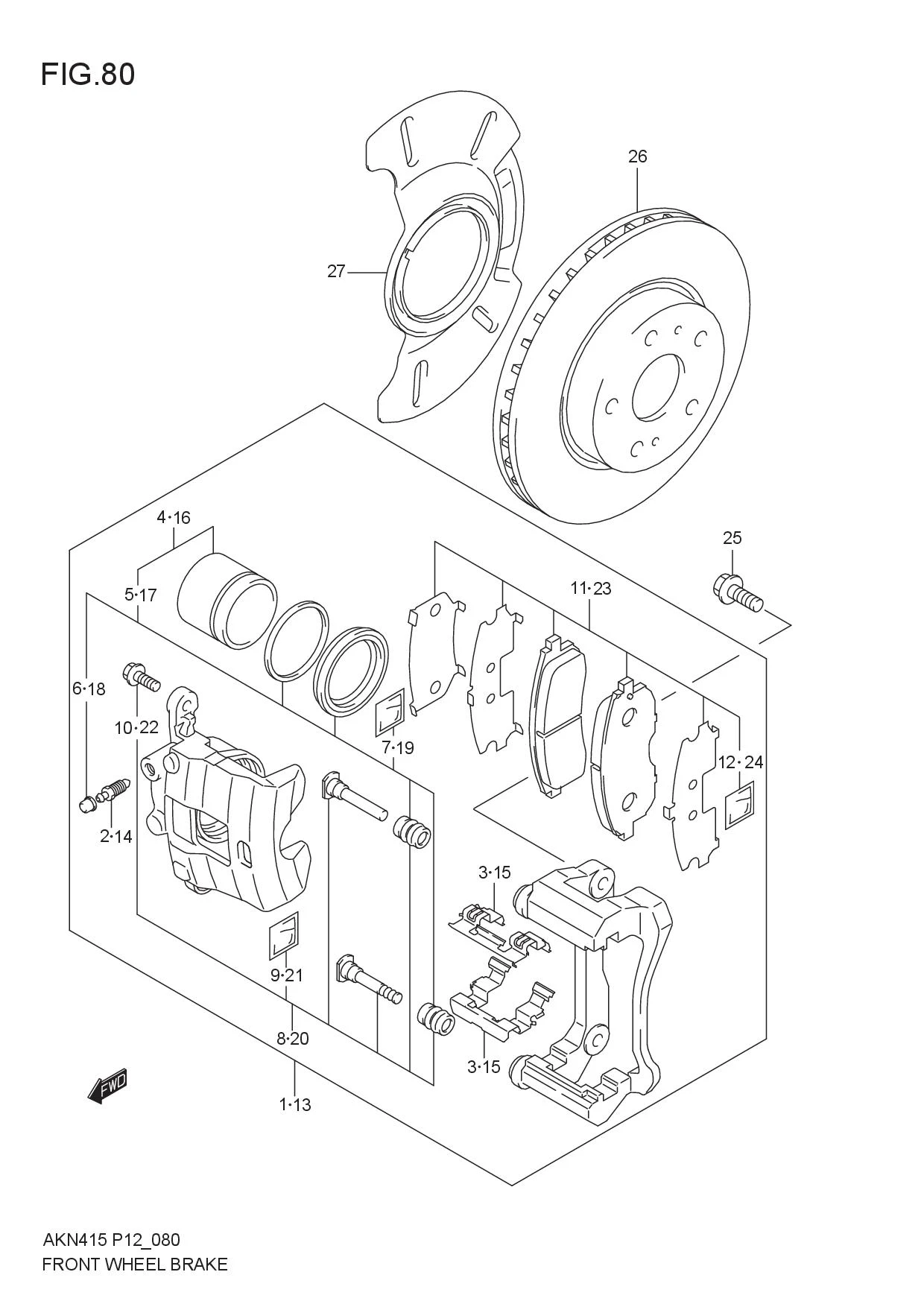

FIG.80 FRONT WHEEL BRAKE

FIG.80 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101M65M00-000 CALIPER ASSY,FRONT BRAKE,RH 1 Rp2.719.000
2 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
3 55234M55K00-000 .SPRING PAD 2 Rp75.500
4 55820M55K00-000 .PISTON/SEAL SET 1 Rp278.500
5 55840M55K01-000
SUB: 55830M55K00-000		 ..SEAL SET 1 Rp119.000
6 55156M55K00-000 ...DUST CAP 1 Rp5.500
7 DISCONTINUE
SUB: 99000M25020-000		 ...GREASE SACHET 1 -
8 55850M55K01-000
SUB: 55840M55K00-000		 .SLIDING PIN SET 1 Rp157.500
9 DISCONTINUE
SUB: 99000M25020-000		 ..GREASE SACHET 1 -
10 55206M76G00-000 ..BOLT(PIN) 1 Rp21.000
11 55810M65M00-000 .PAD SET 1 Rp880.500
12 DISCONTINUE
SUB: 99000M25020-000		 ..GREASE SACHET 1 -
13 55102M65M00-000 CALIPER ASSY,FRONT BRAKE,LH 1 Rp2.719.000
14 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
15 55234M55K00-000 .SPRING PAD 2 Rp75.500
16 55820M55K00-000 .PISTON/SEAL SET 1 Rp278.500
17 55840M55K01-000
SUB: 55830M55K00-000		 ..SEAL SET 1 Rp119.000
18 55156M55K00-000 ...DUST CAP 1 Rp5.500
19 DISCONTINUE
SUB: 99000M25020-000		 ...GREASE SACHET 1 -
20 55850M55K01-000
SUB: 55840M55K00-000		 .SLIDING PIN SET 1 Rp157.500
21 DISCONTINUE
SUB: 99000M25020-000		 ..GREASE SACHET 1 -
22 55206M76G00-000 ..BOLT(PIN) 1 Rp21.000
23 55810M65M00-000 .PAD SET 1 Rp880.500
24 DISCONTINUE
SUB: 99000M25020-000		 .GREASE SACHET 1 -
25 55164M74L00-000 BOLT,BRAKE CALIPER 4 Rp17.000
26 55311M55K01-000
SUB: 55311M55K00-000		 DISC,FRONT BRAKE 2 Rp613.000
27 55321M65M10-000 COVER,BRAKE DISC DUST 2 Rp55.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
