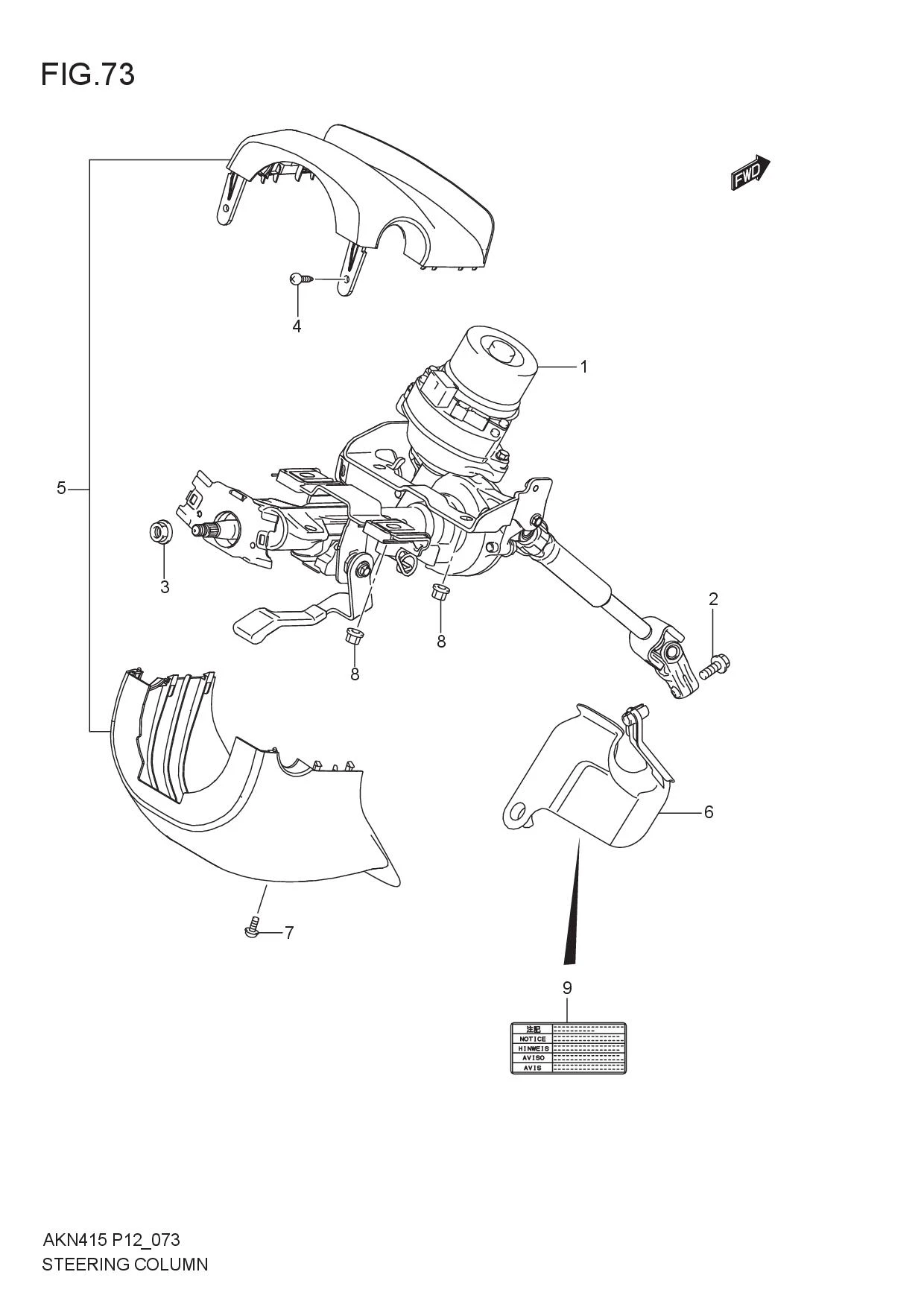

FIG.73 STEERING COLUMN

FIG.73 STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M65M43-000
SUB: 48200M65M40-000		 COLUMN ASSY, COLPS STEERING 1 Rp28.663.000
2 09117M08111-000 BOLT 1 Rp8.500
3 09159-12001-000 NUT 1 Rp90.500
4 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 2 Rp3.500
5 48400M61M10-5PK COVER ASSY, STEERING COLUMN (BLACK) 1 Rp142.500
6 48481M61M01-000 COVER, STEERING JOINT 1 Rp25.500
7 09136M05030-000 SCREW 1 Rp4.500
8 09159-08127-000
SUB: 09159-08069-000		 NUT 4 Rp11.000
9 DISCONTINUE
SUB: 79172-80G02-000		 LABEL, STEERING JOINT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
