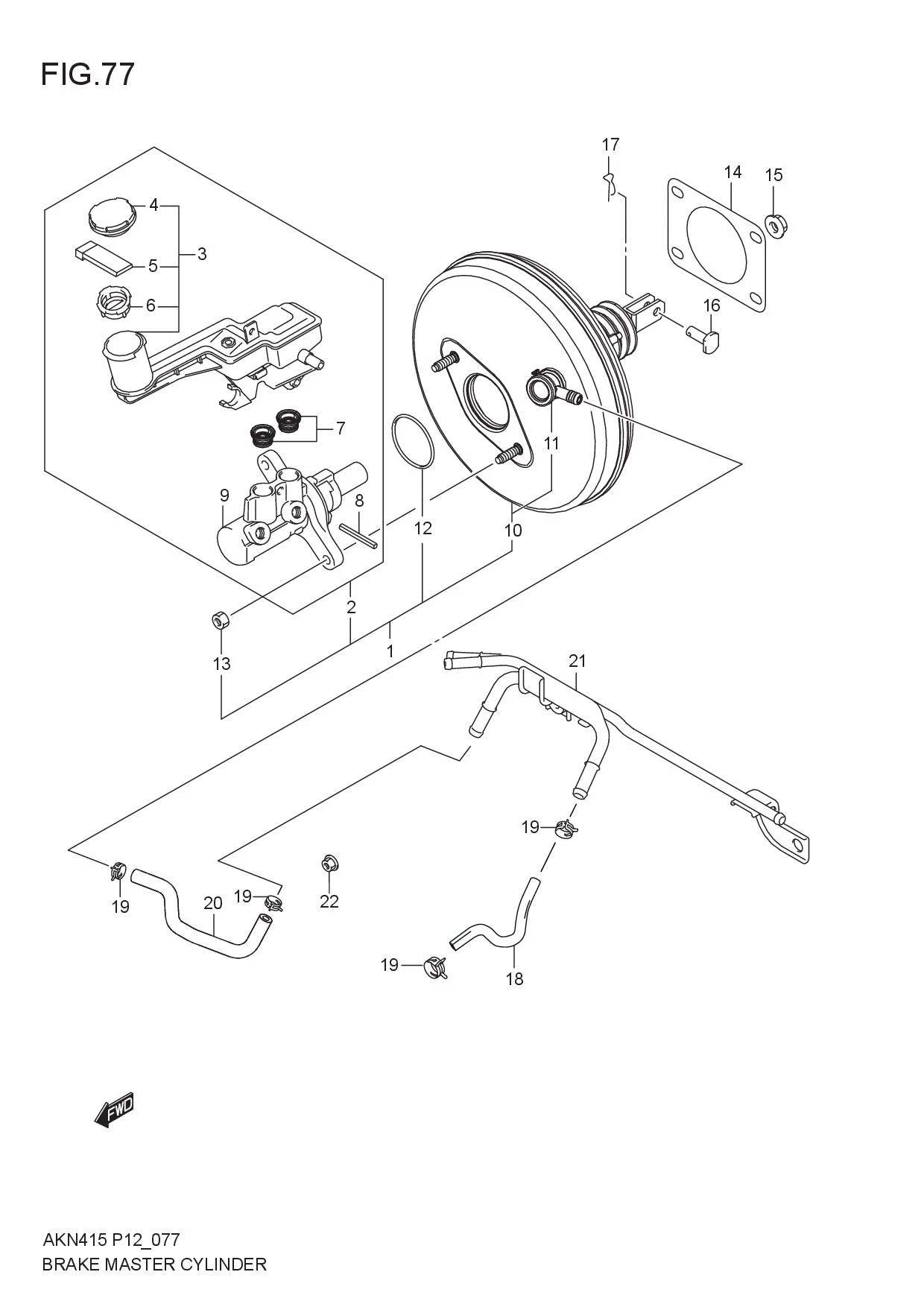

FIG.77 BRAKE MASTER CYLINDER

FIG.77 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51000M65M80-000 BOOSTER MASTER CYLINDER ASSY 1 Rp3.859.000 5MT
1-1 51000M65M71-000
SUB: 51000M65M70-000		 BOOSTER MASTER CYLINDER ASSY 1 Rp3.830.000 6AT
2-1 51100M65M71-000
SUB: 51100M65M70-000		 .CYLINDER ASSY, BRAKE MASTER 1 Rp3.157.500 6AT
2-2 51100M65M80-000 .CYLINDER ASSY, BRAKE MASTER 1 Rp3.167.500 5MT
3-1 51200M65M70-000 ..RESERVOIR ASSY BRAKE MASTER 1 Rp1.274.500 6AT
3-2 51200M65M80-000 ..RESERVOIR ASSY BRAKE MASTER 1 Rp1.264.500 5MT
4 51220M74L00-000 ...CAP, RESERVOIR 1 Rp65.000
5 DISCONTINUE
SUB: 51230M76G00-000		 ...LEVEL INDICATOR ASSY 1 -
6 51240M67LA0-000 ...FILTER, RESERVOIR 1 Rp51.500
7 51232M74L00-000 ..GROMMET 2 Rp37.500
8 51233M65J00-000 ..PIN 1 Rp29.500
9 51110M65M70-000 ..MASTER CYLINDER ASSY W/O RESERVOIER 1 Rp1.843.000
10 51300M65M70-000 .BOOSTER ASSY,BRAKE MASTER 1 Rp1.901.000
11 51320M76A20-000 ..CHECK VALVE ASSY 1 Rp19.000
12 51311M68K00-000 .O-RING 1 Rp10.500
13 08361-1508A-000 .NUT 2 Rp20.500
14-1 51132M79G10-000
SUB: 51132M79G00-000		 PACKING,BRAKE MASTER CYLINDER 1 Rp5.500
14-2 51132M79G10-000 PACKING, BRAKE MASTER CYLINDER 1 Rp5.500
15 09159-08127-000
SUB: 09159-08069-000		 NUT,BRAKE MASTER CYLINDER 4 Rp11.000
16 51120M60M00-000 PIN,BRAKE MASTER CYLINDER 1 Rp10.500
17 09385M08L01-000 CLIP,BRAKE MASTER PIN 1 Rp9.000
18 51011M65M20-000 HOSE,VACUUM PIPE TO INTK 1 Rp44.500
19 09401M15418-000 CLAMP, BRAKE VACUUM HOSE 4 Rp6.000
20 51020M65M10-000 HOSE COMP,VACUUM BSTR TO PIPE 1 Rp45.500
21 51050M65M50-000 PIPE COMP,VACUUM AND EVAP 1 Rp239.500
22 08316-1006A-000
SUB: 08316B1006AN000		 NUT, BRAKE VACUUM PIPE 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
