SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 FRONT SUSPENSIONFIG.65 FRONT STABILIZERFIG.66 FRONT DRIVE SHAFT (5MT)FIG.67 FRONT DRIVE SHAFT (6AT)FIG.68 FRONT SUSPENSION FRAMEFIG.69 REAR SUSPENSIONFIG.70 ROAD WHEEL/TIREFIG.71 STEERING WHEEL (5MT)FIG.72 STEERING WHEEL (6AT)FIG.73 STEERING COLUMNFIG.74 STEERING UNITFIG.75 PEDAL/PEDAL BRACKET (5MT)FIG.76 PEDAL/PEDAL BRACKET (6AT)FIG.77 BRAKE MASTER CYLINDERFIG.78 BRAKE PIPINGFIG.79 ANTILOCK BRAKE SYSTEMFIG.80 FRONT WHEEL BRAKEFIG.81 REAR WHEEL BRAKEFIG.82 PARKING BRAKE

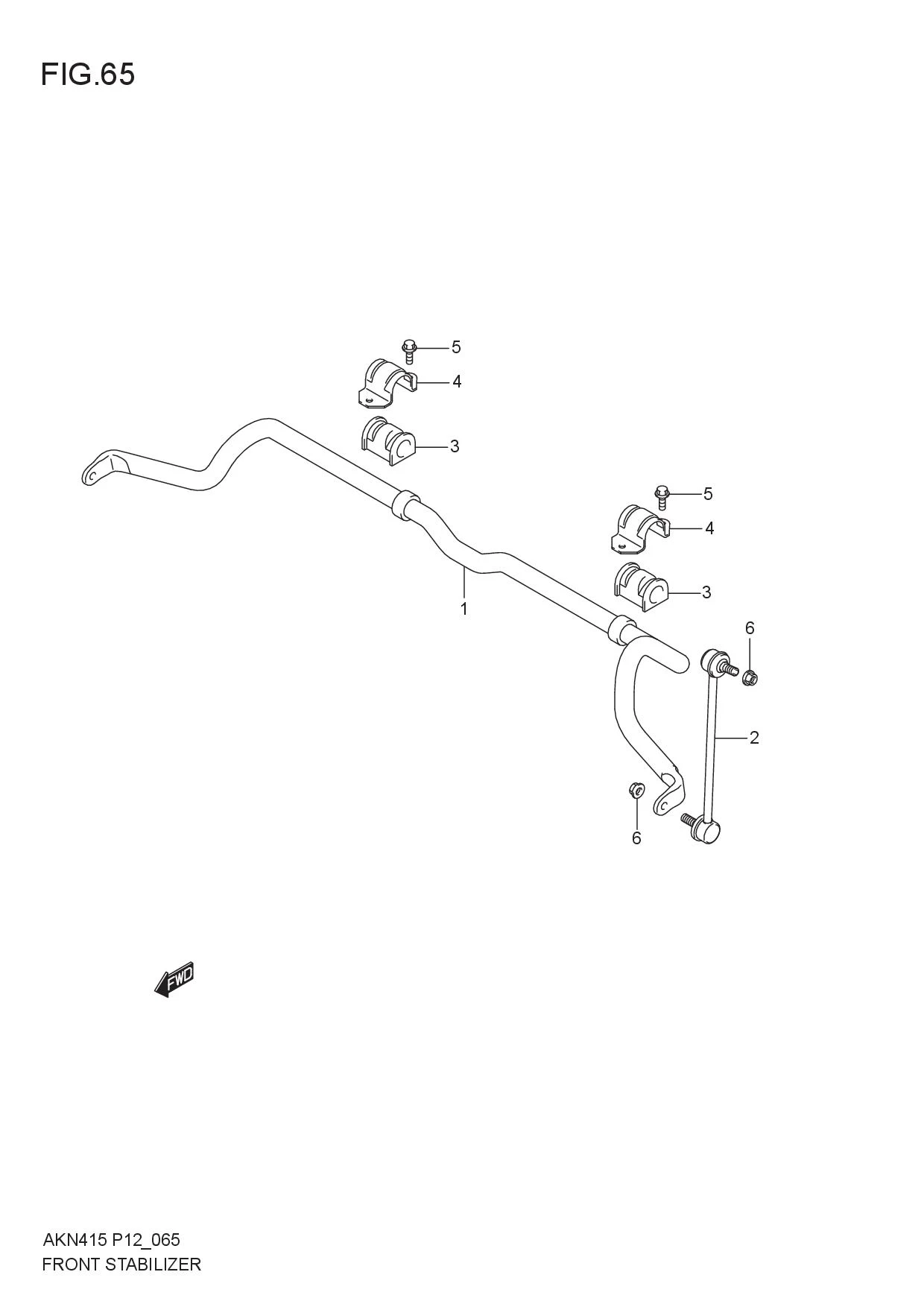

FIG.65 FRONT STABILIZER

FIG.65 FRONT STABILIZER
No No. Part Description Qty Price Per Pcs Remarks
1 42311M65M00-000 BAR, FRONT STABILIZER 1 Rp1.205.500
2 42420M55K02-000
SUB: 42420M55K10-000		 JOINT , FR STABILIZER BAR 2 Rp266.500
3 42431-54P00-000
SUB: 42431M54P00-000		 MOUNT, STABILIZER BAR 2 Rp106.500
4 42441M65M00-000 BRACKET, STABILIZER MOUNT 2 Rp34.000
5 42442M76M00-000 BOLT, FRONT STABILIZER MOUNT 4 Rp7.000
6 08316-1010A-000
SUB: 08316B1010AN000		 NUT, STABILIZER JOINT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
