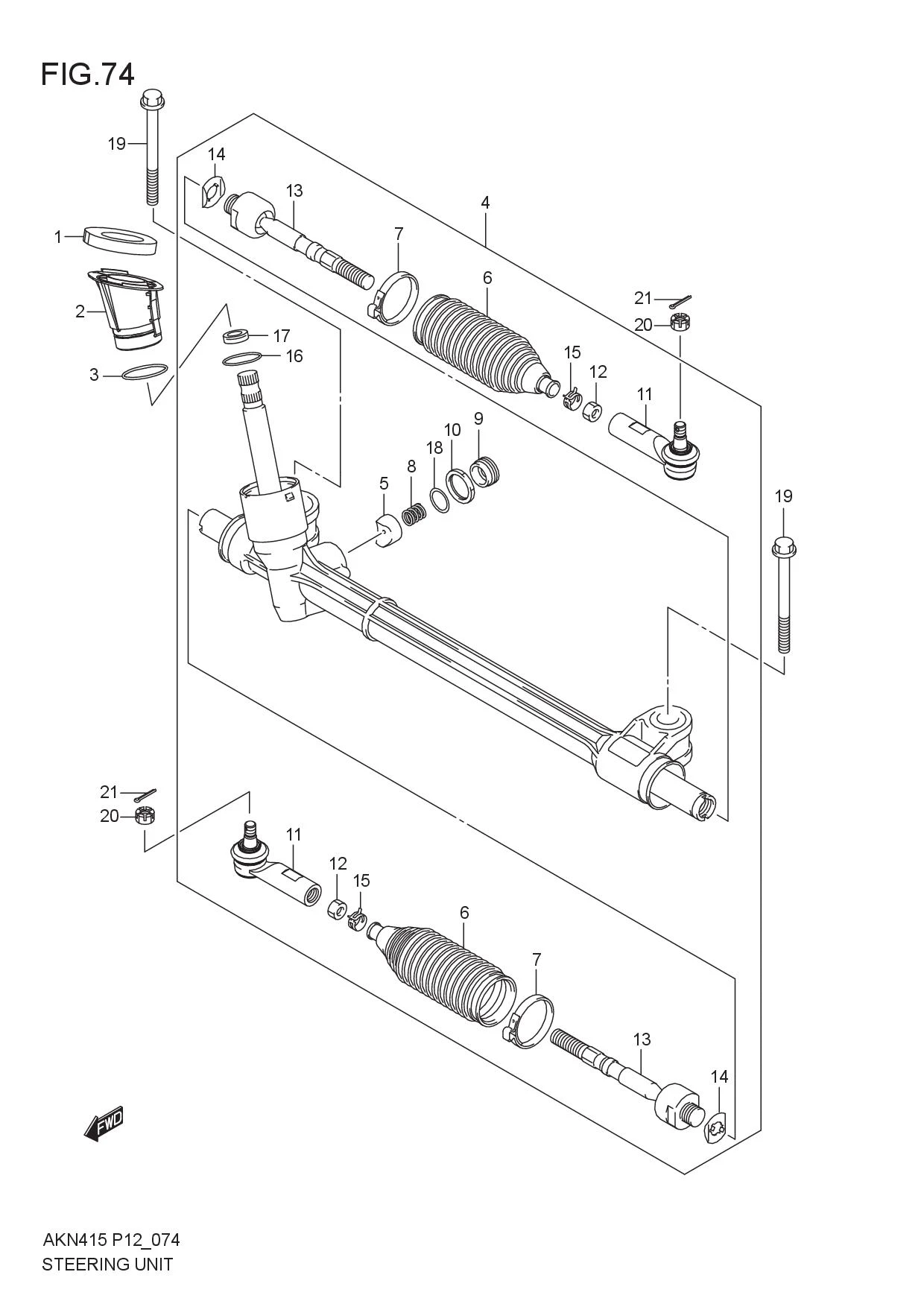

FIG.74 STEERING UNIT

FIG.74 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48451M61M00-000 PACKING, STRG GEAR 1 Rp51.500
2 48452M61M00-000 COVER, STRG GEAR 1 Rp68.500
3 09280M46001-000 O-RING 1 Rp5.500
4 48500M65M01-000
SUB: 48500M65M00-000		 BOX ASSY, STRG GEAR 1 Rp4.852.000
5 48592M65M00-000 .YOKE ASSY 1 Rp394.500
6 48571M74L00-000 .BELLOWS 2 Rp351.000
7 48575M74L00-000 .CLAMP 2 Rp57.000
8 48591M74L00-000 .SPRING HELICAL 1 Rp9.500
9 48592M74L00-000 .PLUG YOKE 1 Rp54.000
10 48593M74L00-000 .LOCK NUT 1 Rp30.000
11 48810M65M00-000 .TIE ROD ASSY 2 Rp388.500
12 48817M74L00-000 .NUT HEX 2 Rp18.500
13 48830M65M10-000
SUB: 48830M65M00-000		 .BALL JOINT INNER 2 Rp209.500
14 48841M74L00-000 .WASHER 2 Rp17.500
15 48871M74L00-000 .CLIP 2 Rp19.000
16 48595M74L00-000 .RING RETAINER 1 Rp36.000
17 48594M74L00-000 .SEAL DUST 1 Rp31.000
18 90208M22002-000 .SPRING CONED DISC 1 Rp9.000
19 09116-12010-000 BOLT 2 Rp60.000
20 09140-12039-000
SUB: 09140B12039N000		 NUT 2 Rp6.500
21 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
