SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 FRONT SUSPENSIONFIG.65 FRONT STABILIZERFIG.66 FRONT DRIVE SHAFT (5MT)FIG.67 FRONT DRIVE SHAFT (6AT)FIG.68 FRONT SUSPENSION FRAMEFIG.69 REAR SUSPENSIONFIG.70 ROAD WHEEL/TIREFIG.71 STEERING WHEEL (5MT)FIG.72 STEERING WHEEL (6AT)FIG.73 STEERING COLUMNFIG.74 STEERING UNITFIG.75 PEDAL/PEDAL BRACKET (5MT)FIG.76 PEDAL/PEDAL BRACKET (6AT)FIG.77 BRAKE MASTER CYLINDERFIG.78 BRAKE PIPINGFIG.79 ANTILOCK BRAKE SYSTEMFIG.80 FRONT WHEEL BRAKEFIG.81 REAR WHEEL BRAKEFIG.82 PARKING BRAKE

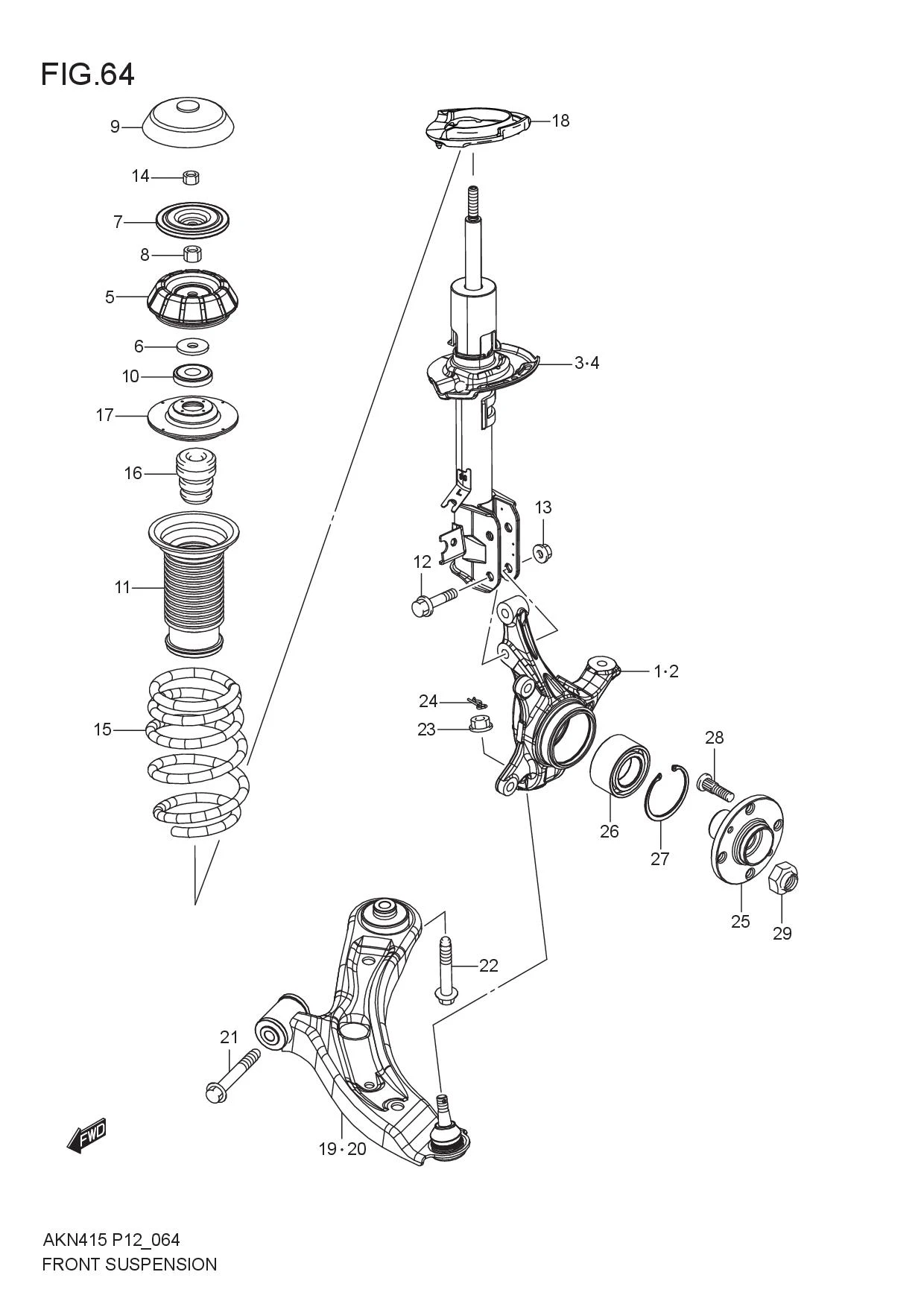

FIG.64 FRONT SUSPENSION

FIG.64 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111M65M50-000 KNUCKLE, STEERING, RH 1 Rp1.424.000
2 45151M65M50-000 KNUCKLE, STEERING, LH 1 Rp1.424.000
3 41601M65M51-000 STRUT ASSY, FRONT SPNSN, RH 1 Rp2.333.000
4 41602M65M51-000 STRUT ASSY, FRONT SPNSN, LH 1 Rp2.333.000
5 41710M61M00-000 SUPPORT, FRONT STRUT 2 Rp1.125.000
6 41711-66M00-000 PLATE, STRUT BEARING 2 Rp91.500
7 41720M55K00-000 STOPPER, FRONT STRUT REBOUND 2 Rp123.000
8 09140-12050-000 NUT, STRUT SUPPORT LOWER 2 Rp21.000
9 41724M63J00-000 CAP, STRUT ROD 2 Rp34.500
10 41742M57K10-000 BEARING, FRONT STRUT 2 Rp81.000
11 41931M65M00-000 COVER, STRUT DUST 2 Rp133.500
12 09103-14032-000 BOLT, STRUT BRACKET 4 Rp47.500
13 09159-14031-000 NUT, STRUT BRACKET 4 Rp37.000
14 08310-0012A-000 NUT, STRUT SUPPORT UPPER 2 Rp17.500
15 41111M65M00-000 SPRING, FRONT COIL 2 Rp1.021.500
16 42111M65M00-000 STOPPER, FRONT BUMP 2 Rp240.500
17 41230M66M00-000 SEAT, FRONT SPRING UPPER 2 Rp102.500
18 41212M65M00-000 SEAT, FRONT SPRING LOWER 2 Rp91.500
19 45201M65M01-000
SUB: 45201M65M00-000		 ARM ASSY, FRONT SUSPENSION, RH 1 Rp615.500
20 45202M65M00-000 ARM ASSY, FRONT SUSPENSION, LH 1 Rp615.500
21 45264-61M20-000
SUB: 45264-61M00-000		 BOLT, SPNSN ARM FR BUSHING 2 Rp87.000
22 09135-14018-000 BOLT, SPNSN ARM RR BUSHING 2 Rp70.500
23 09159-14033-000 NUT, SPNSN ARM 2 Rp25.500
24 09385M14001-000 PIN, SPNSN ARM 2 Rp8.000
25 43421M55K01-000 HUB, FRONT WHEEL 2 Rp552.000
26 43440M55K20-000
SUB: 43440M55K00-000		 BEARING, FRONT WHEEL 2 Rp812.500
27 09381-84004-000 CIRCLIP, FRONT WHEEL BEARING 2 Rp53.500
28 43423M79G00-000 BOLT, FRONT HUB 10 Rp22.500
29 43459M65J10-000 NUT, DRIVE SHAFT 2 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
