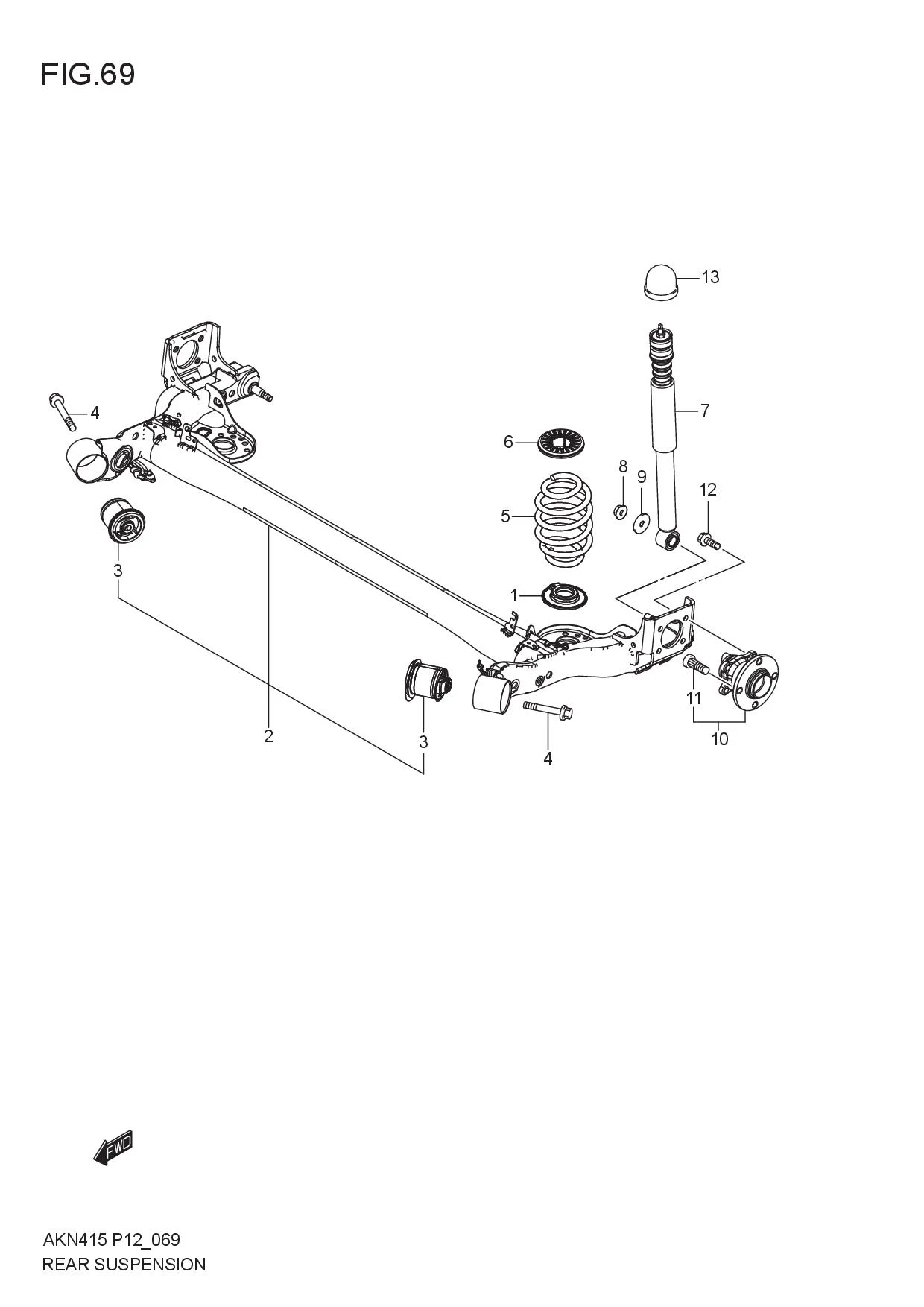

FIG.69 REAR SUSPENSION

FIG.69 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312M70L00-000 SEAT, REAR SPRING LOWER 2 Rp29.500
2 46500M65M81-000
SUB: 46500M65M51-000		 BEAM ASSY, REAR SPNSN 1 Rp7.651.500
3 46221M65M00-000 BUSHING, TRAILING ARM 2 Rp340.000
4 09135M12020-000 BOLT, RR SPNSN 2 Rp92.500
5 41311M65M00-000 SPRING, REAR COIL 2 Rp398.000
6 41341M55K00-000 SEAT, REAR SPRING UPPER 2 Rp33.000
7 41800M65M50-000 ABSORBER ASSY, REAR SHOCK 2 Rp1.209.000
8 46291-68H00-000 NUT, REAR SHK ABS LOWER 2 Rp42.000
9 09160-12109-000 WASHER, REAR SHK ABS LOWER 2 Rp30.500
10 43402M55K01-000
SUB: 43402M55K00-000		 HUB ASSY, WHEEL 2 Rp2.255.000
11 43423M79G00-000 .BOLT, FRONT HUB 10 Rp22.500
12 43403M74L00-000 BOLT, REAR HUB 8 Rp23.500
13 41951M61M00-000 CAP, REAR SHOCK ABSORBER 2 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
