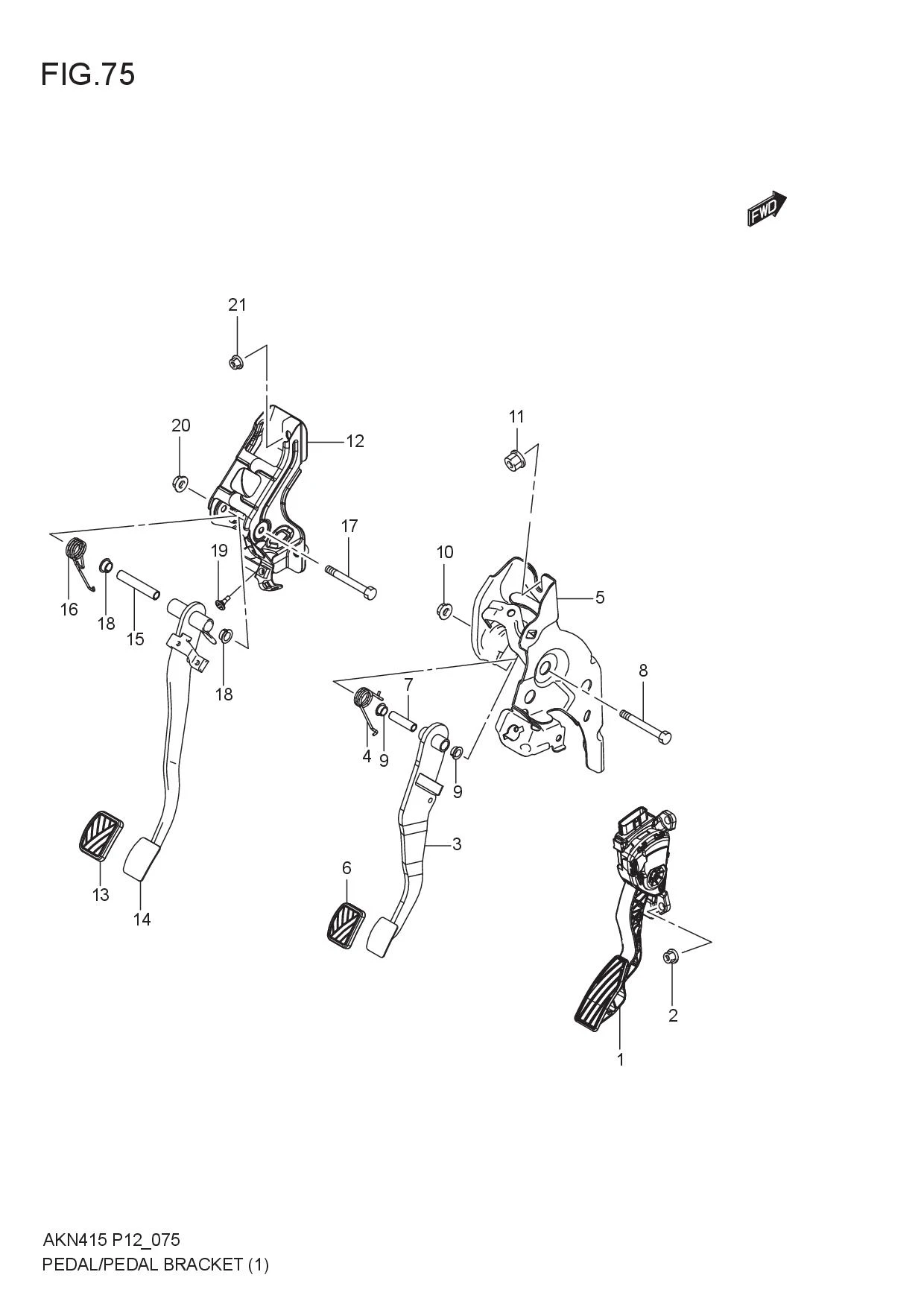

FIG.75 PEDAL/PEDAL BRACKET (5MT)

FIG.75 PEDAL/PEDAL BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M74L01-000 PEDAL ASSY, ACCELERATOR 1 Rp962.500
2 08316-1006A-000
SUB: 08316B1006AN000		 NUT, 3 Rp2.000
3 49610M65M00-000 PEDAL , BRAKE 1 Rp172.000
4 49691M65M00-000 SPRING, BRAKE PEDAL 1 Rp18.000
5 49710M61M00-000 BRACKET , BRAKE PEDAL 1 Rp158.000
6 49751M58J00-000 PAD, PEDAL 1 Rp9.500
7 09180-10121-000 SPACER, BRAKE PEDAL SHAFT 1 Rp38.500
8 09100-10226-000 BOLT 1 Rp19.500
9 09306M13004-000
SUB: 09307M13005-000		 BUSH, PEDAL BOSS 2 Rp11.500
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
11 09159-08127-000
SUB: 09159M08153-000		 NUT 1 Rp11.000
12 49720M65M00-000 BRACKET , CLUTCH PEDAL 1 Rp160.000
13 49751M58J00-000 PAD, PEDAL 1 Rp9.500
14 49810M65M00-000 PEDAL , CLUTCH 1 Rp154.500
15 09180-10121-000 SPACER, PEDAL SHAFT 1 Rp38.500
16 49891M66M10-000 SPRING, CLUTCH PEDAL 1 Rp13.000
17 09100-10226-000 BOLT 1 Rp19.500
18 09306M13004-000
SUB: 09307M13005-000		 BUSH, PEDAL BOSS 2 Rp11.500
19 09321M06026-000 CUSHION, CLUTCH PEDAL STOP 1 Rp4.500
20 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
21 09159-08127-000
SUB: 09159M08153-000		 NUT, PEDAL BRACKET 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
