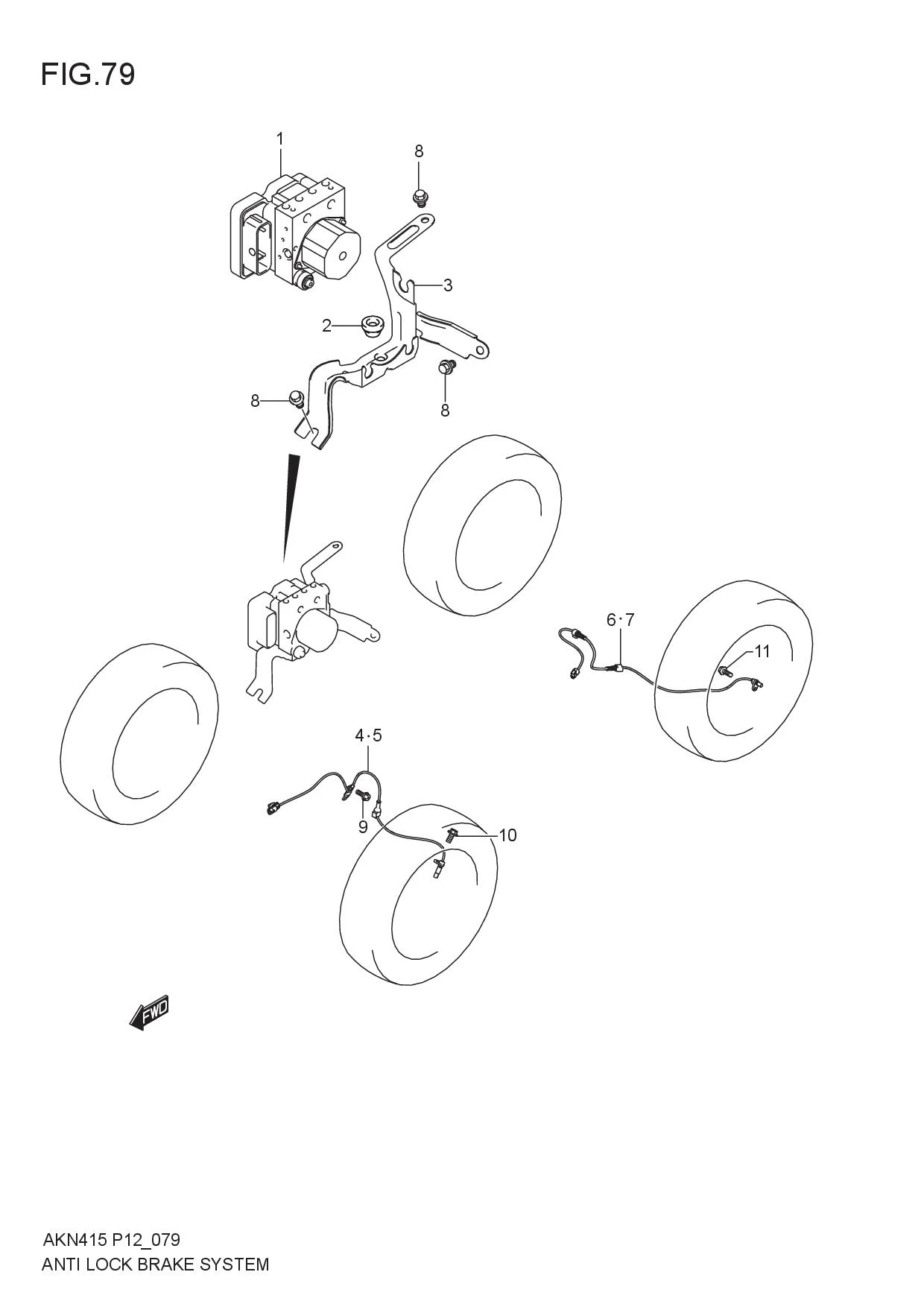

FIG.79 ANTILOCK BRAKE SYSTEM

FIG.79 ANTILOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56110M65M81-000 ACTUATOR S/ASSY, ABS 1 Rp12.371.500
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3 56160M65M00-000 BRACKET, ACTUATOR 1 Rp110.500
4 56210M65M00-000 SENSOR, FR WHEEL, R 1 Rp370.500
5 56220M65M00-000 SENSOR, FR WHEEL, L 1 Rp361.500
6 56310M65M00-000 SENSOR, RR WHEEL, R 1 Rp355.500
7 56320M65M00-000 SENSOR, RR WHEEL, L 1 Rp347.500
8 01551-0812A-000 BOLT, ACTUATOR BRACKET 3 Rp18.500
9 02162-0612A-000 BOLT, FR SENSOR HARNESS 2 Rp11.000
10 02162-0612A-000 BOLT, FR WHEEL SENSOR 2 Rp11.000
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, RR WHEEL SENSOR 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
