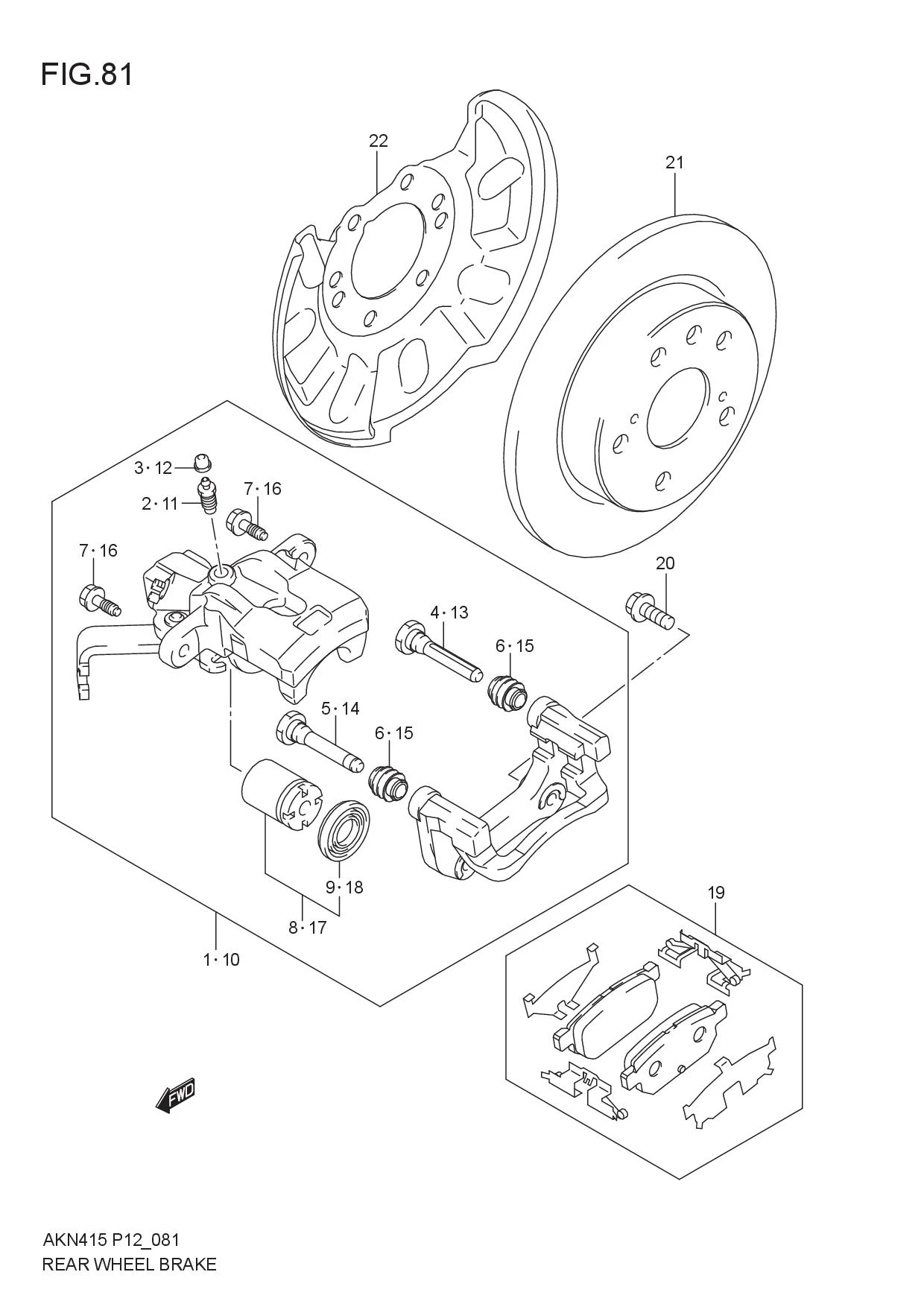

FIG.81 REAR WHEEL BRAKE

FIG.81 REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55401-68L01-999
SUB: 55401-68L02-000		 CALIPER ASSY,REAR BRAKE,R 1 Rp4.829.500
2 55151-78451-000
SUB: 55151B78451N000		 .PLUG,BLEEDER 2 Rp45.500
3 55156M66310-000 .CAP,BLEEDER PLUG 2 Rp23.500
4 55191-68L00-000 .PIN,D:9.9 1 Rp102.500
5 55192-68L00-000 .PIN,D:9.7 1 Rp114.500
6 55201-68L00-000 .BOOT 2 Rp70.000
7 55206-78452-000
SUB: 55206B78452N000		 .BOLT,PIN 2 Rp43.500
8 55890-68L01-000
SUB: 55890-68L00-000		 .PISTON / SEAL SET 1 Rp539.500
9 55880-68L01-000
SUB: 55880-68L00-000		 ..SEAL SET 1 Rp69.000
10 55402-68L01-999
SUB: 55402-68L02-000		 CALIPER ASSY,REAR BRAKE,L 1 Rp4.829.500
11 55151-78451-000
SUB: 55151B78451N000		 .PLUG,BLEEDER 2 Rp45.500
12 55156M66310-000 .CAP,BLEEDER PLUG 2 Rp23.500
13 55191-68L00-000 .PIN,D:9.9 1 Rp102.500
14 55192-68L00-000 .PIN,D:9.7 1 Rp114.500
15 55201-68L00-000 .BOOT 2 Rp70.000
16 55206-78452-000
SUB: 55206B78452N000		 .BOLT,PIN 2 Rp43.500
17 55890-68L01-000
SUB: 55890-68L00-000		 .PISTON / SEAL SET 1 Rp539.500
18 55880-68L01-000
SUB: 55880-68L00-000		 ..SEAL SET 1 Rp69.000
19 55800-68L22-000
SUB: 55800-68L20-000		 PAD SET 1 Rp1.097.500
20 DISCONTINUE
SUB: 09103-10373-000		 BOLT,BRAKE CALIPER 4 -
21 55611M65M00-000 DISC,REAR BRAKE 2 Rp1.035.000
22 55621M65M00-000 COVER,RR BK DISC DUST 2 Rp72.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
