Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

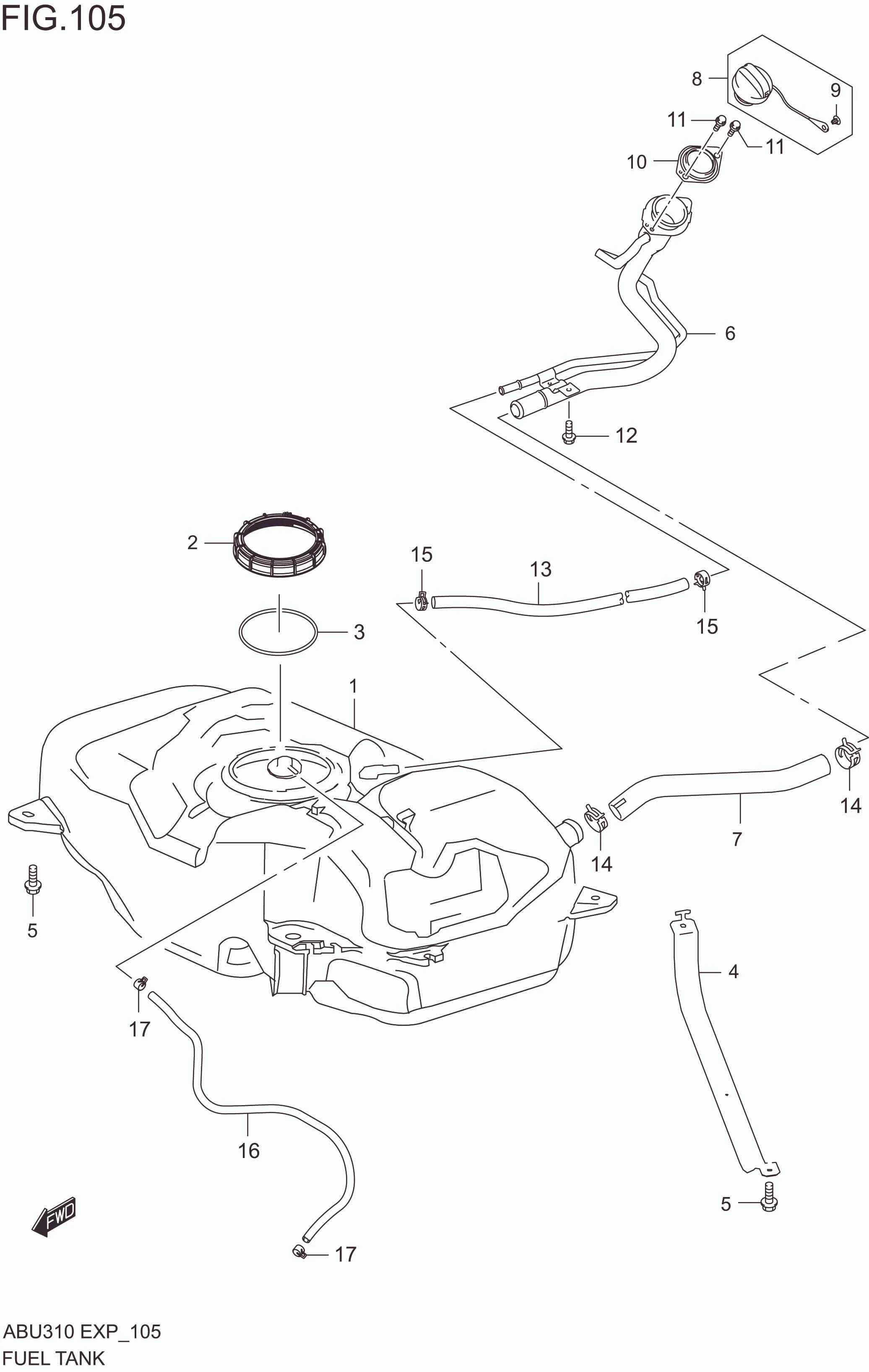

FUEL TANK

FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101M62S00-000 TANK, FUEL 1 Rp2.225.000
2 89191M62S00-000 NUT, FUEL PUMP LOCK 1 Rp452.500
3 89192M62S00-000 O-RING, FUEL PUMP 1 Rp181.500
4 89363M62S00-000 BELT, FUEL TANK SUPPORT 1 Rp80.000
5 89199M68P00-000 BOLT, FUEL TANK FIXER 4 Rp13.500
6 89210M62S10-000 NECK, FUEL FILLER 1 Rp810.000
7 89241M62S00-000 HOSE, FUEL TANK FILLER 1 Rp95.000
8 89260M62S00-000 CAP ASSY, FUEL FILLER 1 Rp305.500
9 89267M60M00-000 .CLIP, CAP TETHER 1 Rp14.000
10 89285M58J00-000
SUB: 89285-58J00-000		 PACKING,FUEL FILLER 1 Rp13.500
11 09116-05023-000 BOLT (5X20) 2 Rp18.500
12 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
13 09355M11190-280 HOSE, FUEL TANK BREATHER 1 Rp60.000
14 DISCONTINUE
SUB: 09401-31406-000		 CLIP 2 -
15 09401M16L01-000 CLIP 2 Rp9.000
16 09355M56130-540 HOSE, FUEL EVAP 1 Rp65.000
17 09401M11432-000 CLIP 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
