Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

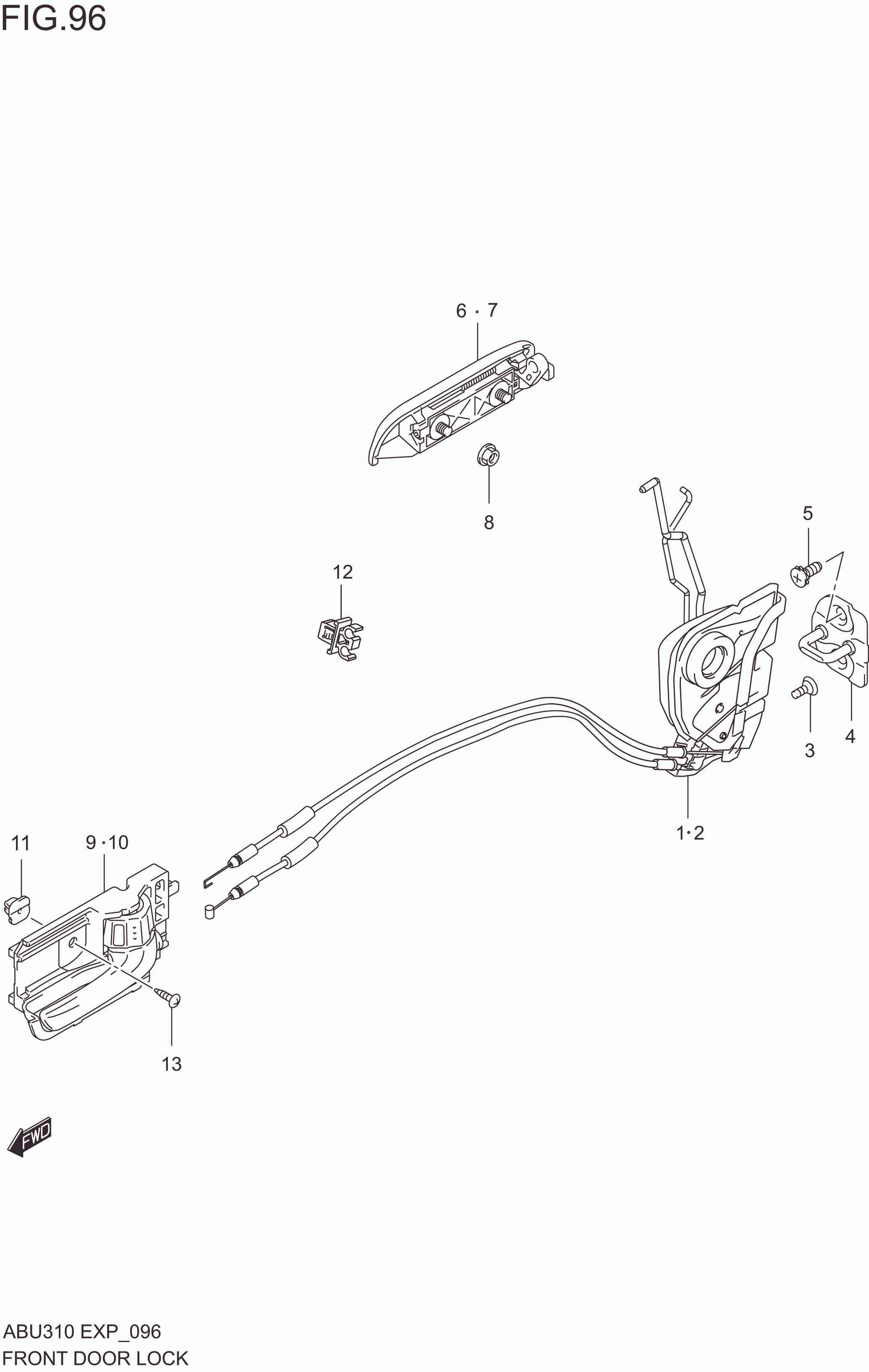

FRONT DOOR LOCK

FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82201M62S00-000 LATCH ASSY, FRONT DOOR RH 1 Rp278.500 N/KEYLESS ENTRY
2 82202M62S00-000 LATCH ASSY, FRONT DOOR LH 1 Rp278.500 N/KEYLESS ENTRY
3 09137-06032-000 SCREW 6 Rp16.500
4 82610M82P00-000 STRIKER, DOOR LATCH 2 Rp44.500
5 09137-08014-000
SUB: 09137-08004-000		 SCREW 4 Rp23.000
6-1 82801M69R50-26U HANDLE ASSY, SIDE DOOR OUT RH (WHITE) 1 Rp165.000
6-2 82801M69R50-ZTN HANDLE ASSY, SIDE DOOR OUT RH (GREY) 1 Rp149.000
6-3 82801M69R50-ZZS HANDLE ASSY, SIDE DOOR OUT RH (BLUE) 1 Rp149.000
6-4 82801M69R50-ZZT HANDLE ASSY, SIDE DOOR OUT RH (ORANGE) 1 Rp149.000
6-5 82801M69R50-Z2S HANDLE ASSY, SIDE DOOR OUT RH (SILVER) 1 Rp149.000
6-6 82801M69R50-Z4Q HANDLE ASSY, SIDE DOOR OUT RH (RED) 1 Rp149.000
7-1 82802M69R50-26U HANDLE ASSY, SIDE DOOR OUT LH (WHITE) 1 Rp165.000
7-6 82802M69R50-Z4Q HANDLE ASSY, SIDE DOOR OUT LH (RED) 1 Rp149.000
7-5 82802M69R50-Z2S HANDLE ASSY, SIDE DOOR OUT LH (SILVER) 1 Rp149.000
7-4 82802M69R50-ZZT HANDLE ASSY, SIDE DOOR OUT LH (ORANGE) 1 Rp149.000
7-3 82802M69R50-ZZS HANDLE ASSY, SIDE DOOR OUT LH (BLUE) 1 Rp149.000
7-2 82802M69R50-ZTN HANDLE ASSY, SIDE DOOR OUT LH (GREY) 1 Rp149.000
8 08316-1006A-000 NUT (6X12) 4 Rp2.000
9 83110M62S00-000 HANDLE, SIDE DOOR INSIDE RH 1 Rp77.500
10 83130M62S00-000 HANDLE, SIDE DOOR INSIDE LH 1 Rp77.500
11 83119M75J00-000 NUT, FRONT DOOR INSIDE HANDLE 2 Rp5.500
12 83271M66R00-000 CLIP, DOOR INSIDE HANDLE CABLE 2 Rp6.500
13 09132-05058-000 SCREW (5X12) 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
