Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

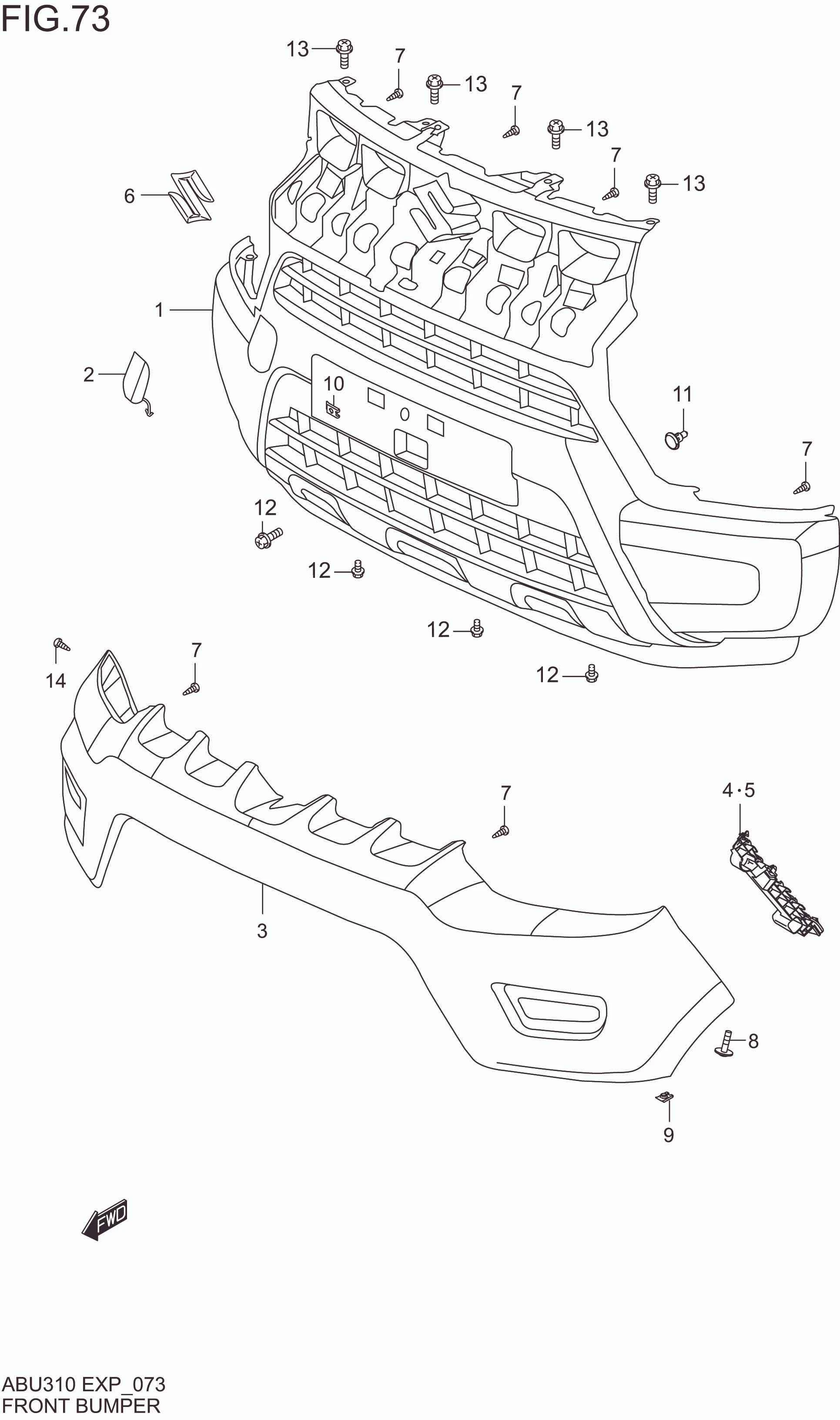

FRONT BUMPER

FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711M62S00-5PK BUMPER, FRONT LOWER (BLACK) 1 Rp625.000
2 71712M62S00-5PK CAP, TOWING HOOK (BLACK) 1 Rp17.000
3 71721M62S00-799 BUMPER, FRONT UPPER (PRIMARY) 1 Rp1.902.000
4 71731M62S00-000 HOLDER, FR BUMPER SIDE RH 1 Rp31.500
5 71732M62S00-000 HOLDER, FR BUMPER SIDE LH 1 Rp31.500
6 77811M54GC0-0PG EMBLEM, MARK(S) (CHROME) 1 Rp85.500
7 09132M05063-000 SCREW 9 Rp5.500
8 09136-05068-000 SCREW 2 Rp15.000
9 09148M05071-000 NUT 2 Rp6.000
10 09148-06022-000 NUT 2 Rp27.000
11 09409M10L04-000 CLIP 2 Rp4.000
12 02162-0616A-000 BOLT 4 Rp3.000
13 02162-0616A-000 BOLT 4 Rp3.000
14 03541-0512A-000 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
