Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

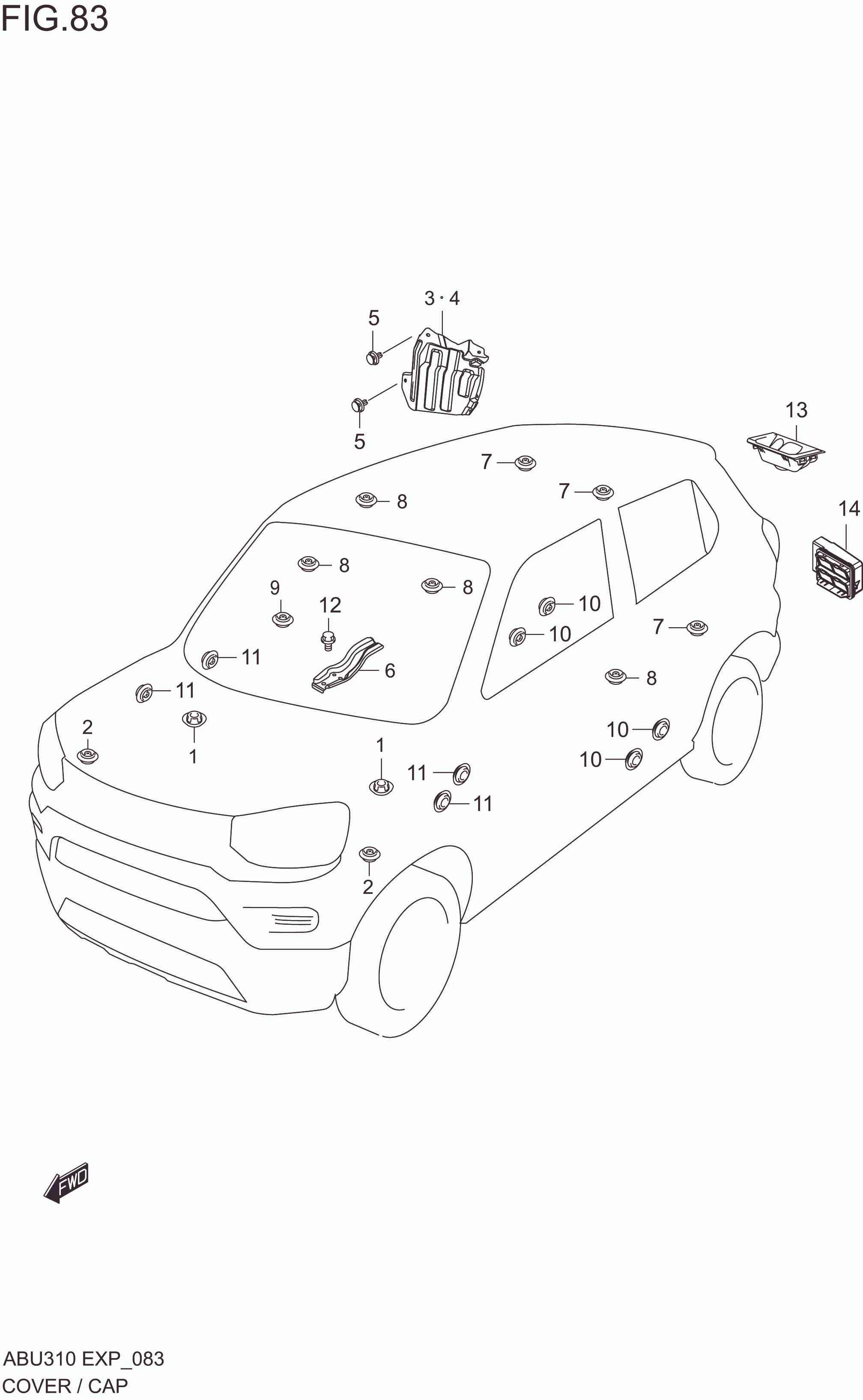

COVER/CAP

COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72397M67L00-000 CAP, DASH LOWER 2 Rp7.000
2 09250-30002-000
SUB: 09250-30011-000		 CAP, APRON FRONT EXTENSION 2 Rp5.500
3 72811M62S00-000 LINING, REAR WHEEL HSG RH 1 Rp31.000
4 72821M62S00-000 LINING, REAR WHEEL HSG LH 1 Rp31.000
5 09409M07L01-000 CLIP 8 Rp5.000
6 75421M62S00-000 BRACKET, JACK 1 Rp35.500
7 75431-75J00-000 CAP,REAR FLOOR DRAIN 3 Rp8.000
8 75431-75J00-000 CAP,MAIN FLOOR DRAIN 4 Rp8.000
9 09250M15022-000 CAP (OD:23.5) 1 Rp6.500
10 09250M15022-000 CAP (OD:23.5) 4 Rp6.500
11 09250M17005-000 CAP (OD:25.5) 4 Rp5.500
12 01550-0610B-000
SUB: 01550-0610A-000		 BOLT 3 Rp3.000
13 75471M62S00-000 CAP, TAIL END MEMBER 1 Rp25.500
14 77330M74L21-000 OUTLET, VENTILATOR 1 Rp63.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
