Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

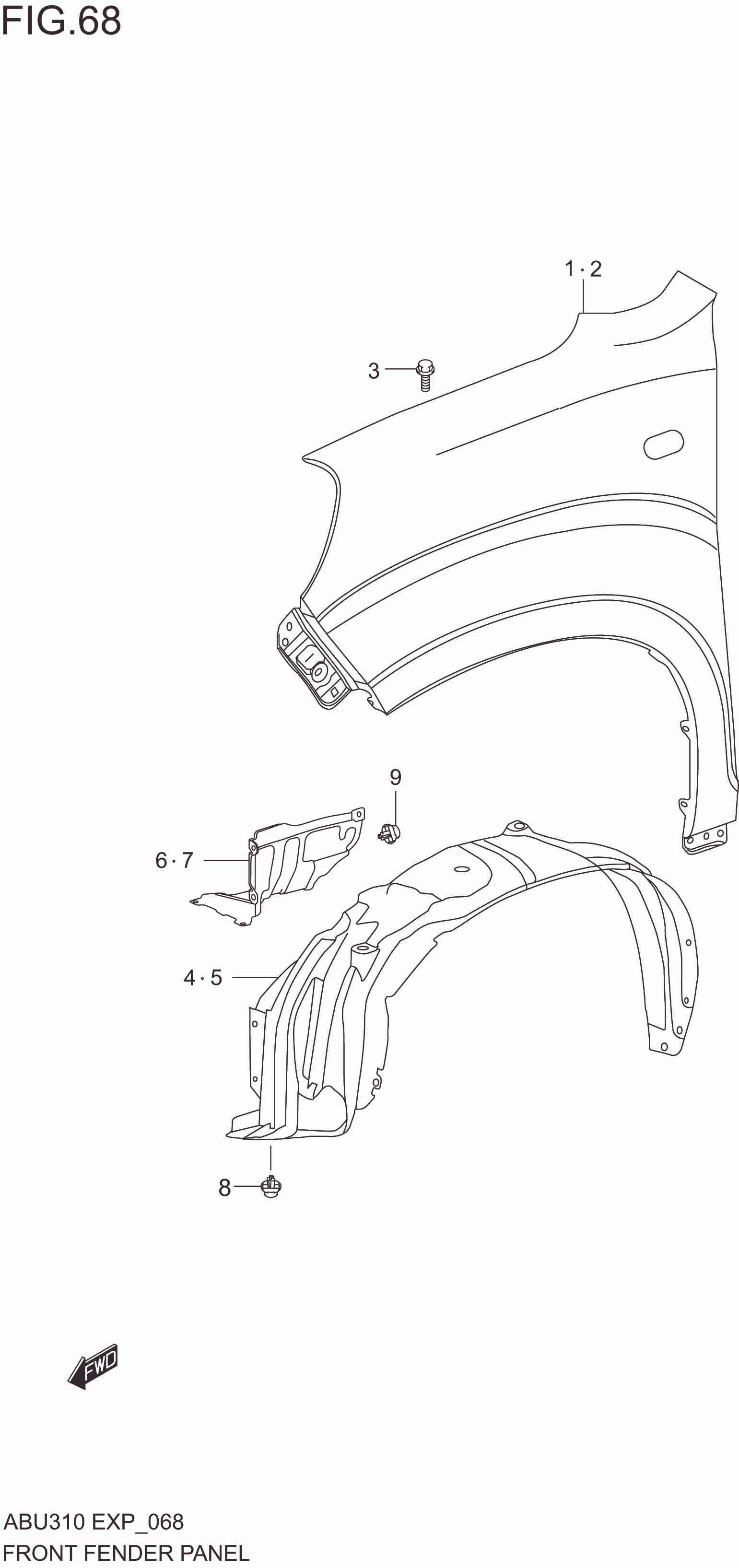

FRONT FENDER PANEL

FRONT FENDER PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57611M62S00-000 PANEL, FRONT FENDER RH 1 Rp964.000
2 57711M62S00-000 PANEL, FRONT FENDER LH 1 Rp964.000
3 01550-0612A-000 BOLT 14 Rp3.500
4 72321M62S00-000 LINING, FRONT FENDER RH 1 Rp158.500
5 72322M62S00-000 LINING, FRONT FENDER LH 1 Rp158.500
6 72393M62S00-000 COVER, SPLASH RH 1 Rp41.500
7 72394M62S00-000 COVER, SPLASH LH 1 Rp41.500
8 09409M07L01-000 CLIP 22 Rp5.000
9 09409M07L01-000 CLIP 10 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
