Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

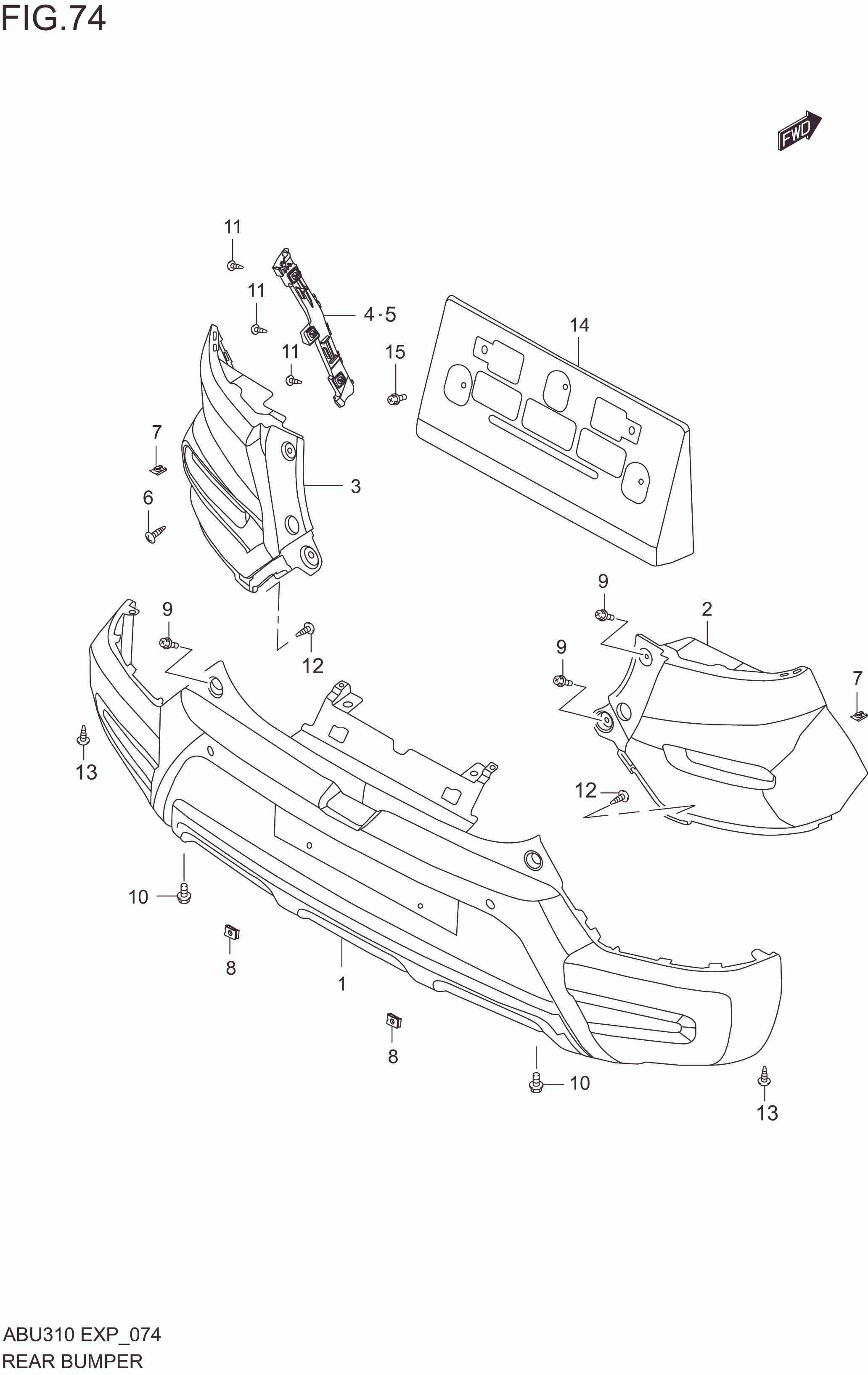

REAR BUMPER

REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71089M62S10-5PK BUMPER REAR, WITH PARK SENSOR BLACK) 1 Rp691.000
2 71821M62S00-799 BUMPER, REAR SIDE RH (PRIMARY) 1 Rp938.000
3 71822M62S00-799 BUMPER, REAR SIDE LH (PRIMARY) 1 Rp938.000
4 71831M62S00-000 HOLDER, RR BUMPER SIDE RH 1 Rp35.500
5 71832M62S00-000 HOLDER, RR BUMPER SIDE LH 1 Rp35.500
6 09132M05063-000 SCREW 2 Rp5.500
7 09148M05071-000 NUT 2 Rp6.000
8 09148-06022-000 NUT 2 Rp27.000
9 01551-0616C-000 BOLT 4 Rp14.500
10 01551-0616C-000 BOLT 3 Rp14.500
11 03541-0512A-000 SCREW 6 Rp3.500
12 03541-0516A-000 SCREW 6 Rp3.500
13 03541-0516A-000 SCREW 2 Rp3.500
14 71812M62S00-5PK SPACER, RR LICENSE 1 Rp66.000
15 03541-0516A-000 SCREW 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
