Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

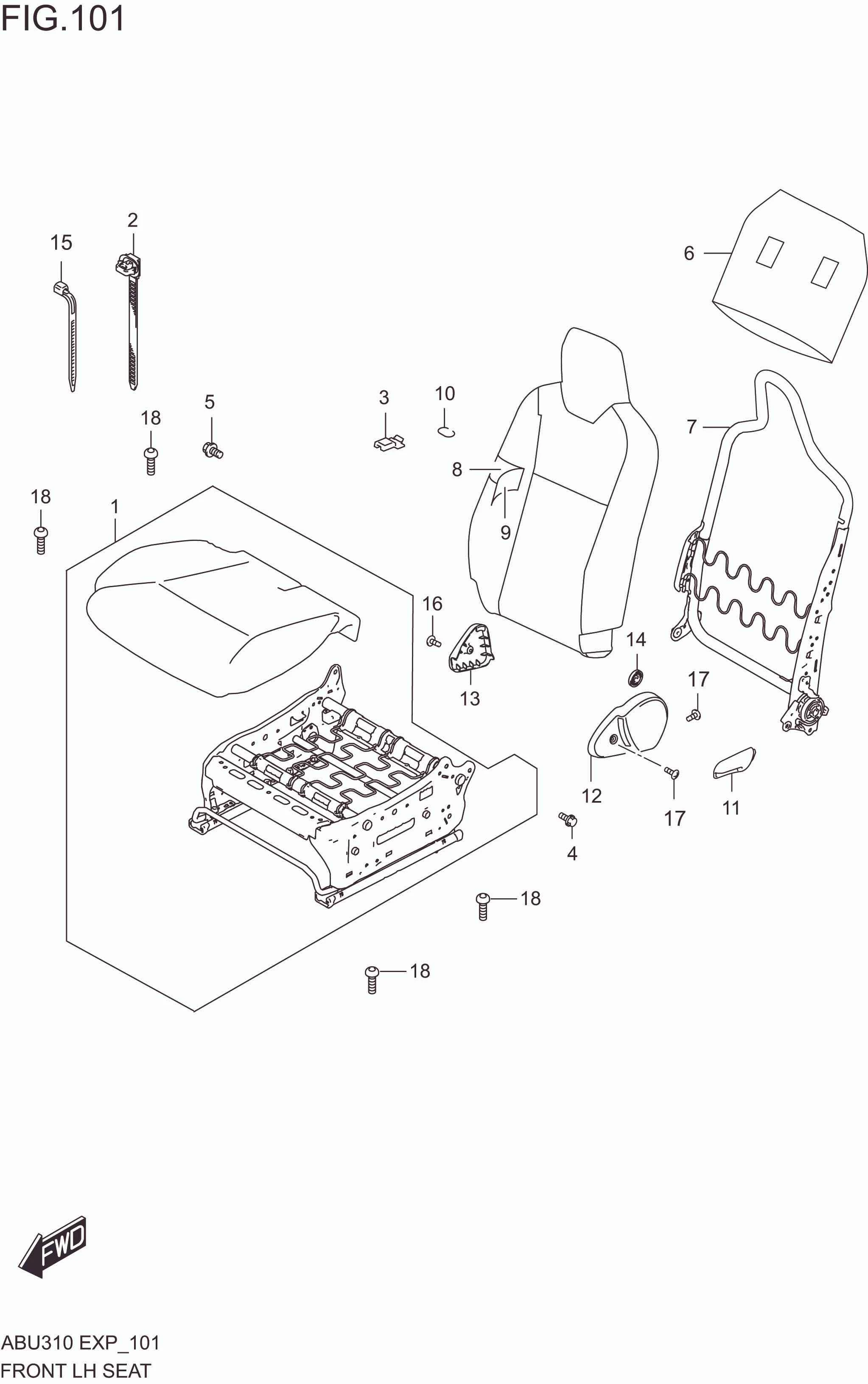

FRONT LH SEAT

FRONT LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85102M62S20-D3Q CUSHION ASSY, FR LH (BLACK) 1 Rp4.102.500
2 85191M74L00-000 CLAMP 1 Rp9.000
3 85192-74P00-000 HOLDER, HARNESS 1 Rp6.500
4 85291M62S00-000 BOLT, RECLINING 2 Rp9.500
5 85295-58J01-000 BOLT, FR BACK FIX 1 Rp34.000
6 85369M56R00-000 SILENCER, FR BACK 1 Rp34.000
7 85803M62S00-000 FRAME ASSY, FR BACK LH 1 Rp988.500
8 85860M62S00-000 PAD, FR BACK LH 1 Rp398.500
9 85880M62S00-D3Q TRIM, FR BACK LH (BLACK) 1 Rp427.000
10 09387-19001-000 RING,TRIM 10 Rp9.000
11 85711M62S00-5PK KNOB, RECLINING LH (BLACK) 1 Rp22.000
12 85721M62S00-5PK COVER, RECLINING LH (BLACK) 1 Rp61.000
13 85741M62S00-5PK COVER, FR HINGE INSIDE LH (BLACK) 1 Rp21.000
14 87286-81P00-000 BUSH, CUSH STAY FIX 1 Rp37.000
15 36990-25G00-000
SUB: 09407-14403-000		 CLAMP 2 Rp13.000
16 DISCONTINUE
SUB: 03211-0408A-000		 SCREW 1 -
17 03241-0512A-000 SCREW 2 Rp3.500
18 09119M08118-000 BOLT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
