Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

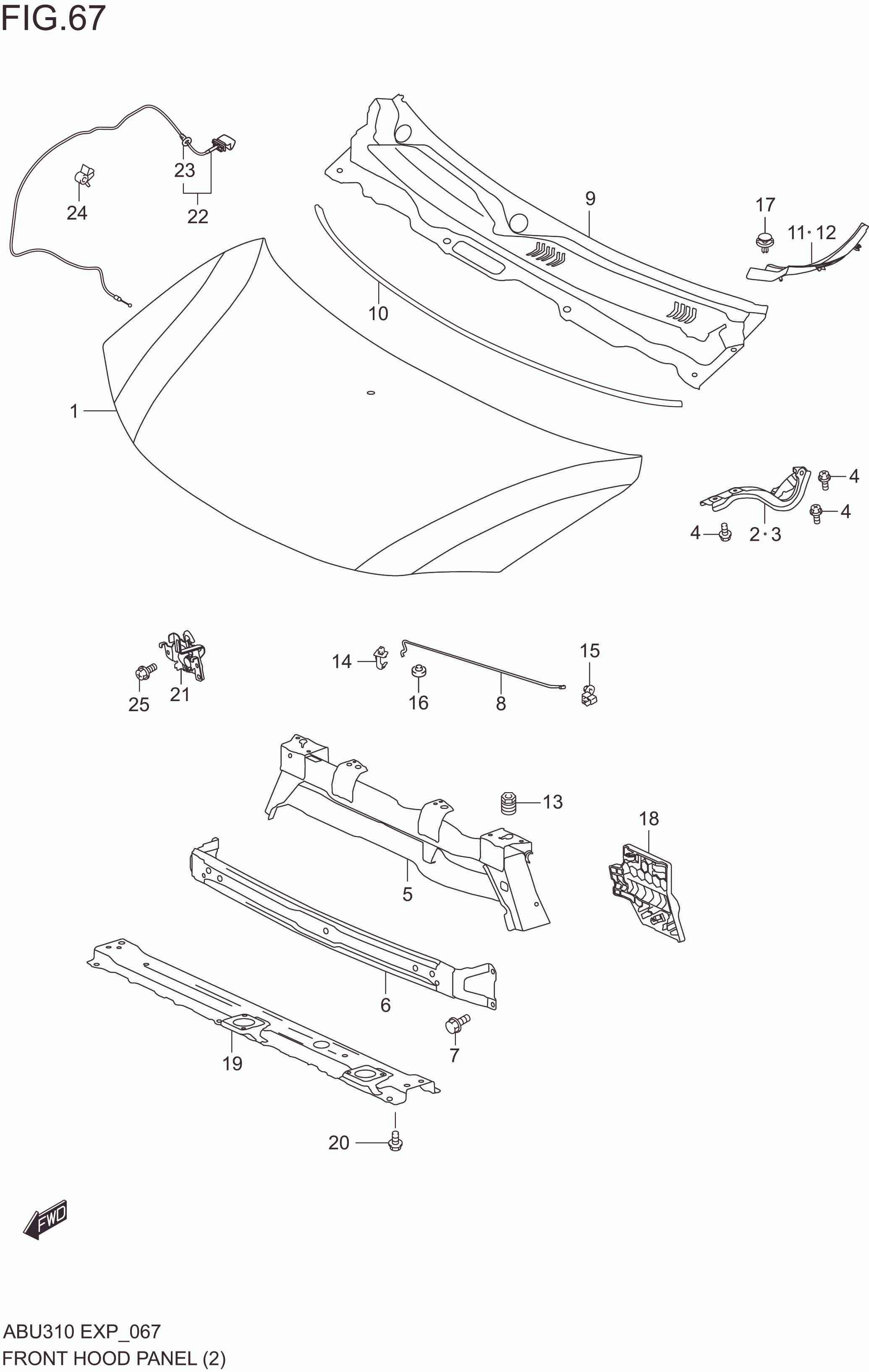

FRONT HOOD PANEL

FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57300M62S00-000 PANEL, FRONT HOOD 1 Rp1.050.000
2 57410M62S00-000 HINGE, FRONT HOOD RH 1 Rp102.000
3 57420M62S00-000 HINGE, FRONT HOOD LH 1 Rp102.000
4 01550-0612A-000 BOLT (6X12) 8 Rp3.500
5 58230M62S00-000 MEMBER, HOOD LOCK 1 Rp562.500
6 58270M62S00-000 MEMBER, FR BUMPER 1 Rp138.500
7 01550-0612A-000 BOLT (6X12) 4 Rp3.500
8 72311M62S00-000 STAY, FRONT HOOD 1 Rp31.500
9 72330M62S00-5PK GARNISH, COWL TOP CTR (BLACK) 1 Rp356.000
10 72362M62S00-000 SEAL, HOOD REAR 1 Rp60.500
11 72371M62S00-5PK GARNISH, COWL TOP SIDE RH (BLACK) 1 Rp31.000
12 72372M62S00-5PK GARNISH, COWL TOP SIDE LH (BLACK) 1 Rp31.000
13 72372M70F10-000 CUSHION, FRONT HOOD FRONT SIDE 2 Rp6.000
14 72312M55R00-000 HOLDER, FRONT HOOD STAY 1 Rp4.000
15 09209M09L02-000 LINKAGE, FR HOOD STAY 1 Rp4.500
16 09321-10023-000 CUSHION, FRONT HOOD REAR 2 Rp6.000
17 09409M07L02-000 CLIP (BLACK) 6 Rp5.500
18 72398M62S00-000 PROTECTOR, LAMP SUPPORT BRACE 1 Rp16.000
19 72380M62S00-000 CROSSMEMBER, FRONT LOWER 1 Rp621.500
20 02162-0616A-000 BOLT 4 Rp3.000
21 82110M62S00-000 LATCH, HOOD 1 Rp164.000
22 82160M62S00-000 CABLE, HOOD LATCH RELEASE 1 Rp71.500
23 82191-50E00-000 .GROMMET, LATCH RELEASE CABLE 1 Rp41.500
24 76238M70F00-000 CLAMP, RELEASE CABLE FRONT 5 Rp5.000
25 02162-0616A-000 SCREW 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
