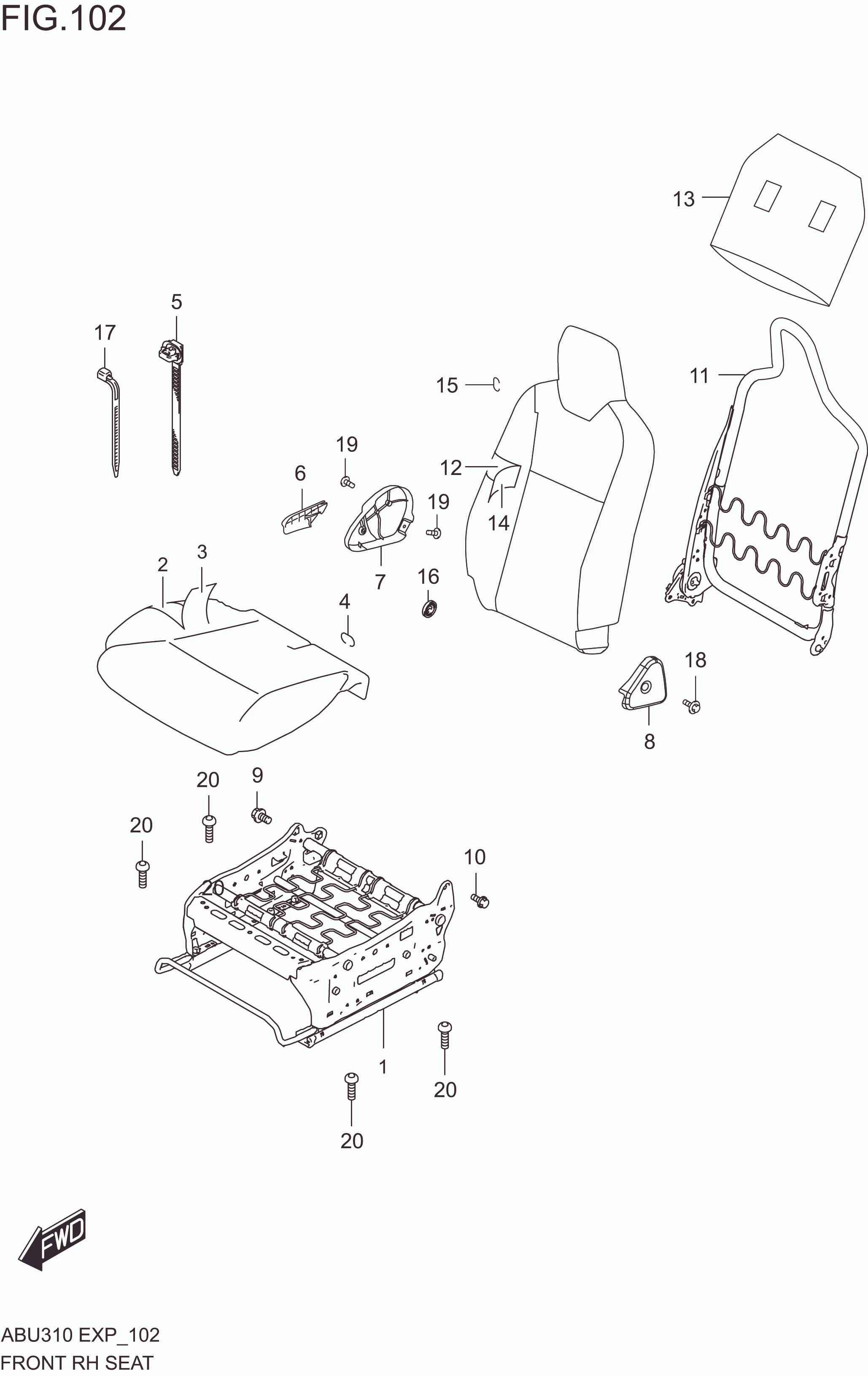

FRONT RH SEAT

FRONT RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85103M62S30-000 FRAME ASSY, FR CUSH RH 1 Rp2.242.500
2 85160M62S00-000 PAD, FR CUSH 1 Rp470.000
3 85180M62S00-D3Q TRIM, FR CUSH RH (BLACK) 1 Rp286.000
4 09387-19001-000 RING, TRIM 15 Rp9.000
5 85191M74L00-000 CLAMP 1 Rp9.000
6 85211M62S00-000 KNOB, RECLINING RH 1 Rp22.000
7 85221M62S00-5PK COVER, RECLINING RH (BLACK) 1 Rp61.000
8 85241M62S00-5PK COVER, FR HINGE INSIDE RH (BLACK) 1 Rp21.000
9 85291M62S00-000 BOLT, RECLINING 2 Rp9.500
10 85295-58J01-000 BOLT, RR HINGE 1 Rp34.000
11 85303M62S00-000 FRAME ASSY, FR BACK RH 1 Rp988.500
12 85360M62S00-000 PAD, FR BACK RH 1 Rp398.500
13 85369M56R00-000 SILENCER, FR BACK 1 Rp34.000
14 85380M62S00-D3Q TRIM, FR BACK RH (BLACK) 1 Rp427.000
15 09387-19001-000 RING,TRIM 10 Rp9.000
16 87286-81P00-000 BUSH, CUSH STAY FIX 1 Rp37.000
17 36990-25G00-000
SUB: 09407-14403-000		 CLAMP 1 Rp13.000
18 DISCONTINUE
SUB: 03211-0408A-000		 SCREW 1 -
19 03241-0512A-000 SCREW 2 Rp3.500
20 09119M08118-000 BOLT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
