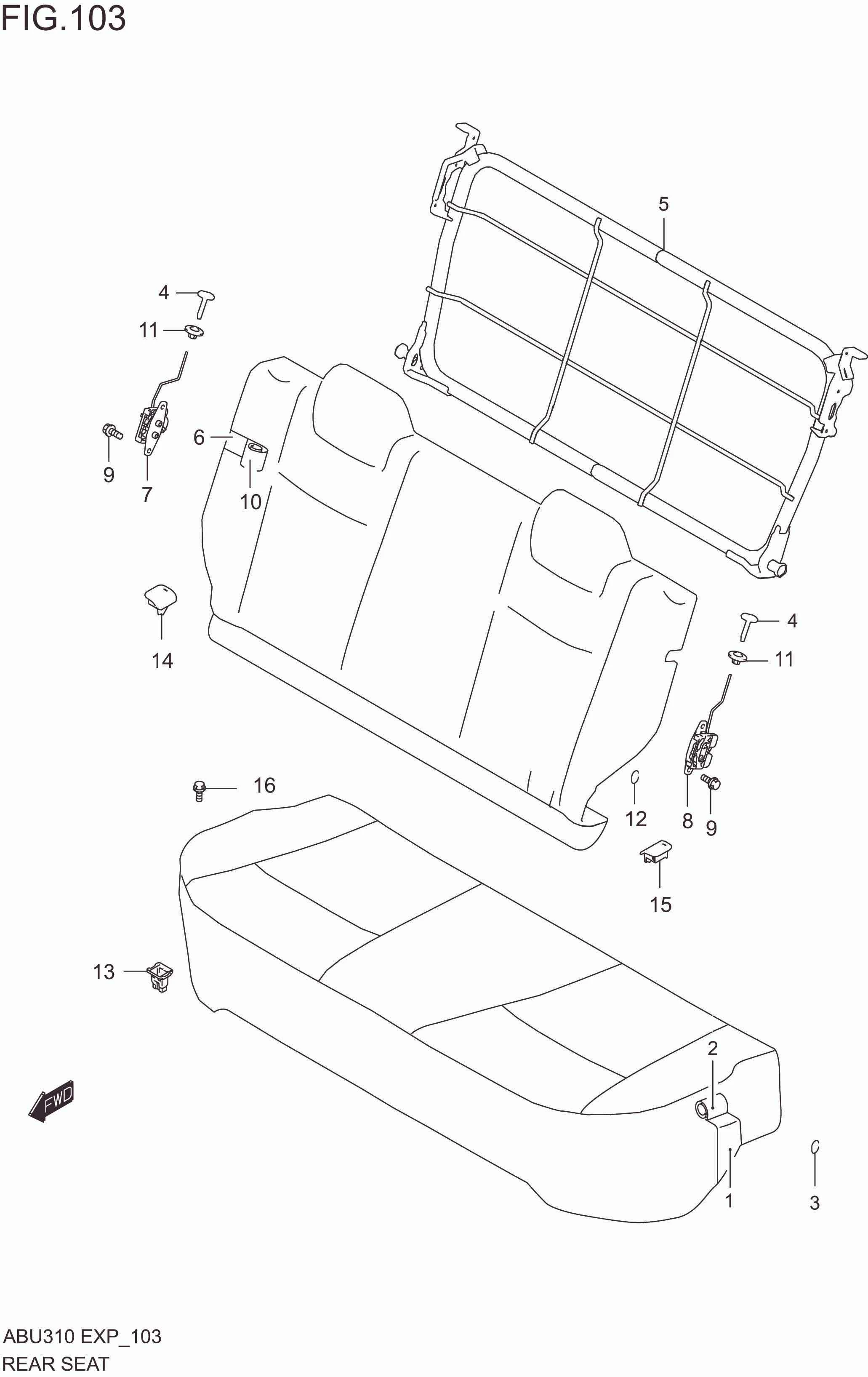

REAR SEAT (W/INTEGRATED HEADRESTRAINT)

REAR SEAT (W/INTEGRATED HEADRESTRAINT)
No No. Part Description Qty Price Per Pcs Remarks
1 87160M62S00-000 PAD, RR CUSH 1 Rp1.082.500
2 87180M62S00-D3Q TRIM, RR CUSH (BLACK) 1 Rp542.500
3 09387-19001-000 RING, TRIM 37 Rp9.000
4 87211M68P00-000 KNOB, RR BACK LOCK 2 Rp9.500
5 87310M62S00-000 FRAME, RR BACK 1 Rp901.000
6 87360M62S00-000 PAD, RR BACK 1 Rp673.000
7 87480M62S00-000 LOCK ASSY, RR BACK RH 1 Rp73.500
8 87980M62S00-000 LOCK ASSY, RR BACK LH 1 Rp73.500
9 01550-0816A-000 BOLT 4 Rp6.000
10 87380M62S00-D3Q TRIM, RR BACK (BLACK) 1 Rp628.000
11 87381M74P00-5PK BEZEL, RR BACK LOCK KNOB (BLACK) 2 Rp11.000
12 09387-19001-000 RING,TRIM 12 Rp9.000
13 87460-76G11-000
SUB: 87460-76G01-000		 HOOK, RR SEAT CUSH 2 Rp39.000
14 87491M68P10-5PK COVER, RR SEAT HINGE RH (BLACK) 1 Rp10.000
15 87991M68P10-5PK COVER, RR SEAT HINGE LH (BLACK) 1 Rp10.000
16 01550-0816A-000 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
