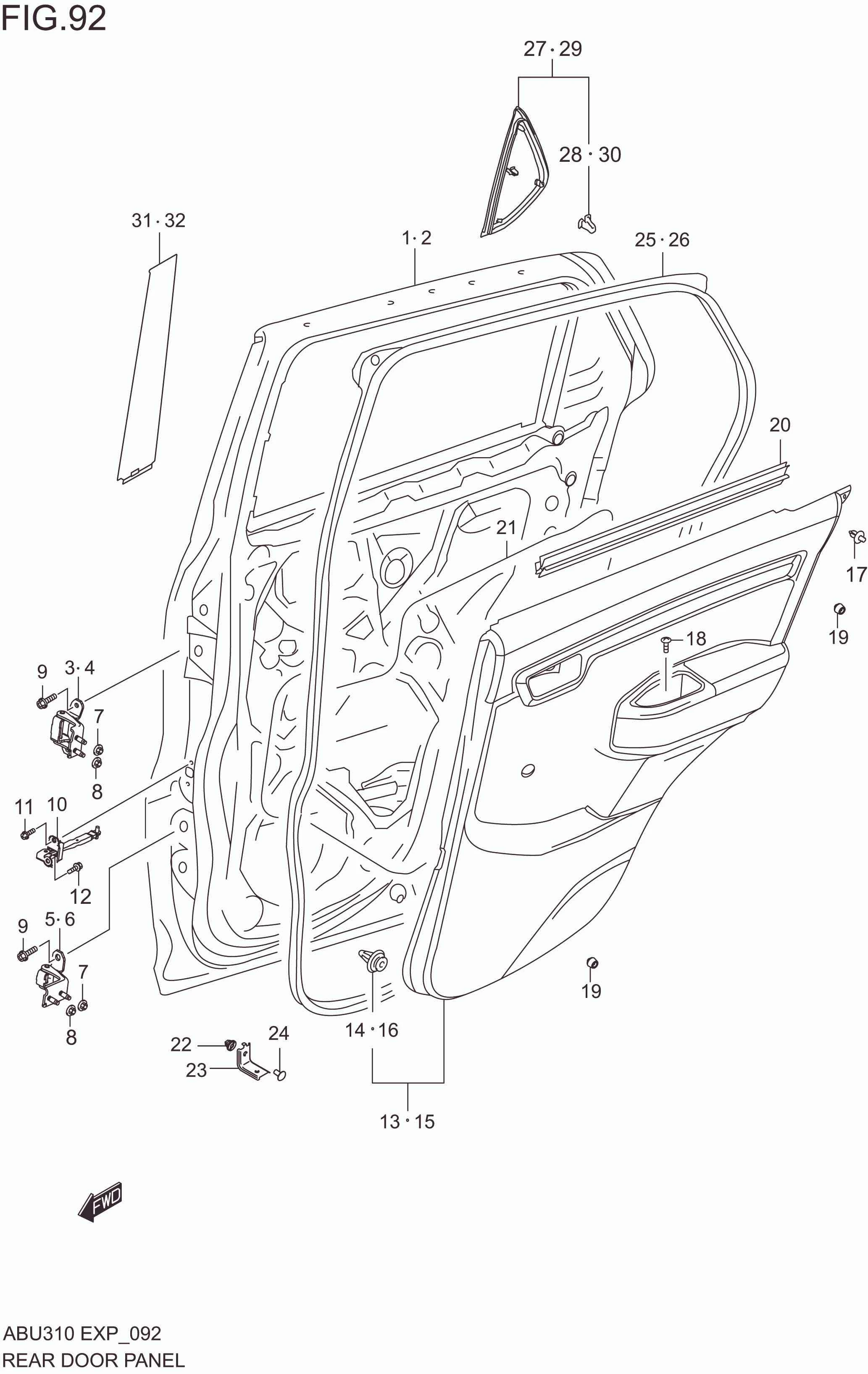

REAR DOOR PANEL

REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68003M62S01-000 PANEL ASSY, REAR DOOR RH 1 Rp3.067.000
2 68004M62S01-000 PANEL ASSY, REAR DOOR LH 1 Rp3.067.000
3 69410M66R00-000 HINGE, REAR DOOR UPPER RH 1 Rp85.500
4 69420M66R00-000 HINGE, REAR DOOR UPPER LH 1 Rp85.500
5 69430M66R00-000 HINGE, REAR DOOR LOWER RH 1 Rp85.500
6 69440M66R00-000 HINGE, REAR DOOR LOWER LH 1 Rp85.500
7 09159M08151-000 NUT 4 Rp11.500
8 08361-2508A-000 NUT 4 Rp16.500
9 09103M08557-000 BOLT (8X24) 8 Rp8.500
10 81830M75L01-000 STOP, SIDE DOOR OPEN 2 Rp89.500
11 01550-0620A-000 BOLT 4 Rp3.500
12 09112-08015-000 BOLT (8X25) 2 Rp32.000
13 83730M62S00-5PK TRIM, REAR DOOR RH (BLACK) 1 Rp494.000
14 09409M10321-000 .CLIP 8 Rp5.000
15 83740M62S00-5PK TRIM, REAR DOOR LH (BLACK) 1 Rp494.000
16 09409M10321-000 .CLIP 8 Rp5.000
17 09409-06314-5PK
SUB: 09409-06314-000		 CLIP (BLACK) 2 Rp3.500
18 09132-05058-000 SCREW (5X12) 2 Rp14.000
19 82711-65J00-000 STOPPER, DOOR 4 Rp34.000
20 83871M62S00-000 WEATHERSTRIP, RR DOOR INNER 2 Rp66.000
21 83913M62S00-000 COVER, REAR DOOR SEALING 2 Rp11.000
22 71851M70F00-000 NUT, SIDE DOOR TRIM BRKT 2 Rp4.000
23 83751-67P00-000 BRACKET, SIDE DOOR TRIM 2 Rp11.500
24 03141M0612A-000
SUB: 03241-0612A-000		 SCREW 2 Rp4.500
25 84661M62S00-000 WEATHERSTRIP, REAR DOOR OPNG RH 1 Rp221.000
26 84671M62S00-000 WEATHERSTRIP, REAR DOOR OPNG LH 1 Rp221.000
27 83970M62S00-000 GARNISH, RR DR RR OUTER RH 1 Rp66.000
28 09409-06324-000 .CLIP 3 Rp13.500
29 83980M62S00-000 GARNISH, RR DR RR OUTER LH 1 Rp66.000
30 09409-06324-000 .CLIP 3 Rp13.500
31 83925M62S00-0CB TAPE, REAR DOOR PILLAR FR RH (BLACK) 1 Rp129.500
32 83926M62S00-0CB TAPE, REAR DOOR PILLAR FR LH (BLACK) 1 Rp129.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
