Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

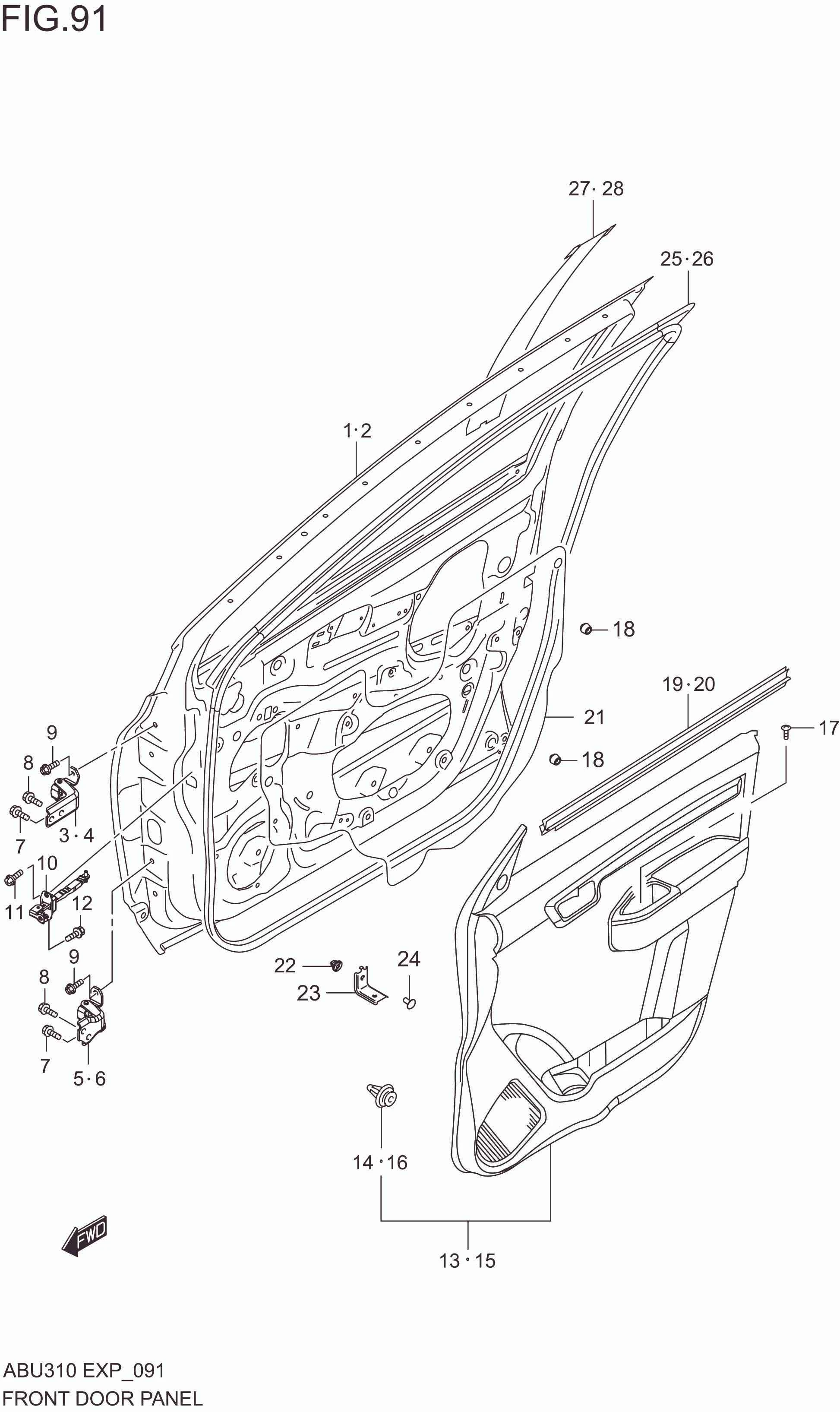

FRONT DOOR PANEL (W/FRONT POWER WINDOW)

FRONT DOOR PANEL (W/FRONT POWER WINDOW)
No No. Part Description Qty Price Per Pcs Remarks
1 68001M62S02-000
SUB: 68001M62S01-000		 PANEL ASSY, FRONT DOOR RH 1 Rp2.065.000
2 68002M62S12-000
SUB: 68002M62S11-000		 PANEL ASSY, FRONT DOOR LH 1 Rp2.065.000
3 69310M82S00-000 HINGE, FRONT DOOR UPPER RH 1 Rp61.500
4 69320M82S00-000 HINGE, FRONT DOOR UPPER LH 1 Rp61.500
5 69330M82S00-000 HINGE, FRONT DOOR LOWER RH 1 Rp61.500
6 69340M82S00-000 HINGE, FRONT DOOR LOWER LH 1 Rp61.500
7 09113M08L02-000 BOLT (8X20) 4 Rp8.500
8 01550-0820A-000 BOLT 4 Rp5.500
9 09103M08557-000 BOLT (8X24) 8 Rp8.500
10 81810M75J03-000 STOP, SIDE DOOR OPEN 2 Rp72.000
11 01550-0620A-000 BOLT 4 Rp3.500
12 09112-08015-000 BOLT (8X25) 2 Rp32.000
13 83710M62S20-5PK TRIM, FRONT DOOR RH (BLACK) 1 Rp661.500
14 09409M10321-000 .CLIP 11 Rp5.000
15 83720M62S20-5PK TRIM, FRONT DOOR LH (BLACK) 1 Rp661.500
16 09409M10321-000 .CLIP 11 Rp5.000
17 09132-05058-000 SCREW (5X12) 2 Rp14.000
18 82711-65J00-000 STOPPER, DOOR 4 Rp34.000
19 83851M62S00-000 WEATHERSTRIP, FR DOOR INNER RH 1 Rp74.000
20 83861M62S00-000 WEATHERSTRIP, FR DOOR INNER LH 1 Rp74.000
21 83911M62S00-000 COVER, FRONT DOOR SEALING 2 Rp12.500
22 71851M70F00-000 NUT, SIDE DOOR TRIM BRKT 2 Rp4.000
23 83751-67P00-000 BRACKET, SIDE DOOR TRIM 2 Rp11.500
24 03141M0612A-000
SUB: 03241-0612A-000		 SCREW 2 Rp4.500
25 84641M62S00-000 WEATHERSTRIP, FRONT DOOR OPNG RH 1 Rp244.000
26 84651M62S00-000 WEATHERSTRIP, FRONT DOOR OPNG LH 1 Rp244.000
27 83923M62S00-0CB TAPE, FRONT DOOR PILLAR RR RH (BLACK) 1 Rp129.500
28 83924M62S00-0CB TAPE, FRONT DOOR PILLAR RR LH (BLACK) 1 Rp129.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
