Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITHEATER CONTROLCONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENERROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR (W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (DX)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

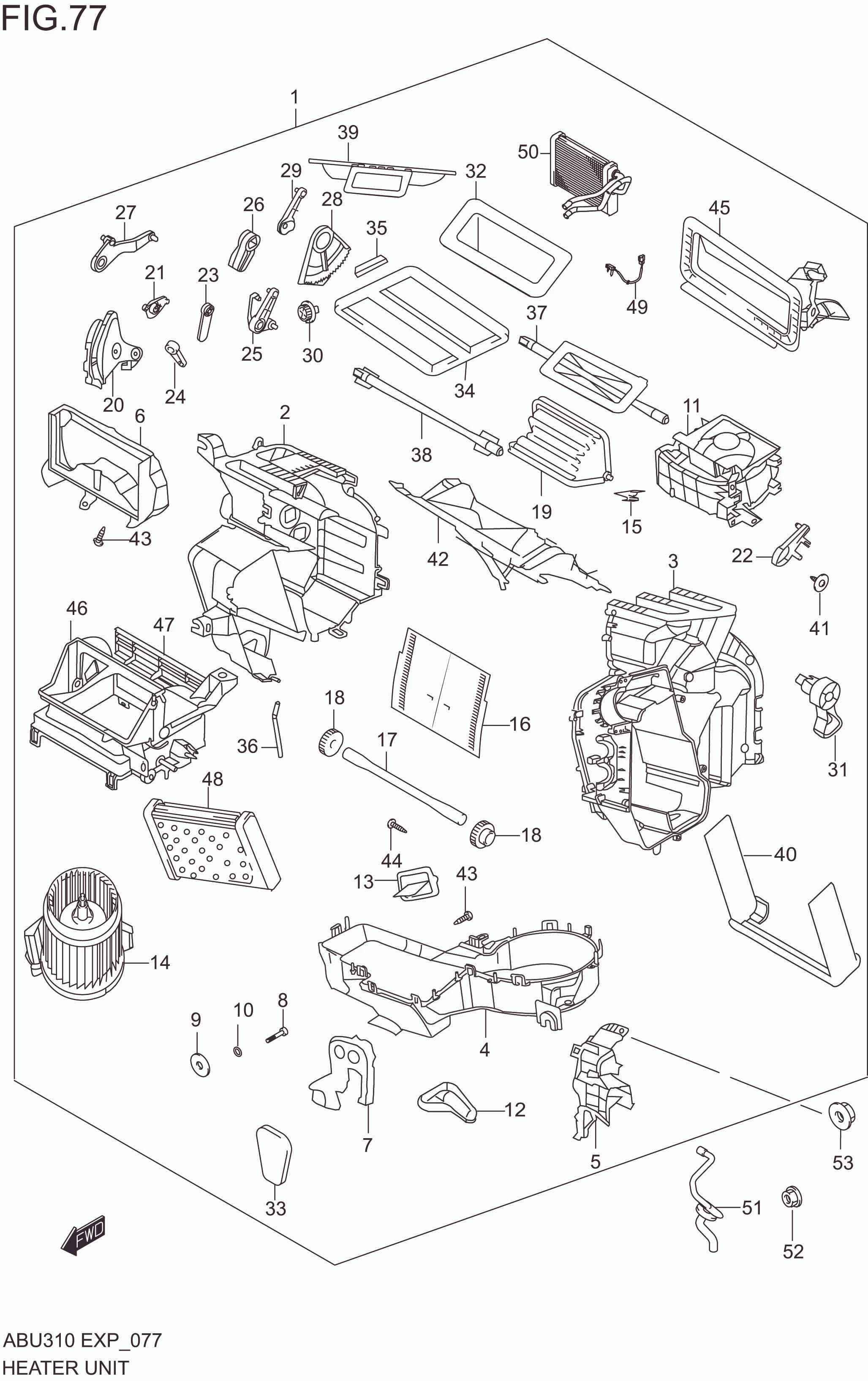

HEATER UNIT

HEATER UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 74100M62S20-000 HVAC UNIT 1 Rp6.780.000
2 74111M62S20-000 .CASE,MAIN RH 1 Rp283.500
3 74112M62S20-000 .CASE,MAIN, LH 1 Rp283.500
4 74113M62S20-000 .CASE- LWR 1 Rp227.500
5 74129M62S20-000 .COVER,TXV 1 Rp43.000
6 74115M62S20-000 .DUCT-FOOT ASSY 1 Rp63.500
7 74124M62S20-000 .FLANGE,HEATER 1 Rp18.500
8 74117M62S20-000 .BOLT,MOUNTING 4 Rp9.500
9 74135M62S20-000 .PACKING,STUD BOLT 4 Rp3.000
10 74119-76M00-000 .WASHER 4 Rp151.000
11 74121M62S20-000 .CASE SCROLL, UPR 1 Rp183.500
12 74122M62S20-000 .COVER H/PIPE 1 Rp21.500
13 74140-76M00-000 .RESISTOR, HVAC 1 Rp129.500
14 74150M62S20-000 .BLOWER ASSY 1 Rp1.256.500
15 74151-76M00-000 .CLAMP CONT CABLE 3 Rp30.500
16 74171M62S20-000 .DOOR ASSY MIX 1 Rp75.000
17 74175M62S20-000 .SHAFT 1 Rp18.500
18 74176M62S20-000 .PINION,GEAR 2 Rp8.000
19 74174M62S20-000 .DOOR ASSY - INTAKE 1 Rp47.000
20 74181M62S20-000 .LINK MAIN 1 Rp11.500
21 74182M62S20-000 .LINK VENT 1 Rp8.000
22 74183M62S20-000 .LINK INTAKE 1 Rp6.500
23 74184M62S20-000 .LEVER VENT 1 Rp5.000
24 74185M62S20-000 .LEVER DEF 1 Rp5.000
25 74186M62S20-000 .LINK- DEF 1 Rp5.000
26 74187M62S20-000 .LEVER FOOT 1 Rp4.500
27 74188M62S20-000 .LINK- FOOT 1 Rp5.500
28 74192M62S20-000 .LINK MIX 1 Rp5.000
29 74189M62S20-000 .LINK SUB MIX 1 Rp6.500
30 74193M62S20-000 .LEVER,MIX 1 Rp12.000
31 74191M62S20-000 .LEVER INTAKE 1 Rp5.500
32 74134M62S20-000 .PACKING - INTAKE 1 Rp23.000
33 74131M62S20-000 .PACKING DASH EXP/V & H/PIPE 1 Rp99.000
34 74132M62S20-000 .PACKING,VENT NO.1 1 Rp40.000
35 74133M62S20-000 .PACKING,VENT NO.2 2 Rp3.500
36 74136M62S20-000 .PACKING CASE 1 Rp13.500
37 74172M62S20-000 .DOOR ASSY,DEF 1 Rp29.000
38 74174M62S00-000 .DOOR ASSY,FOOT 1 Rp32.000
39 74173M62S20-000 .DOOR ASSY,VENT 1 Rp31.500
40 74171M62S20-000 .DOOR ASSY,MIX 1 Rp75.000
41 95655M62S20-000 .SCREW,TAPPING 7 Rp7.500
42 74125M62S20-000 .INNER,DUCT 1 Rp10.500
43 95656-76M00-000 .SCREW,TAPPING 2 Rp61.500
44 95654M76M00-000 .SCREW,TAPPING 13 Rp7.500
45 74126M62S20-000 .CASE,DUCT 1 Rp61.000
46 74127M62S20-000 .CASE,S/BOX 1 Rp117.500
47 95861M62S20-000 .COVER,FILTER 1 Rp21.500
48 95410M62S20-000 .EVAPORATOR ASSY 1 Rp550.000
49 95541-76M00-000 .SENSOR,EVAP OUTLET 1 Rp244.000
50 74120M62S20-000 .HEATER CORE ASSY 1 Rp564.500
51 95481M62S00-000 HOSE,DRAIN 1 Rp31.500
52 09159-06086-000 NUT,HVAC 4 Rp26.500
53 08361M2506A-000
SUB: 08361-2506A-000		 NUT,HVAC 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
