SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

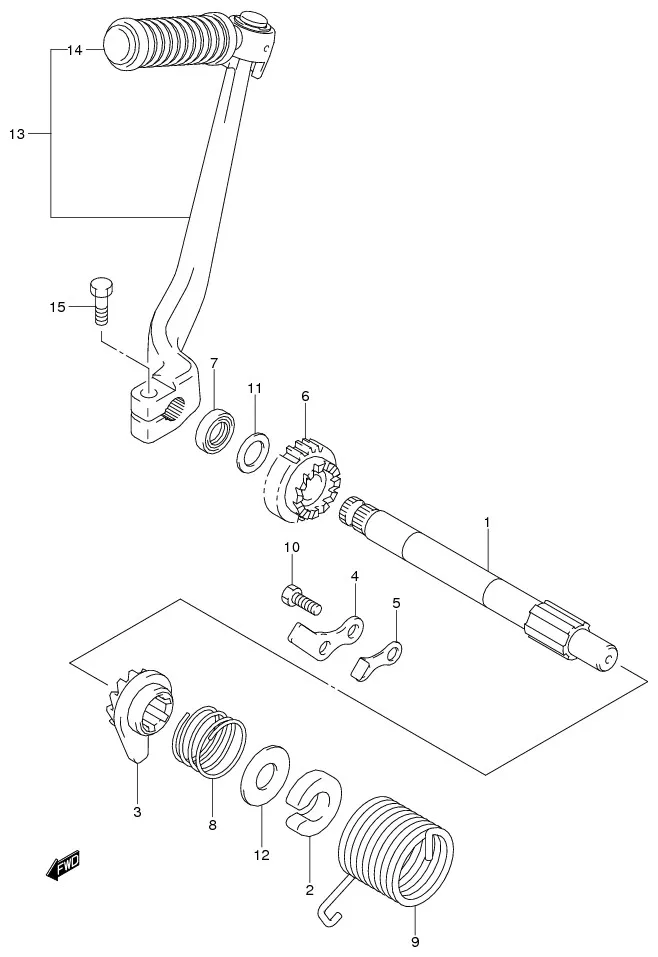

FIG.17 KICK STARTER

FIG.17 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-45H00-000
SUB: 26211B45H00N000		 SHAFT, KICK STARTER 1 Rp73.000
2 DISCONTINUE
SUB: 26221B45H00N000		 GUIDE, KICK STARTER SPR 1 -
3 DISCONTINUE
SUB: 26231B09G00N000		 STARTER, KICK 1 -
4 26232-09410-000
SUB: 26232B09410N000		 GUIDE, KICK STARTER 1 Rp6.500
5 26233-09400-000
SUB: 26233B09400N000		 STOPPER, KICK STARTER 1 Rp3.000
6 26241-45H10-000
SUB: 26241B45H10N000		 GEAR, KICK STARTER DRIVE 1 Rp60.500
7 09283-14013-000
SUB: 09283B14013N000		 SEAL, KICK STARTER (14X24X6.0) 1 Rp5.500
8 09440-30007-000
SUB: 09440B30007N000		 SPRING, KICK STARTER 1 Rp3.000
9 09448-38004-000
SUB: 09448B38004N000		 SPRING, KICK SHAFT RETURN 1 Rp21.000
10 01500-0616A-000
SUB: 01500B0616AN000		 BOLT, KICK STARTER STOPPER 2 Rp6.500
11 DISCONTINUE
SUB: 09181-15139-000		 WASHER, KICK DRIVE GEAR 1 -
12 08211-15321-000 PLATE, KICK STARTER SPRING 1 Rp10.500
13 26300-45H30-000
SUB: 26300B45H10N000		 LEVER ASSY, KICK STARTER 1 Rp61.000
14 26352-16H10-000
SUB: 26352B16H10N000		 .RUBBER, KICK PEDAL 1 Rp4.500
15 01500-0825B-000
SUB: 01500B0825AN000		 BOLT, LEVER 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
