SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

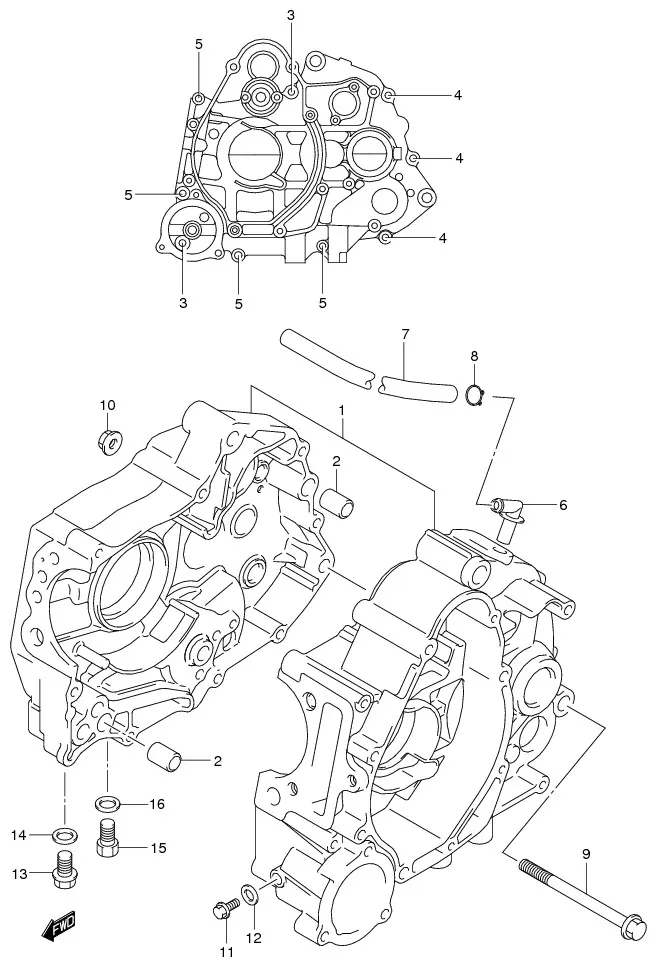

FIG.3 CRANKCASE

FIG.3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11300B45H10N000		 CRANKCASE ASSY 1 -
2 04211M13189-000
SUB: 04211-13189-000		 .PIN 2 Rp9.000
3 01547-0640B-000
SUB: 01547B0640AN000		 .BOLT 2 Rp7.000
4 01547-0650A-000
SUB: 01547B0650AN000		 .BOLT 3 Rp7.000
5 01547-0675A-000
SUB: 01547B0675AN000		 .BOLT 4 Rp7.500
6 DISCONTINUE
SUB: 16910-23F00-000		 UNION, BREATHER HOSE 1 -
7 09352-70119-600
SUB: 09352-70113-600		 HOSE, BREATHER 1 Rp86.500 L:600!340
8 09401-10401-000
SUB: 09401B10401N000		 CLIP 2 Rp5.500
9 09103-10110-000 BOLT (10X110) 2 Rp11.500
10 08319-3110A-000
SUB: 08319B3110AN000		 NUT 2 Rp4.500
11-2 DISCONTINUE
SUB: 01550B0612AN000		 PLUG, OIL GALLERY 1 -
13 09247-10008-000 PLUG, OIL GALLERY 1 Rp11.500
14 09168-10L02-000
SUB: 09168-10002-000		 GASKET 1 Rp2.500
15 01500-1020A-000
SUB: 01500B1020AN000		 PLUG, DRAIN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
