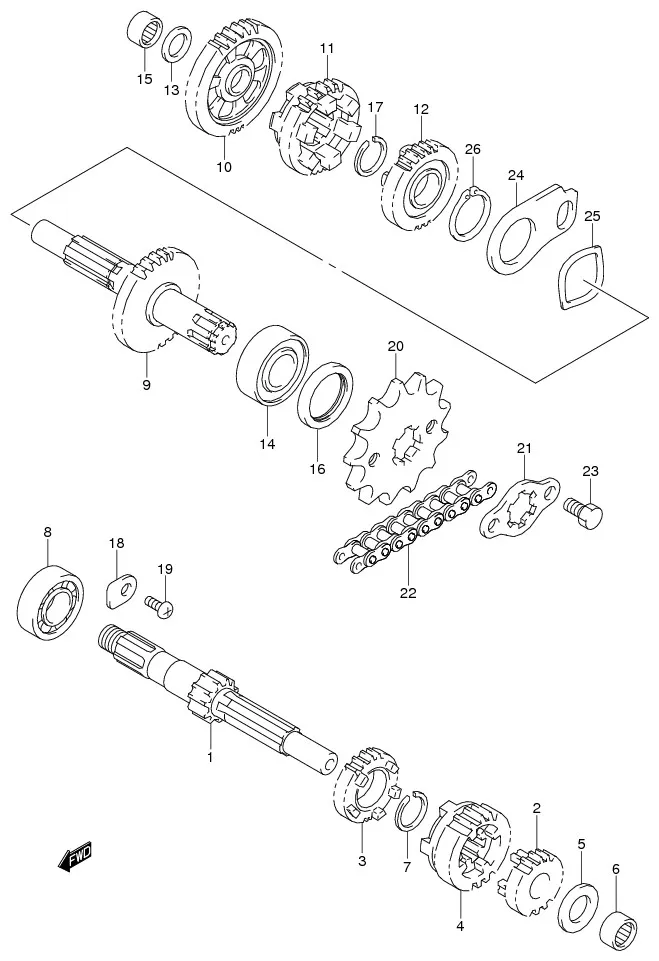

FIG.15 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	24120-23F40-000 SUB: 24120B23F40N000	SHAFT, COUNTER	1	Rp123.000
2	24221-45H00-000 SUB: 24221B45H00N000	GEAR, 2ND DRIVE	1	Rp52.000
3	24231-45H00-000 SUB: 24231B45H00N000	GEAR, 3RD DRIVE	1	Rp157.000
4	24241-45H01-000 SUB: 24241B45H01N000	GEAR, 4TH DRIVE	1	Rp86.000
5	DISCONTINUE SUB: 09160B13006N000	WASHER, 2ND DRIVE GEAR	1	-
6	09263-13003-000	BEARING, COUNTER SHAFT RH (13X19X14)	1	Rp27.000
7	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 3RD DRIVE GEAR	1	Rp11.000
8	08110B62030N000	BEARING, COUNTER SHAFT LH	1	Rp44.500
9	24130-45H00-000 SUB: 24130B45H00N000	SHAFT, DRIVE	1	Rp434.500
10	24311-45H00-000 SUB: 24311B45H00N000	GEAR, 1ST DRIVEN	1	Rp59.500
11	24331-45H00-000 SUB: 24331B45H00N000	GEAR, 3RD DRIVEN	1	Rp70.000
12	24341-45H01-000 SUB: 24341B45H01N000	GEAR, 4TH DRIVEN	1	Rp67.500
16	09283-17031-000 SUB: 09283B17031N000	SEAL, DRIVE SHAFT OIL	1	Rp8.500
18	24741-20A10-000	RETAINER, CNTR SHAFT BEARING	1	Rp3.500
19	02142-0612A-000 SUB: 02142B0612AN000	SCREW, RETAINER	1	Rp4.000
20	27511-09G10-000 SUB: 27511B09G00N000	SPROCKET, ENGINE (14T)	1	Rp53.500
21	27512-09G00-000 SUB: 27512B09G00N000	PLATE, ENGINE SPROCKET	1	Rp8.500
22	27600-20960-102 SUB: 27600B20960N102	CHAIN ASSY, DRIVE (102L)	1	Rp138.500
23	01500-0610A-000 SUB: 01500B0610AN000	BOLT, ENGINE SPROCKET PLATE	2	Rp6.500
24	DISCONTINUE SUB: 25361B23F10N000	PLATE, ROTARY STOP	1	-
25	DISCONTINUE SUB: 09164B25002N000	WASHER, ROTARY STOP WAVE	1	-
26	DISCONTINUE SUB: 08331-3125A-000	CIRCLIP, ROTARY STOP PLATE	1	-
