SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUTCH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

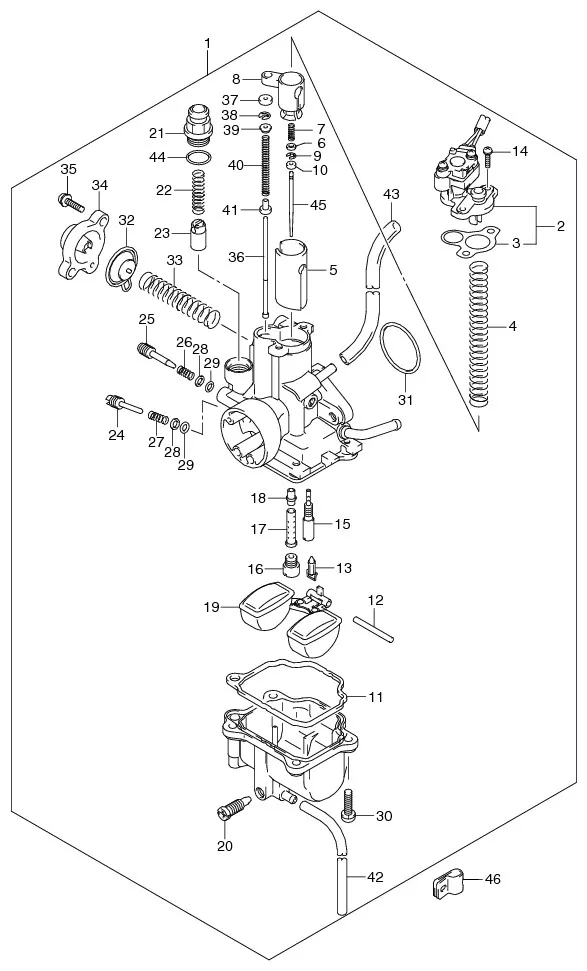

FIG.9 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs
1	13200-45H20-000 SUB: 13200B45H20N000	CARBURETOR ASSY	1	Rp714.500
2	DISCONTINUE SUB: 13260B20G00N000	.TOP CAP ASSY	1	-
3	DISCONTINUE SUB: 13249B20G00N000	..GASKET	1	-
4	DISCONTINUE SUB: 13573B20G00N000	.SPRING	1	-
5	DISCONTINUE SUB: 13551B20G00N000	.PISTON VALVE	1	-
6	13382-23F00-000 SUB: 13382B23F00N000	.WASHER	1	Rp8.500
7	13573-45H20-000 SUB: 13481B45H20N000	.SPRING, COMPRESSION	1	Rp9.000
8	DISCONTINUE SUB: 13389B20G00N000	.HOLDER	1	-
9	13533-98410-000 SUB: 13533B98410N000	.E RING	1	Rp6.000
10	13387-23F00-000 SUB: 13387B23F00N000	.RING	1	Rp8.500
11	13258-30A00-000 SUB: 13258B30A00N000	.PACKING	1	Rp9.000
12	13254-20010-000 SUB: 13254B20010N000	.PIN	1	Rp7.500
13	DISCONTINUE SUB: 13370B20G00N000	.NEEDLE ASSY	1	-
14	DISCONTINUE SUB: 02112B34123N000	.SCREW	2	-
15	09492-15011-000 SUB: 09492B15011N000	.JET, PILOT (#15)	1	Rp21.000
16	09491-95004-000 SUB: 09491B95004N000	.JET, MAIN (#95)	1	Rp12.500
17	13385-09G20-000 SUB: 13385B09G20N000	.PIPE	1	Rp37.000
18	13341-45H20-000 SUB: 09494B45H20N000	.JET, NEEDLE (E-3M)	1	Rp23.000
19	13250-30D00-000 SUB: 13250B30D00N000	.FLOAT ASSY	1	Rp32.500
20	13247-09G10-000 SUB: 13247B09G10N000	.SCREW, DRAIN	1	Rp21.000
21	13418-43410-000 SUB: 13418B43410N000	.HOLDER, GUIDE	1	Rp7.500
22	13417-01010-000 SUB: 13417B01010N000	.SPRING	1	Rp6.500
23	13411-01010-000 SUB: 13411B01010N000	.PLUNGER ASSY	1	Rp13.000
24	DISCONTINUE SUB: 13267B09G20N000	.ADJUSTER	1	-
25	13267-20G20-000 SUB: 13267B20G00N000	.ADJUSTER	1	Rp9.500
26	13268-35010-000 SUB: 13268B35010N000	.SPRING	1	Rp5.500
27	DISCONTINUE SUB: 13268B09G20N000	.SPRING	1	-
28	13291-29900-000 SUB: 13291B29900N000	.WASHER	2	Rp6.500
29	13295-29900-000 SUB: 13295B29900N000	.O RING	2	Rp8.000
30	13601-04148-000 SUB: 13601B04148N000	.SCREW	4	Rp8.000
31	DISCONTINUE SUB: 13278B29C50N000	.O RING	1	-
32	13480-09G10-000 SUB: 13480B09G10N000	.DIAPHRAGM ASSY	1	Rp31.500
33	13481-09G10-000 SUB: 13481B09G10N000	.SPRING	1	Rp8.000
34	DISCONTINUE SUB: 13502B09G10N000	.DIAPHRAGM COVER	1	-
35	DISCONTINUE SUB: 13601B20G00N000	.SCREW	2	-
36	13487-20G00-000 SUB: 13487B20G00N000	.ROD	1	Rp13.000
37	13387-47010-000 SUB: 13387B47010N000	.RING	1	Rp7.500
38	13394-40D20-000 SUB: 13394B40D20N000	.E RING	1	Rp6.500
39	13387-20G00-000 SUB: 13387B20G00N000	.RING	1	Rp7.500
40	13481-20G00-000 SUB: 13481B20G00N000	.SPRING	1	Rp9.000
41	13331-20G00-000 SUB: 13331B20G00N000	.RING	1	Rp36.000
42	DISCONTINUE SUB: 13683B34A10N000	.HOSE	1	-
43	13684-09400-000 SUB: 13684B09400N000	.HOSE	1	Rp9.000
44	13278-47090-000 SUB: 13278B47090N000	.O RING	1	Rp5.500
45	13383-16H00-000 SUB: 13383B16H00N000	.NEEDLE, JET	1	Rp26.000
46	DISCONTINUE SUB: 13827B09G00N000	CLAMP	1	-
