Preview Engine Transmission Electrical Suspension Body

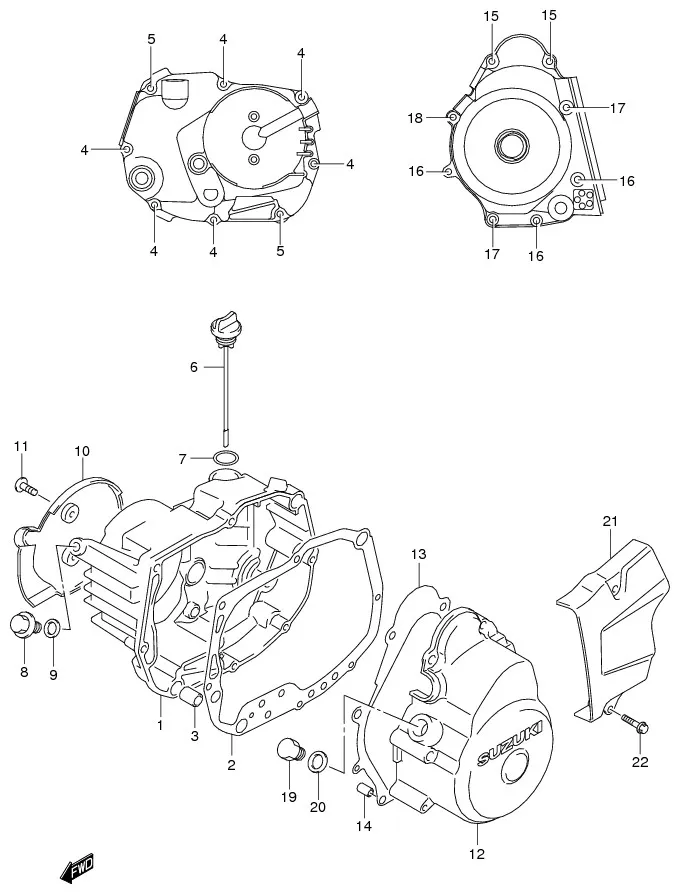

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 11341B09G30N000	COVER, CLUTCH	1	-
2-1	11482-09G20-000 SUB: 11482B09G20N000	GASKET, CLUTCH COVER	1	Rp16.500
2-2	11482-09G30-000 SUB: 11482B09G30N000	GASKET, CLUTCH COVER	1	Rp13.500
4	01547-0630A-000 SUB: 01547B0630AN000	SCREW	6	Rp6.500
6	11971-09403-000 SUB: 11971B09403N000	GAUGE, OIL LEVEL	1	Rp46.000
7	09280-17003-000 SUB: 09280-17003L000	O RING (D:3.1,ID:16.8)	1	Rp2.000
8	01550-0812A-000 SUB: 01550B0812AN000	LUG, OIL CHECK	1	Rp3.500
9	09168-08015-000 SUB: 09168B08015N000	GASKET	1	Rp2.000
10	DISCONTINUE SUB: 11383B20G00N000	CAP, CLUTCH COVER	1	-
11	02142-0508A-000	SCREW, CAP	2	Rp3.500
12	DISCONTINUE SUB: 11351B45H00N000	COVER, MAGNETO	1	-
13	11483-45H20-000 SUB: 11483B45H20N000	GASKET, MAGNETO COVER	1	Rp13.500
14	04211-09149-000 SUB: 04211B09149N000	PIN	2	Rp3.000
15	01547-0680A-000 SUB: 01547B0680AN000	BOLT	2	Rp4.000	FW110SDL0
19	09247-12104-000 SUB: 09247-12102-000	PLUG, TOP (12X12)	1	Rp17.500
20	09168-12002-000 SUB: 09168B12002N000	GASKET (12.1X16.2X1.2)	1	Rp10.000
21	11360-20G40-000 SUB: 11360B20G00N000	COVER, ENGINE SPROCKET	1	Rp52.500
