SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

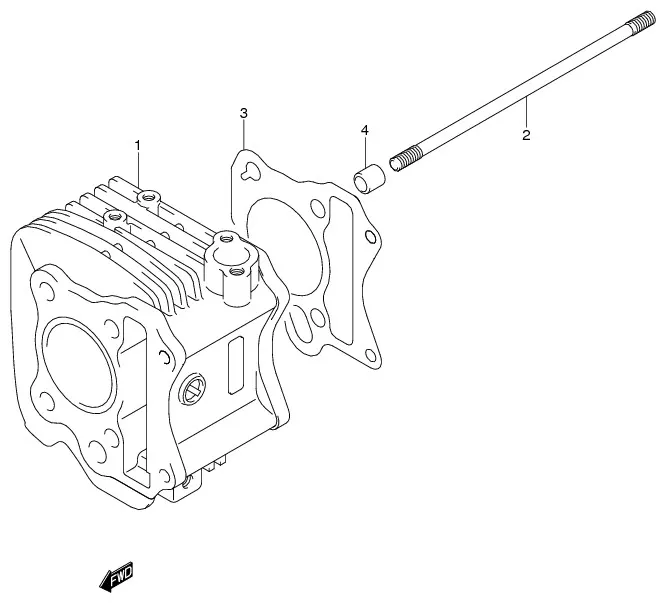

FIG.2 CYLINDER

FIG.2 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11210-45H00-0F0
SUB: 11210B45H00N0F0		 CYLINDER 1 Rp228.000
2 09108-08L01-000
SUB: 09108B08L01N000		 STUD BOLT (8X192) 4 Rp12.500
3 11241-16H10-000
SUB: 11241B16H10N000		 GASKET, CYLINDER 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
