SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUTCH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

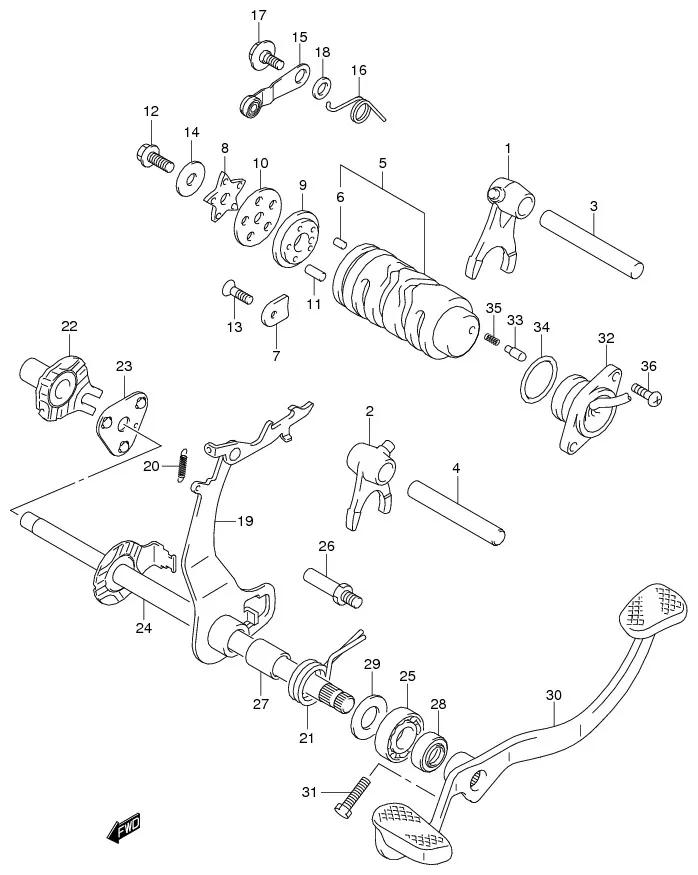

FIG.16 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 25211B23F20N000	FORK, GEAR SHIFT NO.1	1	-
2	DISCONTINUE SUB: 25221B23F20N000	FORK, GEAR SHIFT NO.2	1	-
3	DISCONTINUE SUB: 25411-13A10-000	SHAFT, SHIFT FORK NO.1	1	-
4	DISCONTINUE SUB: 25421-35420-000	SHAFT, SHIFT FORK NO.2	1	-
5	DISCONTINUE SUB: 25310B23F50N000	CAM, GEAR SHIFT	1	-
6	04221-04089-000	.PIN	1	Rp3.500
7	DISCONTINUE SUB: 25341-09G02-000	RETAINER, SHIFT CAM	1	-
8	DISCONTINUE SUB: 25381-30A50-000	PLATE, SHIFT CAM STOPPER	1	-
9	DISCONTINUE SUB: 25382B30A80N000	PLATE, SHIFT CAM NO.2	1	-
10	DISCONTINUE SUB: 25382-35411-000	GUIDE, GR SHF CAM	1	-
11	09261-04002-000	PIN, SHIFT CAM (4X13.8)	5	Rp8.000
12	01500-0625A-000	BOLT, SHIFT CAM PIN	1	Rp2.000
13	DISCONTINUE SUB: 25342B09G00N000	SCREW, SHIFT CAM RETAINER	1	-
14	09160-06012-000 SUB: 09160B06012N000	STOPPER, SHIFT CAM PIN	1	Rp7.000
15	25350-23F10-000	STOPPER, SHIFT CAM	1	Rp44.000
16	25355-36H20-000 SUB: 25355B36H20N000	SPRING SHIFT CAM	1	Rp3.500
17	09111-06041-000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
18	08211-06121-000	WASHER, SHIFT CAM	1	Rp7.500
19	25520-09G30-000	ARM, GEAR SHIFT	1	Rp37.500
20	09443-05019-000	SPRING, SHIFT PAWL	1	Rp6.500
21	09444-26033-000 SUB: 09444B26033N000	SPRING, SHIFT ARM RETURN	1	Rp6.500
22	23230-20G00-000	GUIDE, RLSE BALL OUTER	1	Rp33.000
23	23250-20G00-000 SUB: 23250B20G00N000	BALL, CLUTCH RELEASE	1	Rp17.000
24	25510-20G40-000 SUB: 25510B20G30N000	SHAFT, GEAR SHIFT	1	Rp157.500
25	08113-60010-000 SUB: 09262-12001L000	BEARING, GEAR SHIFT (12X28X8)	1	Rp34.000
26	25671-20G00-000	STOPPER, SHIFT ARM	1	Rp11.000
27	09180-12036-000	SPACER, SHIFT ARM (12X16X20)	1	Rp64.000
28	09283-12010-000 SUB: 09285B12006N000	SEAL, SHIFT SHAFT OIL (12X22X9.0)	1	Rp10.000
29	DISCONTINUE SUB: 25516-07H00-000	SPACER	1	-
30	25610-09G20-000 SUB: 25610B09G20N000	LEVER ASSY, GEAR SHIFT	1	Rp90.500
31	01500-0620A-000	BOLT, SHIFT LEVER	1	Rp4.500
32	37720-20G10-000 SUB: 37720B20G00N000	BASE ASSY, GEAR SHIFT	1	Rp42.500
33	09209-05011-000 SUB: 09209B05011N000	CONTACT, GEAR POSITION	1	Rp5.500
34	09280-21008-000 SUB: 09280-21008L000	O RING, GEAR SHIFT (D:2.5,ID:21.0)	1	Rp2.500
35	09440-04010-000 SUB: 09440B04010N000	SPRING, GEAR SHIFT	1	Rp3.000
36	09138-05018-000 SUB: 09138B05018N000	SCREW, GEAR SHIFT (5X16)	2	Rp7.000
