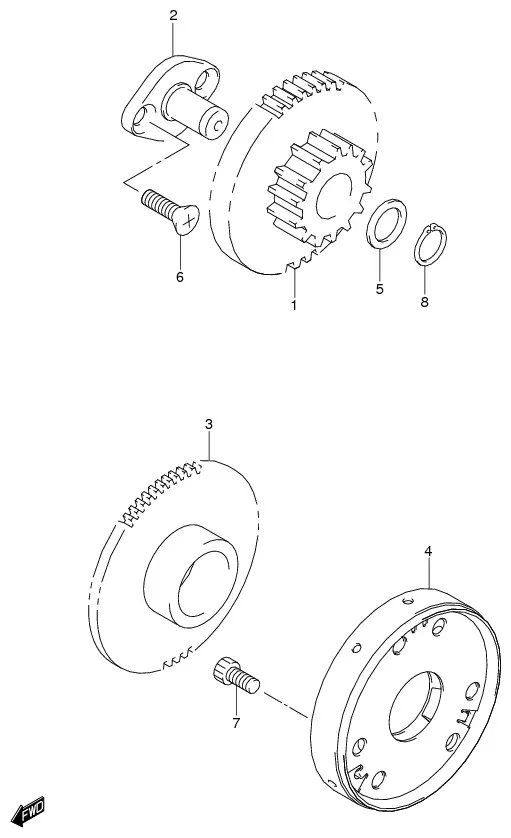

FIG.6 STARTER CLUTCH

FIG.6 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-45H10-000
SUB: 12611B45H00N000		 GEAR, STARTER IDLE 1 Rp76.500
2 12612-45H00-000
SUB: 12612B45H00N000		 SHAFT, STARTER IDLE GEAR 1 Rp58.500
3 12620-45H00-000
SUB: 12620B45H00N000		 GEAR, STARTER CLUTCH 1 Rp153.000
4 12630-45H00-000
SUB: 12630B45H00N000		 CLUTCH, STARTER ONE WAY 1 Rp194.500
5 09160-13010-000 WASHER 1 Rp12.500
6 02122-0616A-000
SUB: 02122B0616AN000		 SCREW 2 Rp3.500
7 07130-0612A-000
SUB: 07130B0612AN000		 BOLT 3 Rp3.500
8 08331-31139-000 CIRCLIP 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
