SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CAM SHAFT/VALVE FIG.8 CAM CHAIN FIG.9 CARBURETOR FIG.10 AIR CLEANER FIG.11 MUFFLER FIG.12 OIL PUMP FIG.13 2ND AIR FIG.14 CLUTCH FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FIG.17 KICK STARTER

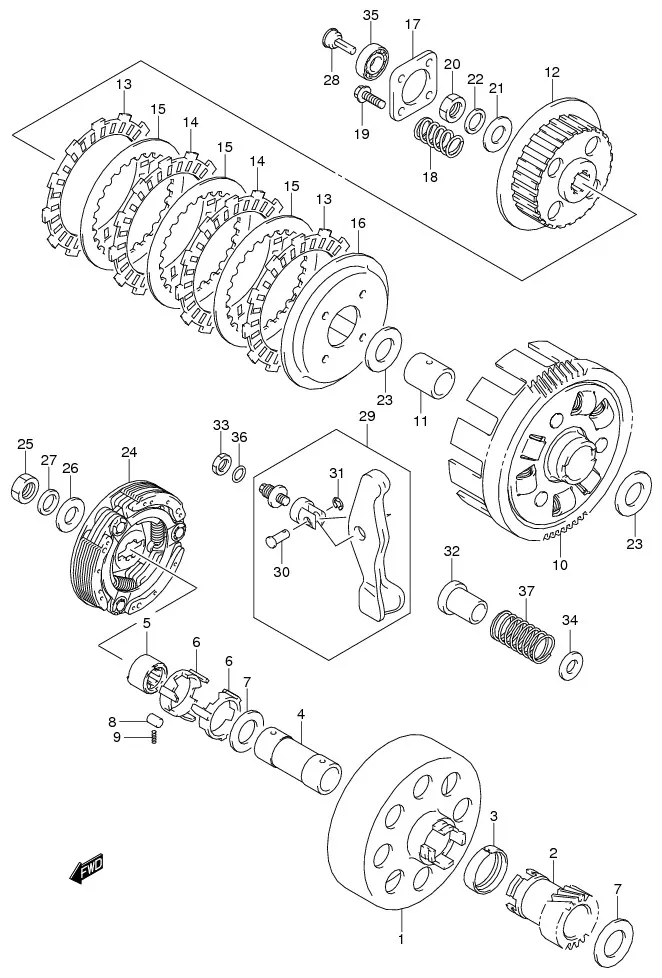

FIG.14 CLUTCH

No	No. Part	Description	Qty	Price Per Pcs
1	21102-23FB0-000 SUB: 21102B23F60N000	HOUSING, CLUTCH 1ST	1	Rp222.000
2	DISCONTINUE SUB: 21111B20G00N000	GEAR, PRIMARY DRIVE	1	-
3	21114-23F00-000 SUB: 21114B23F00N000	RING, PRIMARY DRIVE GEAR	1	Rp34.500
4	DISCONTINUE SUB: 21119B23F30N000	SPACER, PRIMARY DRIVE	1	-
5	21631-21D02-000 SUB: 21631B21D02N000	RACE, ONE WAY CLUTCH INR	1	Rp66.500
6	21652-23F00-000 SUB: 21652B23F00N000	RETAINER, ONE WAY CLUTCH	2	Rp8.500
7	09181-18002-000	WASHER, PRI DRIVE GEAR	2	Rp10.000
8	09261-07006-000 SUB: 09261B07006N000	ROLLER, ONE WAY CLUTCH	3	Rp4.000
9	09440-02002-000 SUB: 09440B02002N000	SPRING, ONE WAY CLUTCH	3	Rp3.000
10	21200-45H10-000 SUB: 21200B45H10N000	GEAR ASSY, PRIMARY DRIVEN	1	Rp346.000
11	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRIMARY DRIVEN GEAR	1	Rp25.000
12	21411-09G30-000 SUB: 21411B09G30N000	HUB, CLUTCH SLEEVE	1	Rp114.000
13	21441-16H00-000 SUB: 21441B16H00N000	PLATE, CLUTCH DRIVE NO.1	2	Rp35.000
14	21441-28G00-000 SUB: 21441B28G00N000	PLATE, CLUTCH DRIVE NO.2	2	Rp37.500
15	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
16	21461-09G00-000 SUB: 21461B09G00N000	DISC, CLUTCH PRESSURE	1	Rp35.000
17	21465-45H00-000 SUB: 21465B45H00N000	PLATE, RELEASE	1	Rp8.500
18	09440-18035-000 SUB: 09440B18035N000	SPRING, CLUTCH	4	Rp6.000
19	21482-09G00-000 SUB: 21482B09G00N000	BOLT, CLUTCH SPRING	4	Rp3.000
20	09140-14022-000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
21	09160-14046-XC0	WASHER, CLUTCH SLEEVE HUB	1	Rp25.500
22	09164-14011-000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
23	09181-17018-000	WASHER, PRI DRIVEN GEAR THRUST	2	Rp8.000
24	21501-23F50-000 SUB: 21501B23F50N000	CLUTCH ASSY, SHOE	1	Rp256.500
28	23121-09G01-000 SUB: 23121B09G01N000	PIECE, CLUTCH PUSH	1	Rp11.500
29	23220-23F20-000 SUB: 23220B23F20N000	ARM, CLUTCH RELEASE	1	Rp165.500
30	09208-07005-000 SUB: 09208B07005N000	.PIN, CLUTCH RELEASE ARM	1	Rp9.500
31	08332-1105A-000	.E-RING, CLUTCH RELEASE	1	Rp11.500
32	23234-23F10-000 SUB: 23234B23F10N000	SPACER, RELEASE ARM	1	Rp24.000
33	09140-12051-000 SUB: 09140B12051N000	NUT, CLUTCH RELEASE ADJUST	1	Rp10.000
34	DISCONTINUE SUB: 09160B10154N000	WASHER, RELEASE ARM SPRING	1	-
35	09262-15032-000 SUB: 09262B15032N000	BEARING, PUSH PIECE THRUST	1	Rp40.500
36	09280-12004-000 SUB: 09280B12004N000	O-RING, RELEASE ADJUST (D:1.9,ID:11.8)	1	Rp2.500
37	DISCONTINUE SUB: 09440B19025N000	SPRING, CLUTCH RELEASE	1	-
