SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

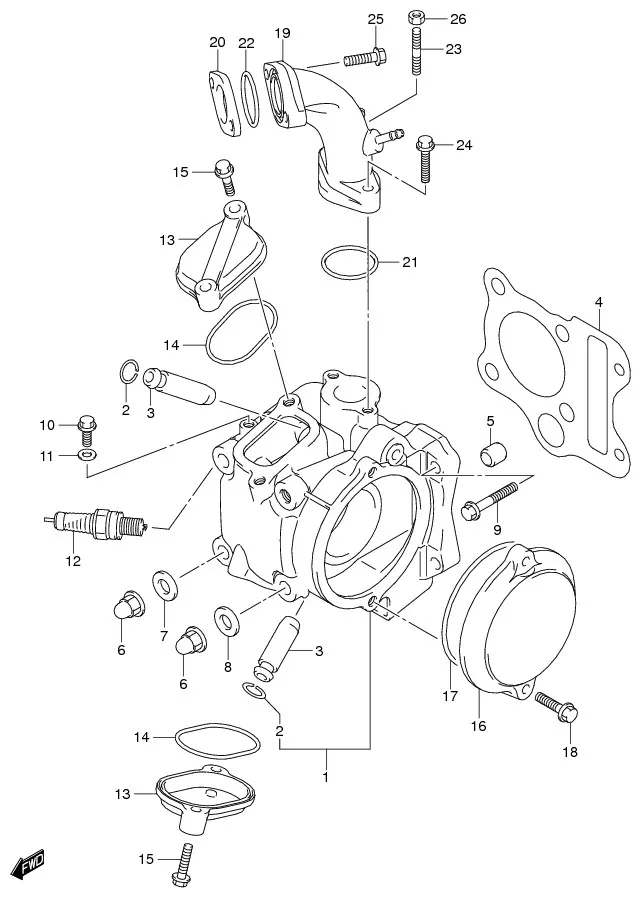

FIG.1 CYLINDER HEAD

FIG.1 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B45H00N000		 HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000		 .RING 2 Rp3.000
3 11115-09G10-000
SUB: 11115B09G20N000		 GUIDE, VALVE (OS:0.3) 2 Rp18.000 OPT
4 11141-45H00-000
SUB: 11141B45H00N000		 GASKET, CYLINDER HEAD 1 Rp17.000
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
6 09159-08137-000 NUT 4 Rp11.000
7 09168-08021-000
SUB: 09168B08021N000		 GASKET 2 Rp5.000
8 09160-08121-000
SUB: 09160-08120-000		 GASKET 2 Rp6.500
9 09103-06501-000 BOLT, CYLINDER HEAD (6X100) 2 Rp9.000
10 01547-0610A-000
SUB: 01547B0612AN000		 PLUG 2 Rp3.000
11 09168-06004-000
SUB: 09168B06004N000		 GASKET 2 Rp2.500
12-2 09482-00810-000
SUB: 09482-00810L000		 SPARK PLUG (ND,U20FS-U) 1 Rp18.500
12-1 09482-00710-000
SUB: 09482-00710L000		 SPARK PLUG (NGK,C6HSA) 1 Rp24.500
13 DISCONTINUE
SUB: 11175B28G40N000		 CAP, INSPECTION 2 -
14 09280-50007-000
SUB: 09280B50007N000		 O RING, INSPECTION CAP (D:2.4,ID:33.6X48.6) 2 Rp4.000
15 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 4 Rp6.500
16 DISCONTINUE
SUB: 11121B23F01N000		 COVER, CYLINDER HEAD LH 1 -
17 09280-84002-000
SUB: 09280B84002N000		 O RING (D:2.4,ID:84.6) 1 Rp4.500
19 13110-45H20-000
SUB: 13110B45H20N000		 PIPE, INTAKE 1 Rp258.000
20 13129-20G00-000 INSULATOR, CARBURETOR 1 Rp13.500
21 09280-24011-000
SUB: 09280B24011N000		 O RING 1 Rp11.000
22 09280-26011-000
SUB: 09280B26011N000		 O RING 1 Rp8.000
23 01421-0620A-000 BOLT, CYLINDER HEAD STUD 1 Rp3.500
24 01547-0625A-000
SUB: 01547B0625AN000		 BOLT, INTAKE HEAD 1 Rp6.500
26 08310-0006A-000 NUT, INTAKE PIPE 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
