SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

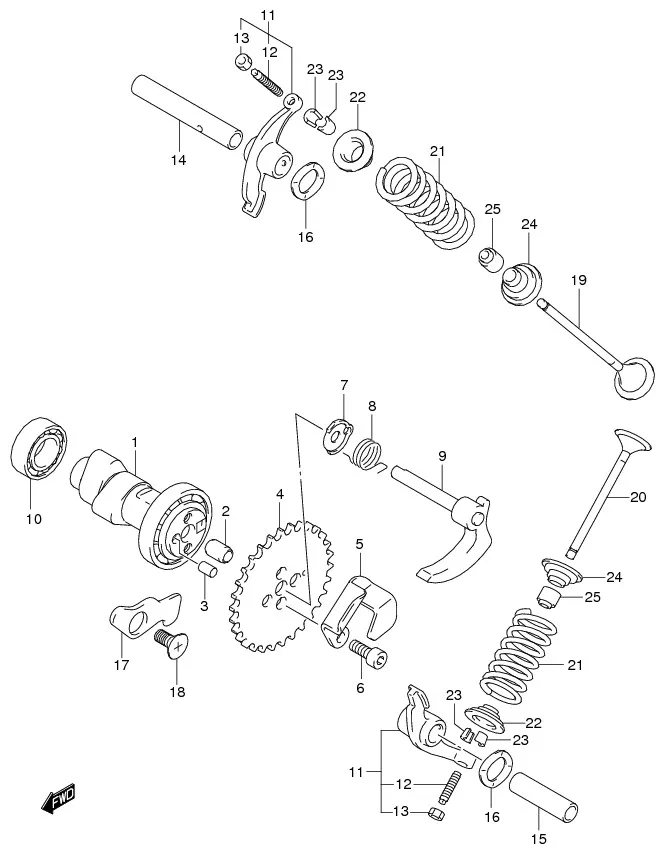

FIG.7 CAM SHAFT/VALVE

FIG.7 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-45H10-000
SUB: 12710B45H10N000		 CAM SHAFT COMP 1 Rp211.000
2 09206-08008-000
SUB: 09206B08008N000		 PIN 1 Rp4.000
3 09261-05005-000 PIN 1 Rp3.000
4 DISCONTINUE
SUB: 12741B16H00N000		 SPROCKET, CAM SHAFT 1 -
5 12954-09G10-000
SUB: 12954B09G20N000		 STOPPER, DECOMP CAM 1 Rp25.000
6 09106-05028-000
SUB: 09106B05028N000		 BOLT 2 Rp6.500
7 12955-33G00-000
SUB: 12955B33G00N000		 WASHER, DECOMP CAMSHAFT 1 Rp11.500
8 12725-20G00-000
SUB: 12725B20G00N000		 SPRING, DECOMP CAM 1 Rp3.000
9 DISCONTINUE
SUB: 12951B20G01N000		 CAM, DECOMPRESSION 1 -
10 09262-15041-000
SUB: 09262B15041N000		 BEARING 1 Rp38.500
11 12840-28G50-000
SUB: 12840B28G50N000		 ARM, VALVE ROCKER 2 Rp110.500
12 12842-49201-000 .SCREW, ADJUSTING 2 Rp30.500
13 12843-27A00-000 .NUT, ADJUSTING 2 Rp19.000
14 DISCONTINUE
SUB: 12861B45H00N000		 SHAFT, ROCKER ARM INTAKE 1 -
15 12871-45H00-000
SUB: 12871B45H00N000		 SHAFT, ROCKER ARM EXHAUST 1 Rp15.500
16 09164-10017-000
SUB: 09164-10012-000		 WASHER 2 Rp10.500
17 DISCONTINUE
SUB: 12862B28G00N000		 RETAINER 1 -
18 02122-0612A-000 SCREW 1 Rp3.500
19 12911-45H00-000
SUB: 12911B45H00N000		 VALVE, INTAKE 1 Rp35.000
20 12912-45H00-000
SUB: 12912B45H00N000		 VALVE, EXHAUST 1 Rp53.500
21 12921-28G40-000
SUB: 12921B28G50N000		 SPRING, VALVE 2 Rp21.000
22 12931-09G00-000
SUB: 12931B09G00N000		 RETAINER, VALVE SPRING 2 Rp13.000
23 12932-09G00-000 COTTER, VALVE 4 Rp4.500
24 12933-09G00-000
SUB: 12933B09G00N000		 SEAT, SPRING 2 Rp9.000
25 09289-05008-000
SUB: 09289B05008N000		 OIL SEAL 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
