SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

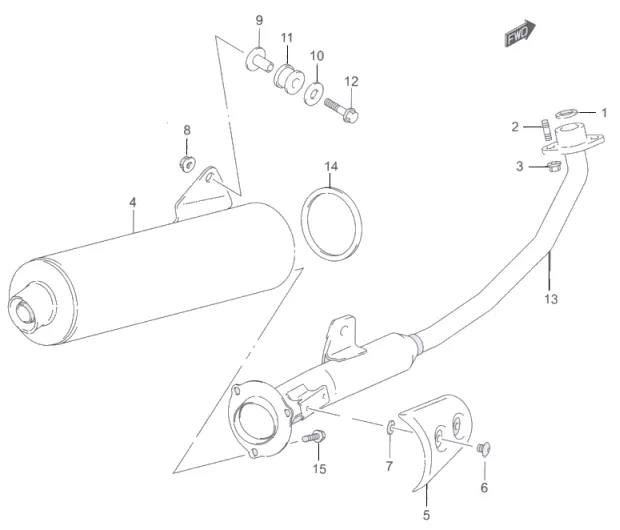

FIG.11 MUFFLER

FIG.11 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D00-000
SUB: 14181B09D00N000		 GASKET, EXHAUST PIPE 1 Rp4.500
2 09108-08280-000 BOLT, STUD 2 Rp8.000
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
4 14310-45H20-000
SUB: 14310B45H20N000		 BODY COMP MUFFLER 1 Rp2.020.500
5 DISCONTINUE
SUB: 14186B45H20N000		 COVER, EXHAUST PIPE 1 -
6 09139-06091-000 SCREW 2 Rp8.500
7 DISCONTINUE
SUB: 09168B06L02N000		 GASKET, EXHAUST PIPE COVER 2 -
9 DISCONTINUE
SUB: 09180B08L01N000		 SPACER, MUFFLER SPRT 2 -
10 09160-08149-000
SUB: 09160B08149N000		 WASHER 2 Rp6.500
11 09320-12L01-000
SUB: 09320B12L01N000		 CUSHION 2 Rp31.500
12 01550-0840A-000 BOLT 2 Rp3.500
13 DISCONTINUE
SUB: 14150B45H20N000		 PIPE COMP, EXHAUST 1 -
14 14181-25G10-000
SUB: 14181B25G00N000		 GASKET, MUFFLER JOINT 1 Rp8.500
15 01550-0620B-000
SUB: 01550B0620BN000		 BOLT, MUFFLER JOINT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
