SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CAM SHAFT/VALVEFIG.8 CAM CHAINFIG.9 CARBURETORFIG.10 AIR CLEANERFIG.11 MUFFLERFIG.12 OIL PUMPFIG.13 2ND AIRFIG.14 CLUTCHFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTINGFIG.17 KICK STARTER

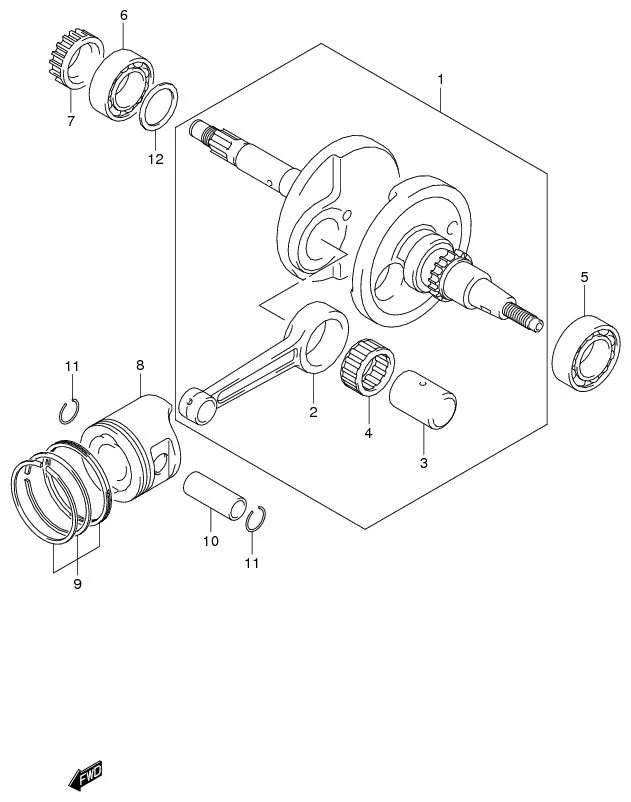

FIG.5 CRANKSHAFT

FIG.5 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12200B45H30N000		 CRANKSHAFT ASSY 1 -
2 12161-46G50-000
SUB: 12161B46G00N000		 .ROD, CONNECTING 1 Rp87.000
3 12211-20G00-0A0
SUB: 12211B20G00N0A0		 .PIN, CRANK 1 Rp56.500
4 09263-28040-0B0 .BEARING 1 Rp50.500
5 09262-35L04-000
SUB: 09262B35L03N000		 BEARING, LH 1 Rp64.000
6 09262-25L02-000
SUB: 09262B25165N000		 BEARING, RH 1 Rp73.500
7 16321-23F01-000 GEAR, OIL PUMP DRIVE 1 Rp24.000
8 12111-45H00-0F0
SUB: 12111B45H00N0F0		 PISTON (STD) 1 Rp120.500
9 12140-45H11-0F0
SUB: 12140B45H10N0F0		 RING SET, PISTON 1 Rp44.000
10 12151-20G00-000
SUB: 12151B20G00N000		 PIN, PISTON 1 Rp18.000
11 09381-14001-000
SUB: 09381B14001N000		 CIRCLIP 2 Rp2.500
12-15 DISCONTINUE
SUB: 09181-25181-000		 SHIM (T:1.30) 1 -
12-14 09181-25179-000 SHIM (T:1.25) 1 Rp24.500
12-13 DISCONTINUE
SUB: 09181-25063-000		 SHIM (T:1.20) 1 -
12-12 09181-25062-000 SHIM (T:1.15) 1 Rp19.500
12-11 09181-25061-000 SHIM (T:1.10) 1 Rp19.000
12-10 09181-25060-000 SHIM (T:1.05) 1 Rp18.500
12-9 09181-25167-000
SUB: 09181-25059-000		 SHIM (T:1.00) 1 Rp18.000
12-8 09181-25058-000 SHIM (T:0.95) 1 Rp18.000
12-7 09181-25164-000
SUB: 09181-25057-000		 SHIM (T:0.90) 1 Rp19.500
12-6 09181-25056-000 SHIM (T:0.85) 1 Rp18.500
12-5 09181-25162-000 SHIM (T:0.80) 1 Rp17.000
12-4 09181-25054-000 SHIM (T:0.75) 1 Rp18.000
12-3 09181-25160-000 SHIM (T:0.70) 1 Rp19.500
12-2 09181-25052-000 SHIM (T:0.65) 1 Rp18.000
12-1 09181-25051-000 SHIM (T:0.60) 1 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
