GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.35 (1-D-13) FRAME FIG.36 (1-D-14) STAND FIG.37 (1-D-15) FOOTREST FIG.38 (1-E-2) FUEL TANK FIG.39 (1-E-3) FUEL TANK SIDE COVER FIG.40 (1-E-4) FRAME COVER FIG.41 (1-E-5) FRAME BODY COVER FIG.42 (1-E-6) HOLDER FIG.43 (1-E-7) HEADLAMP HOUSING FIG.44 (1-E-8) FRONT FENDER FIG.45 (1-E-9) HANDLEBAR FIG.46 (1-E-10) HANDLE LEVER FIG.47 (1-E-11) REAR FENDER FIG.48 (1-E-12) LABEL FIG.49 (1-E-13) SEAT FIG.50 (1-E-14) FRONT FORK DAMPER FIG.51 (1-E-15) STEERING STEM FIG.52 (1-F-2) FRONT WHEEL FIG.53 (1-F-3) FRONT CALIPER FIG.54 (1-F-4) FRONT BRAKE HOSE FIG.55 (1-F-5) FRONT MASTER CYLINDER FIG.56 (1-F-6) REAR SWINGINGARM FIG.57 (1-F-7) REAR CUSHION LEVER FIG.58 (1-F-8) REAR WHEEL FIG.59 (1-F-9) REAR CALIPER FIG.60 (1-F-10) REAR MASTER CYLINDER FIG.61 (1-F-11) OPTIONAL FIG.62 (1-F-12) METER VISOR SET (OPTIONAL)FIG.63 (1-F-13) COWLING (OPTIONAL)

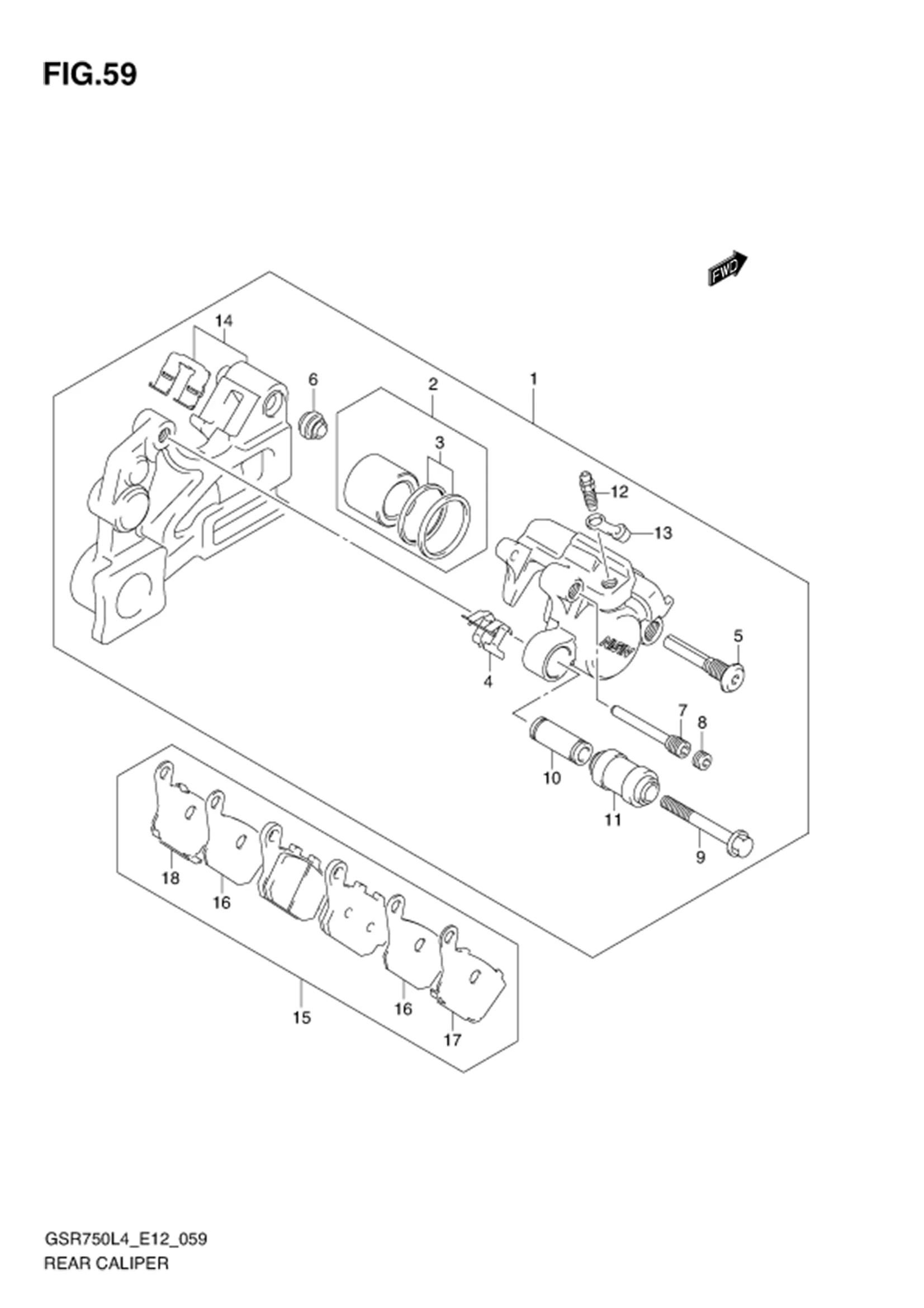

FIG.59 (1-F-9) REAR CALIPER

FIG.59 (1-F-9) REAR CALIPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	69185-04F00-000	?SLEEVE	1	Rp118.500
	69134-06G00-000	?RETAINER	1	Rp81.000
	69133-06G00-000	?RETAINER	1	Rp81.000
	69132-08J00-000	?INSULATOR	2	Rp110.000
	69100-08850-000	PAD	1	Rp666.000
	69150-08J00-000	?BRACKET	1	Rp1.266.500
	59122-46H00-000	?CAP, BLEEDER	1	Rp32.500
	59121-01A00-000	?BLEEDER	1	Rp14.500
	69186-04F00-000	?BOOT, SLEEVE	1	Rp94.000
	69100-08J00-999	CALIPER ASSY, REAR	1	Rp4.002.500
	69182-04F00-000	?BOLT	1	Rp68.000
	59146-08J00-000	?PIN, PLUG	1	Rp61.000
	69141-40F00-000	?PIN, PAD	1	Rp228.000
	59303-14500-000	?BOOT	1	Rp12.500
	DISCONTINUE SUB: 59305-36E00-000	?PIN, BOLT	1	-
	69115-06G00-000	?SPRING, PAD	1	Rp95.500
	69100-04820-000	??SEAL SET, PISTON	1	Rp114.000
	69100-04810-000	?PISTON SET	1	Rp536.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
