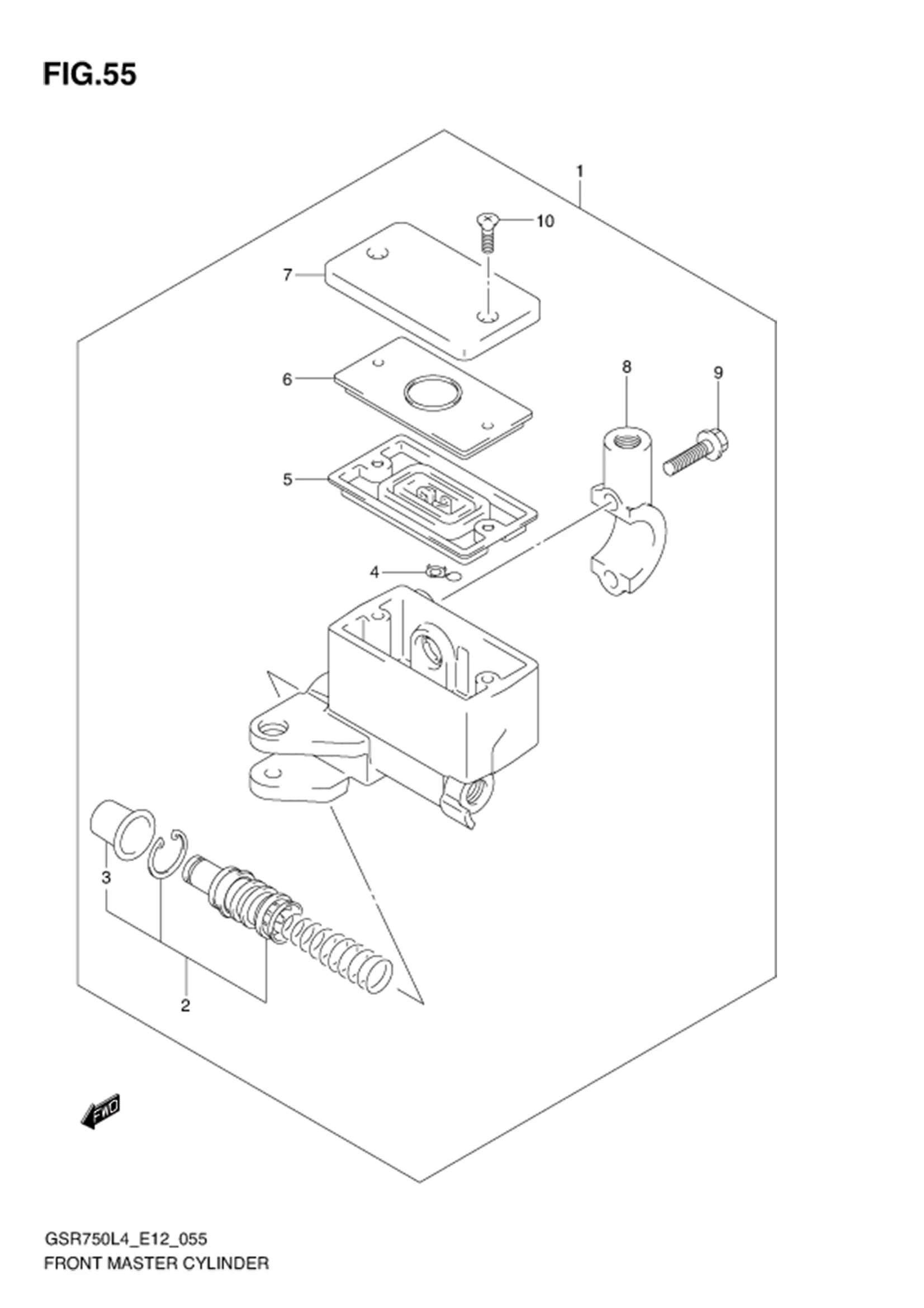

FIG.55 (1-F-5) FRONT MASTER CYLINDER

FIG.55 (1-F-5) FRONT MASTER CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	59600-10G30-000	CYLINDER ASSY, FRONT MASTER	1	Rp2.024.000
	59600-45870-000	?PISTON	1	Rp270.000
	59666-44300-000	??BOOT	1	Rp16.000
	59664-32F00-000	?PROTECTOR	1	Rp20.500
	DISCONTINUE SUB: 59667-49460-000	?DIAPHRAGM	1	-
	DISCONTINUE SUB: 59668-41C00-000	?PLATE, DIAPHRAGM	1	-
	59669-10G00-000	?CAP	1	Rp220.500
	59671-32F00-000	?HOLDER	1	Rp147.000
	59675-02FA0-000	?BOLT (6X22)	2	Rp9.000
	69689-49300-000	?SCREW, RESERVOIR CAP	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
