GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.35 (1-D-13) FRAME FIG.36 (1-D-14) STAND FIG.37 (1-D-15) FOOTREST FIG.38 (1-E-2) FUEL TANK FIG.39 (1-E-3) FUEL TANK SIDE COVER FIG.40 (1-E-4) FRAME COVER FIG.41 (1-E-5) FRAME BODY COVER FIG.42 (1-E-6) HOLDER FIG.43 (1-E-7) HEADLAMP HOUSING FIG.44 (1-E-8) FRONT FENDER FIG.45 (1-E-9) HANDLEBAR FIG.46 (1-E-10) HANDLE LEVER FIG.47 (1-E-11) REAR FENDER FIG.48 (1-E-12) LABEL FIG.49 (1-E-13) SEAT FIG.50 (1-E-14) FRONT FORK DAMPER FIG.51 (1-E-15) STEERING STEM FIG.52 (1-F-2) FRONT WHEEL FIG.53 (1-F-3) FRONT CALIPER FIG.54 (1-F-4) FRONT BRAKE HOSE FIG.55 (1-F-5) FRONT MASTER CYLINDER FIG.56 (1-F-6) REAR SWINGINGARM FIG.57 (1-F-7) REAR CUSHION LEVER FIG.58 (1-F-8) REAR WHEEL FIG.59 (1-F-9) REAR CALIPER FIG.60 (1-F-10) REAR MASTER CYLINDER FIG.61 (1-F-11) OPTIONAL FIG.62 (1-F-12) METER VISOR SET (OPTIONAL)FIG.63 (1-F-13) COWLING (OPTIONAL)

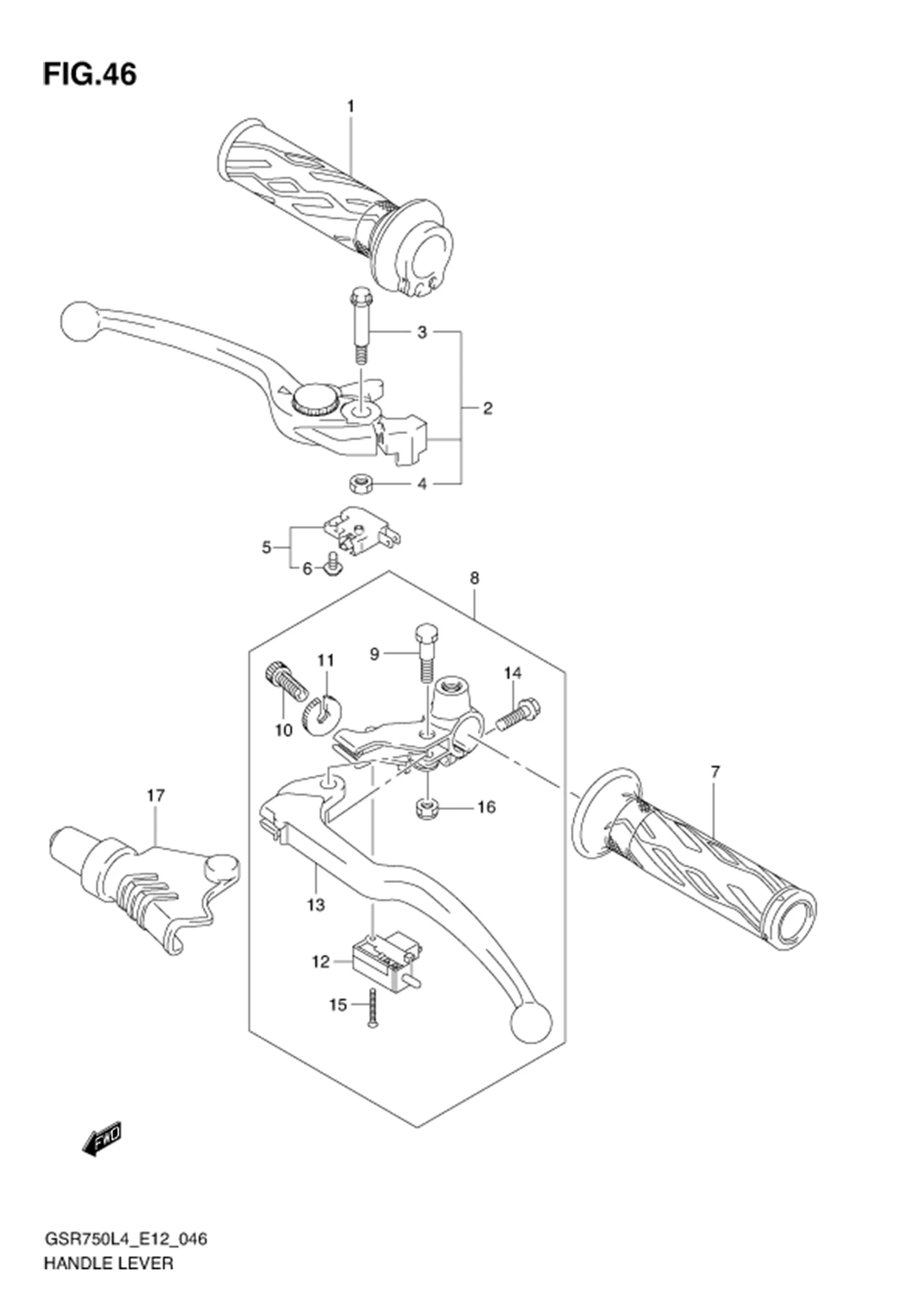

FIG.46 (1-E-10) HANDLE LEVER

FIG.46 (1-E-10) HANDLE LEVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	57431-21D11-000 SUB: 57431-45C01-000	?BOLT, PIVOT	1	Rp100.000
	57661-33E01-000 SUB: 57661-33E00-000	COVER, CLUTCH LEVER	1	Rp63.000
	08319-2106B-000	?NUT	1	Rp4.000
	02122-0320A-000	?SCREW	1	Rp14.500
	01547-0620B-000	?BOLT	1	Rp6.500
	57621-40F00-000	?LEVER, CLUTCH	1	Rp253.500
	57560-05A00-000	?SWITCH, CLUTCH	1	Rp81.500
	57442-45C00-000	?NUT, LOCK	1	Rp71.000
	57441-45C00-000	?ADJUSTER, WIRE	1	Rp75.500
	57110-21H02-000 SUB: 57110-21H01-000	GRIP, THROTTLE	1	Rp128.000
	57500-25D04-000 SUB: 57500-25D00-000	LEVER ASSY, CLUTCH	1	Rp556.500
	57211-21H01-000 SUB: 57211-21H00-000	GRIP, LH	1	Rp86.000
	DISCONTINUE SUB: 57465-17C00-000	?SCREW	1	-
	57460-14J02-000 SUB: 57460-14J01-000	SWITCH ASSY, FRONT BRAKE	1	Rp265.000
	08319-2106A-000	?NUT	1	Rp5.000
	57431-17H02-000	?BOLT, PIVOT	1	Rp55.500
	57300-44G12-000	LEVER ASSY, BRAKE	1	Rp665.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
