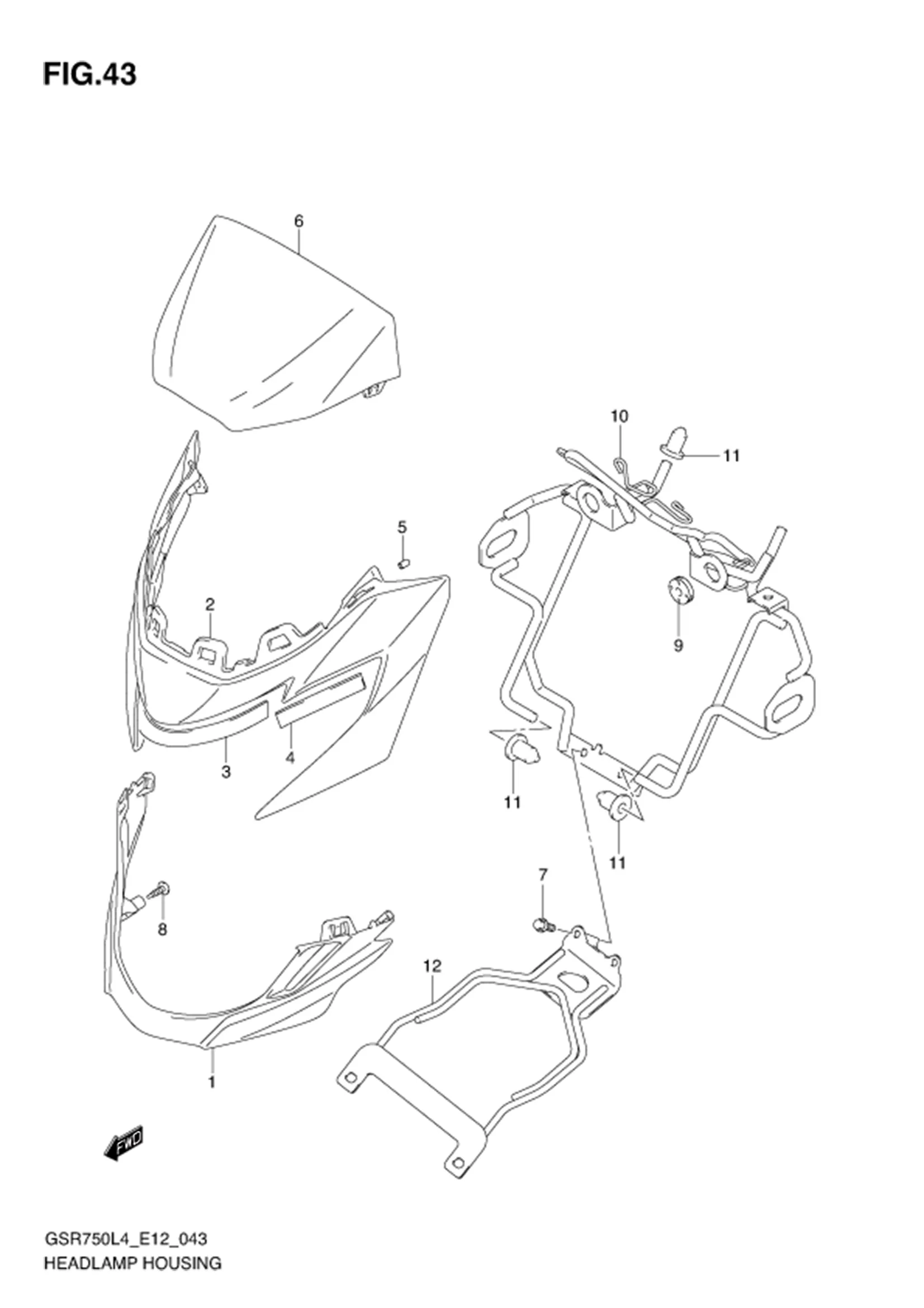

FIG.43 (1-E-7) HEADLAMP HOUSING

FIG.43 (1-E-7) HEADLAMP HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	51831-08J00-YMD	COVER, HEADLAMP LOWER (SILVER)	1	Rp835.000
	51821-08J00-YKY	COVER, HEADLAMP UPPER (BLUE)	1	Rp1.330.000
	51822-08J00-000	CUSHION, COVER UPPER	1	Rp59.500
	51823-08J00-000	CUSHION, COVER	2	Rp42.000
	44294-43H11-000 SUB: 44294-43H00-000	CUSHION, HEADLAMP COVER	4	Rp29.000
	51811-08J00-000	COVER, METER	1	Rp896.000
	01547-0616A-000	BOLT	2	Rp6.500
	09320-08028-000	CUSHION	2	Rp11.500
	51850-08J01-000 SUB: 51850-08J00-000	BRACE, HEADLAMP HOUSING	1	Rp4.958.500
	51831-21D00-000	CUSHION, BRACE	4	Rp4.000
	48190-08J00-000	BRACKET, FRONT LICENSE	1	Rp1.484.500
25	03541-0516A-000	SCREW	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
