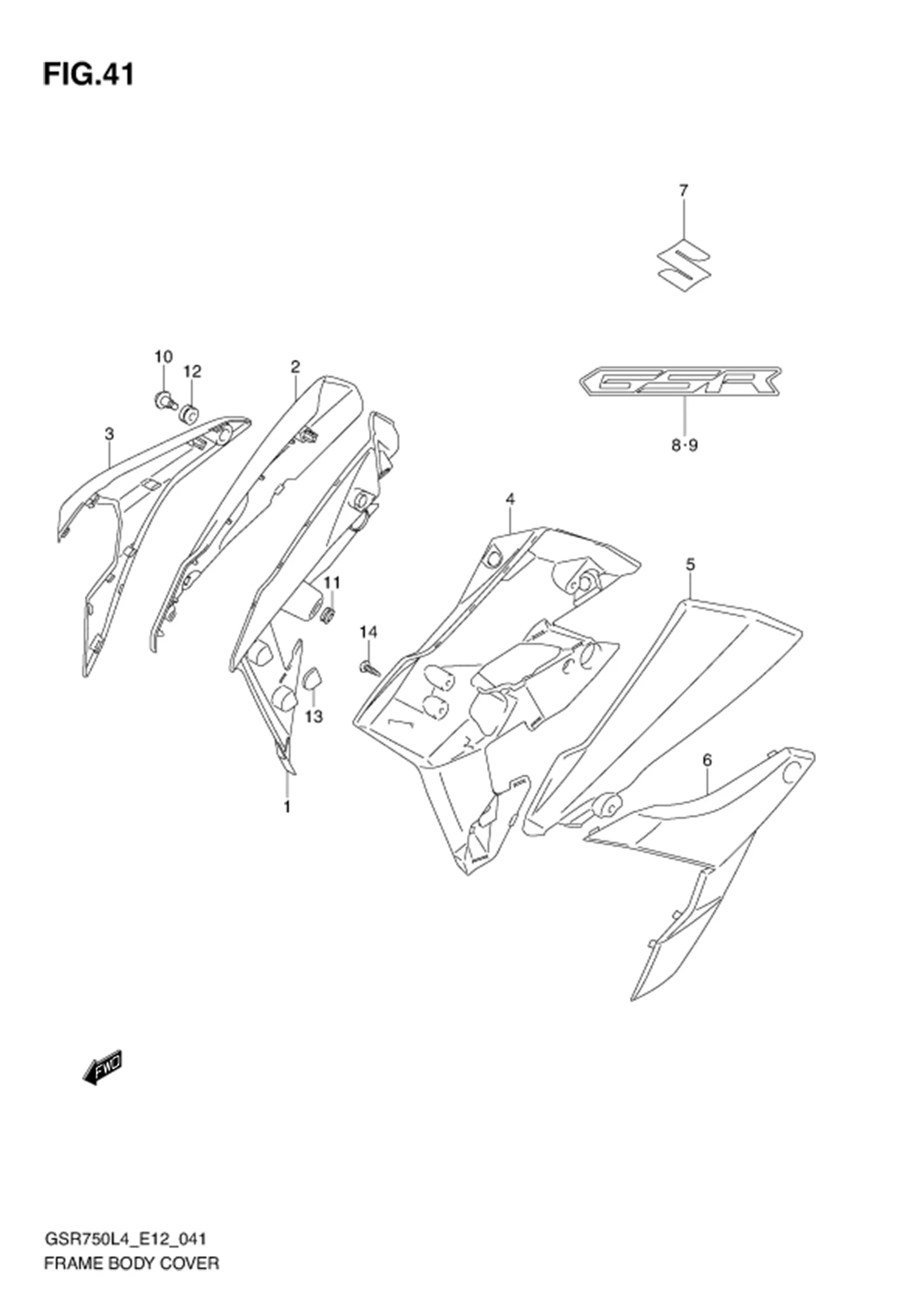

FIG.41 (1-E-5) FRAME BODY COVER

FIG.41 (1-E-5) FRAME BODY COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	47531-08J00-000	COVER, FRAME BODY INNER RH	1	Rp432.500
	47532-08J00-YKY	COVER, FRAME BODY RH (BLUE)	1	Rp537.000
	47533-08J00-YMD	COVER, FRAME BODY LOWER RH (SILVER)	1	Rp506.500
	47541-08J00-000	COVER, FRAME BODY INNER LH	1	Rp435.000
	47542-08J00-YKY	COVER, FRAME BODY LH (BLUE)	1	Rp537.000
	47543-08J00-YMD	COVER, FRAME BODY LOWER LH (SILVER)	1	Rp509.000
	68111-47HA0-000	EMBLEM, "S"	2	Rp275.000
	68661-08J10-AU4	EMBLEM, "GSR" RH (CHROME/BLUE)	1	Rp139.000
	68671-08J10-AU4	EMBLEM, "GSR" LH (CHROME/BLUE)	1	Rp139.000
	09139-06190-000	BOLT (6X20)	4	Rp7.000
	09320-08028-000	CUSHION	2	Rp11.500
	09320-09016-000	CUSHION	6	Rp4.000
	09329-18001-000	CUSHION	4	Rp13.500
25	03541-0516A-000	SCREW	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
