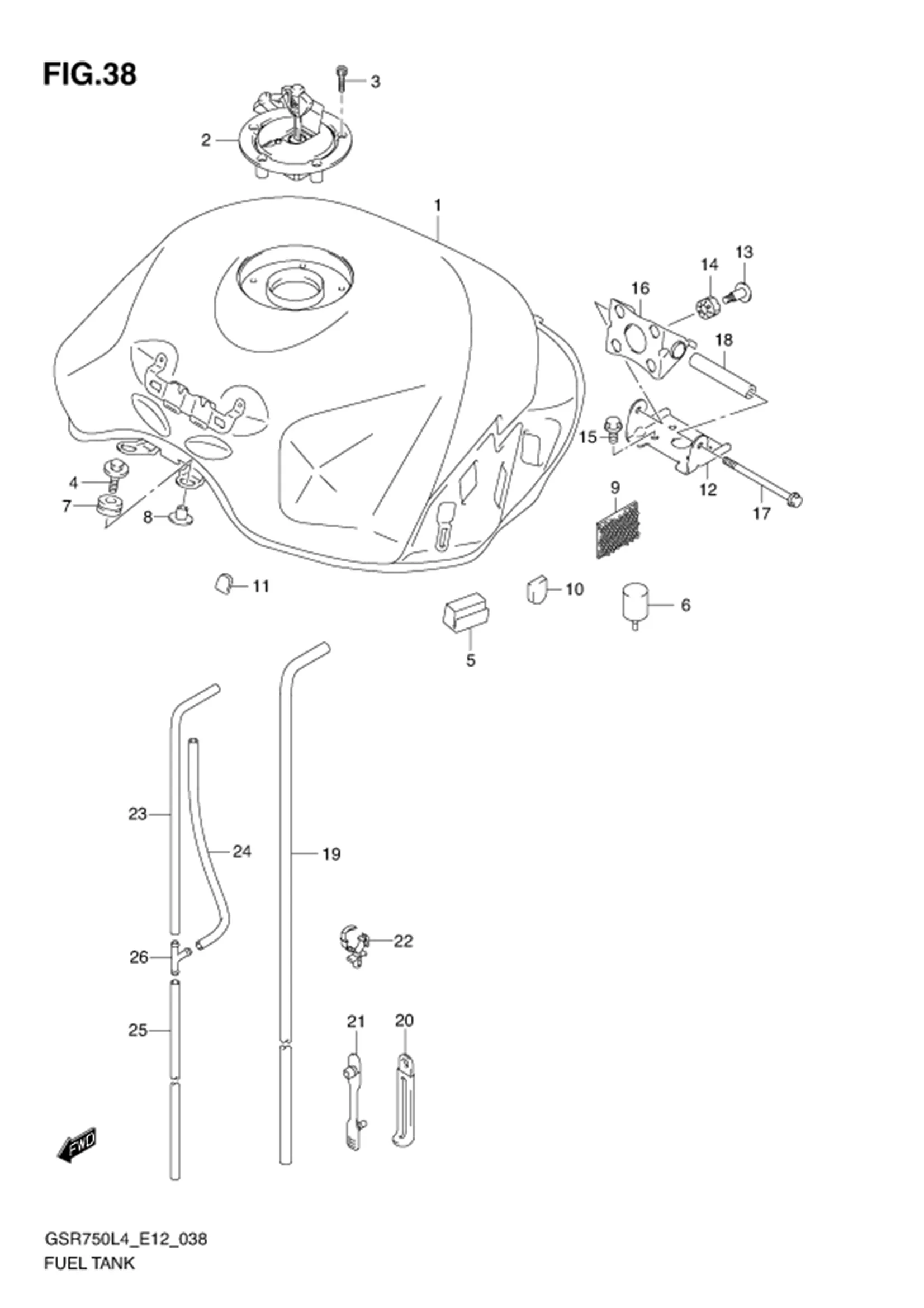

FIG.38 (1-E-2) FUEL TANK

FIG.38 (1-E-2) FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
09320-08071-000 CUSHION 4 Rp24.500
09367-06007-000 3 WAY 1 Rp30.500
09352-50823-600 HOSE (5X8.2X600) 1 Rp7.000
44424-15H10-000 HOSE, BREATHER NO.3 1 Rp83.500
44424-08J01-000 HOSE, BREATHER NO.1 1 Rp158.000
09403-18307-000 CLAMP 2 Rp19.000
DISCONTINUE
SUB: 09407-05406-000		 CLAMP (L:118) 1 -
44423-08J01-000 HOSE, FUEL TANK DRAIN 1 Rp207.500
44561-18G00-000 SPACER, FUEL TANK REAR 1 Rp120.500
07120-0695A-000 BOLT 1 Rp26.500
44530-41G00-000 BRACKET, FUEL TANK REAR 1 Rp211.500
01550-0612A-000 BOLT 4 Rp3.500
44100-08J01-YKY TANK ASSY, FUEL (BLUE) 1 Rp9.934.500
09139-06191-000 SCREW (6X22) 4 Rp31.000
44550-08J00-000 BRACKET, FUEL TANK REAR NO.2 1 Rp128.000
44543-08J00-000 CUSHION, TANK COVER CENTER 2 Rp44.500
44542-08J00-000 CUSHION, TANK COVER SIDE 2 Rp26.000
44572-13G00-000 FASTENER 4 Rp64.500
44512-16G00-000 SPACER, FUEL TANK FRONT 2 Rp52.000
44511-16G01-000
SUB: 44511-16G00-000		 CUSHION, FUEL TANK FRONT 2 Rp7.500
44542-41G00-000 CUSHION, FUEL TANK REAR 2 Rp53.500
44541-08J01-000
SUB: 44541-08J00-000		 CUSHION, FUEL TANK SIDE 2 Rp38.000
01560-0625A-000 BOLT 2 Rp14.000
09106-05017-000 BOLT (5X20) 3 Rp18.000
44200-16850-000 CAP SET, FUEL TANK 1 Rp1.421.500
5 DISCONTINUE
SUB: 09404-06433-000		 CLAMP (L:80) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
