GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.35 (1-D-13) FRAME FIG.36 (1-D-14) STAND FIG.37 (1-D-15) FOOTREST FIG.38 (1-E-2) FUEL TANK FIG.39 (1-E-3) FUEL TANK SIDE COVER FIG.40 (1-E-4) FRAME COVER FIG.41 (1-E-5) FRAME BODY COVER FIG.42 (1-E-6) HOLDER FIG.43 (1-E-7) HEADLAMP HOUSING FIG.44 (1-E-8) FRONT FENDER FIG.45 (1-E-9) HANDLEBAR FIG.46 (1-E-10) HANDLE LEVER FIG.47 (1-E-11) REAR FENDER FIG.48 (1-E-12) LABEL FIG.49 (1-E-13) SEAT FIG.50 (1-E-14) FRONT FORK DAMPER FIG.51 (1-E-15) STEERING STEM FIG.52 (1-F-2) FRONT WHEEL FIG.53 (1-F-3) FRONT CALIPER FIG.54 (1-F-4) FRONT BRAKE HOSE FIG.55 (1-F-5) FRONT MASTER CYLINDER FIG.56 (1-F-6) REAR SWINGINGARM FIG.57 (1-F-7) REAR CUSHION LEVER FIG.58 (1-F-8) REAR WHEEL FIG.59 (1-F-9) REAR CALIPER FIG.60 (1-F-10) REAR MASTER CYLINDER FIG.61 (1-F-11) OPTIONAL FIG.62 (1-F-12) METER VISOR SET (OPTIONAL)FIG.63 (1-F-13) COWLING (OPTIONAL)

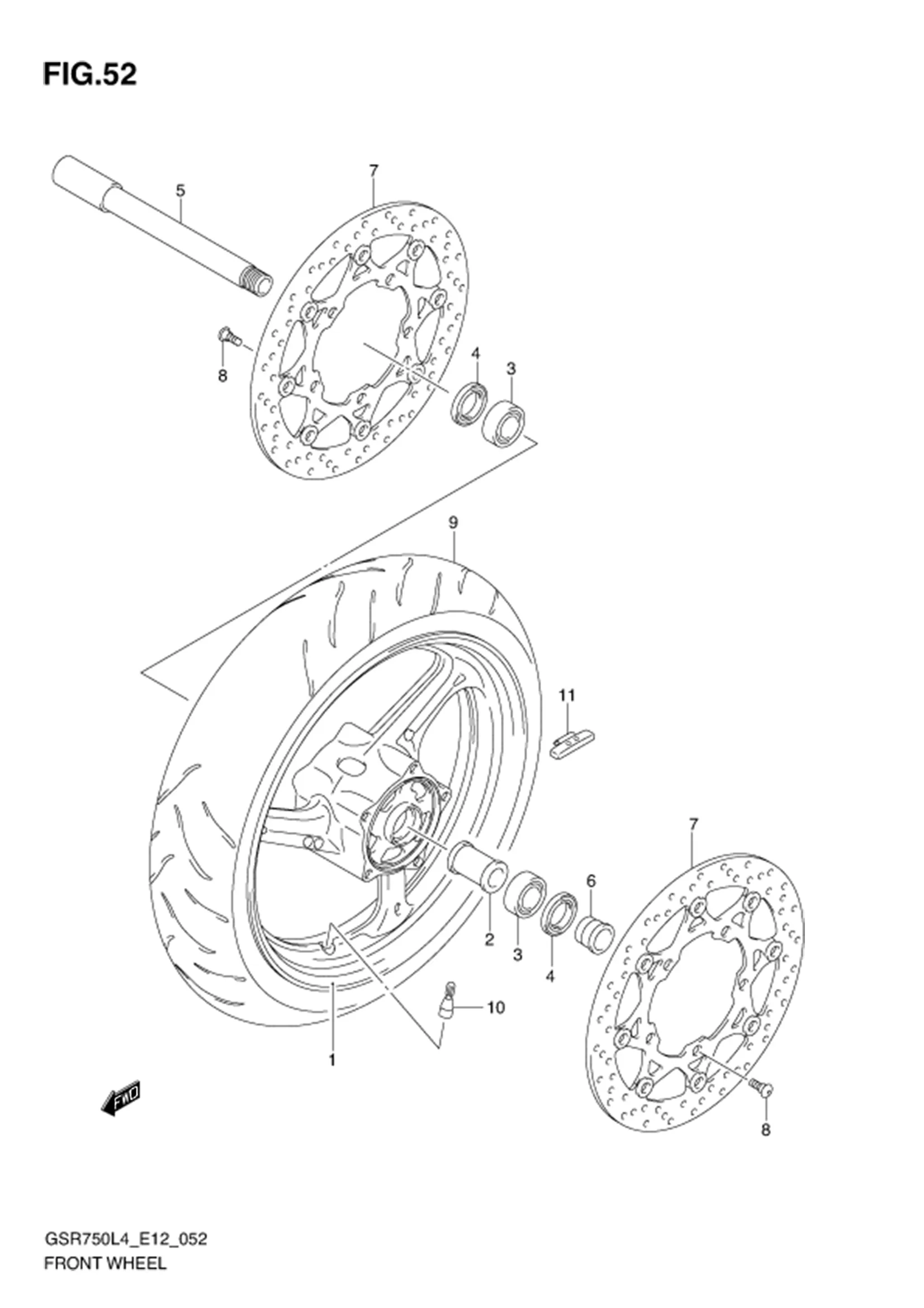

FIG.52 (1-F-2) FRONT WHEEL

FIG.52 (1-F-2) FRONT WHEEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	54111-44G20-019	WHEEL, FRONT (17M/CXMT3.50) (BLACK)	1	Rp6.709.000
	54731-44G00-000	SPACER, FRONT WHEEL BEARING	1	Rp346.000
	09262-22049-000 SUB: 09262-22035-000	BEARING (22X44X12)	2	Rp316.000
	09283-28028-000 SUB: 09283-28016-000	OIL SEAL (28X44X7.5)	2	Rp80.500
	54711-44G00-000	AXLE, FRONT	1	Rp1.262.000
	54751-44G00-000	SPACER, FRONT AXLE	1	Rp270.500
	59210-44G11-000	DISC, FRONT BRAKE	2	Rp2.647.500
	09106-08160-000	BOLT (8X21)	10	Rp26.500
	55110-08J00-000	TIRE, FRONT (120/70ZR17M/C 58W)	1	Rp4.089.500
	43130-24A00-000	VALVE ASSY, WHEEL RIM (TR412)	1	Rp50.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
