GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.35 (1-D-13) FRAME FIG.36 (1-D-14) STAND FIG.37 (1-D-15) FOOTREST FIG.38 (1-E-2) FUEL TANK FIG.39 (1-E-3) FUEL TANK SIDE COVER FIG.40 (1-E-4) FRAME COVER FIG.41 (1-E-5) FRAME BODY COVER FIG.42 (1-E-6) HOLDER FIG.43 (1-E-7) HEADLAMP HOUSING FIG.44 (1-E-8) FRONT FENDER FIG.45 (1-E-9) HANDLEBAR FIG.46 (1-E-10) HANDLE LEVER FIG.47 (1-E-11) REAR FENDER FIG.48 (1-E-12) LABEL FIG.49 (1-E-13) SEAT FIG.50 (1-E-14) FRONT FORK DAMPER FIG.51 (1-E-15) STEERING STEM FIG.52 (1-F-2) FRONT WHEEL FIG.53 (1-F-3) FRONT CALIPER FIG.54 (1-F-4) FRONT BRAKE HOSE FIG.55 (1-F-5) FRONT MASTER CYLINDER FIG.56 (1-F-6) REAR SWINGINGARM FIG.57 (1-F-7) REAR CUSHION LEVER FIG.58 (1-F-8) REAR WHEEL FIG.59 (1-F-9) REAR CALIPER FIG.60 (1-F-10) REAR MASTER CYLINDER FIG.61 (1-F-11) OPTIONAL FIG.62 (1-F-12) METER VISOR SET (OPTIONAL)FIG.63 (1-F-13) COWLING (OPTIONAL)

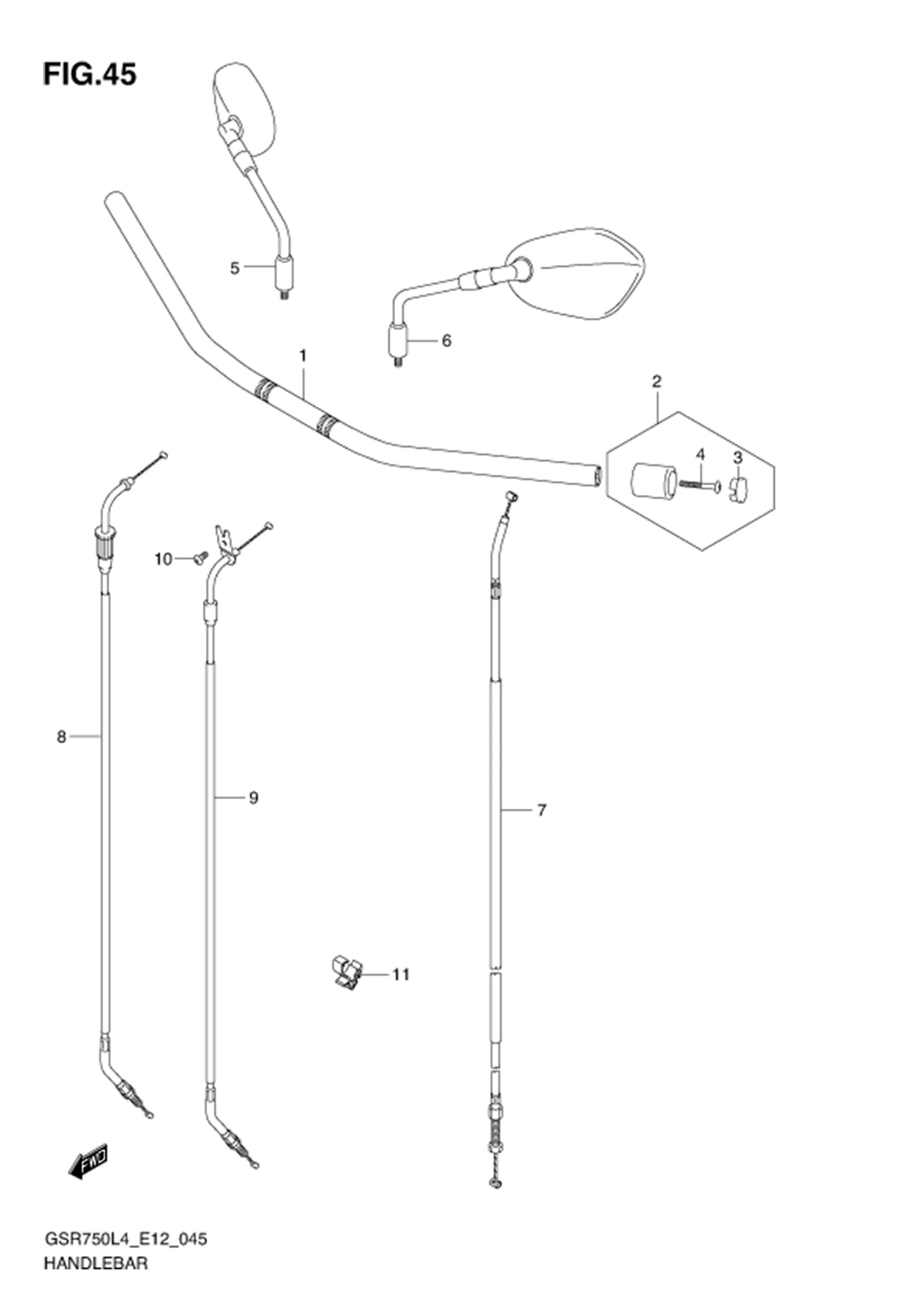

FIG.45 (1-E-9) HANDLEBAR

FIG.45 (1-E-9) HANDLEBAR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	56110-08J00-000	HANDLEBAR	1	Rp1.895.000
	56200-33871-000 SUB: 56200-33870-000	BALANCER SET, HANDLEBAR	2	Rp370.000
	56279-33E00-000	?CAP	2	Rp26.000
	02142-0640A-000	?SCREW	2	Rp16.500
	56500-08J02-000 SUB: 56500-08J00-000	MIRROR ASSY, REAR VIEW RH	1	Rp951.000
	56600-08J02-000 SUB: 56600-08J00-000	MIRROR ASSY, REAR VIEW LH	1	Rp951.000
	58200-08J00-000	CABLE ASSY, CLUTCH	1	Rp246.000
	58300-08J01-000 SUB: 58300-08J00-000	CABLE ASSY, THROTTLE NO.1	1	Rp418.500
	58300-08J11-000 SUB: 58300-08J10-000	CABLE ASSY, THROTTLE NO.2	1	Rp388.500
	DISCONTINUE SUB: 09125-05042-000	SCREW (5X10)	1	-
	09403-11321-000	CLAMP	1	Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
