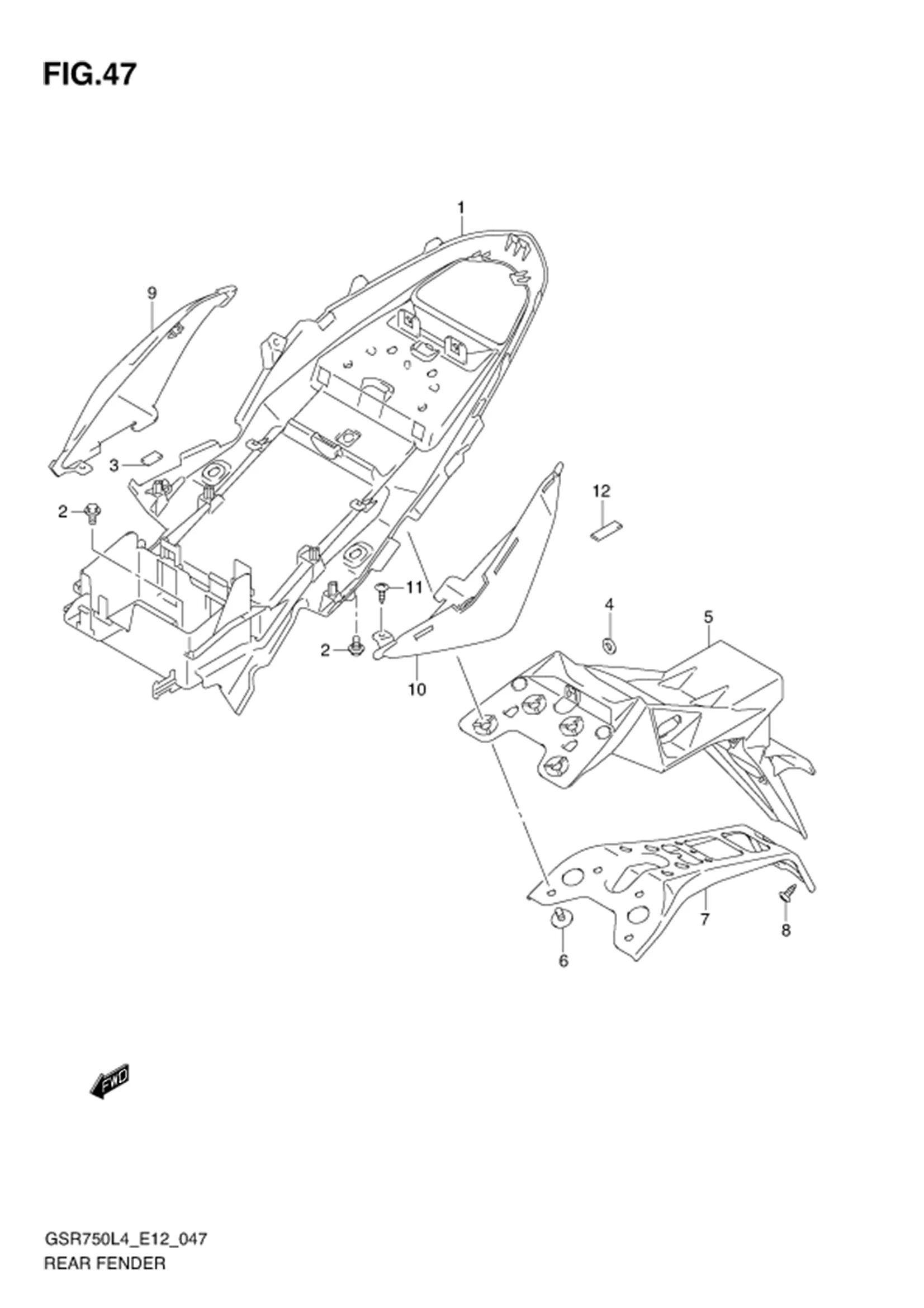

FIG.47 (1-E-11) REAR FENDER

FIG.47 (1-E-11) REAR FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	63111-08J00-000	FENDER, REAR FRONT	1	Rp982.000
	09111-06107-000	BOLT (6X12)	3	Rp4.000
	44612-13600-000	CUSHION	4	Rp27.000
	09160-06027-000 SUB: 09160-06077-000	WASHER (6.5X20X1.2)	2	Rp6.500
	63113-08J00-000	FENDER, REAR REAR	1	Rp1.011.500
	09116-06168-000	BOLT (6X16)	4	Rp15.000
	63131-08J00-000	BRACKET, REAR FENDER REAR	1	Rp878.000
	63171-08J00-000	COVER, REAR FENDER RH	1	Rp124.000
	63181-08J00-000	COVER, REAR FENDER LH	1	Rp124.000
	94443-06G00-000	TAPE, REAR FENDER	2	Rp24.500
21	03541-0616A-000	SCREW	2	Rp13.500
25	03541-0516A-000	SCREW	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
