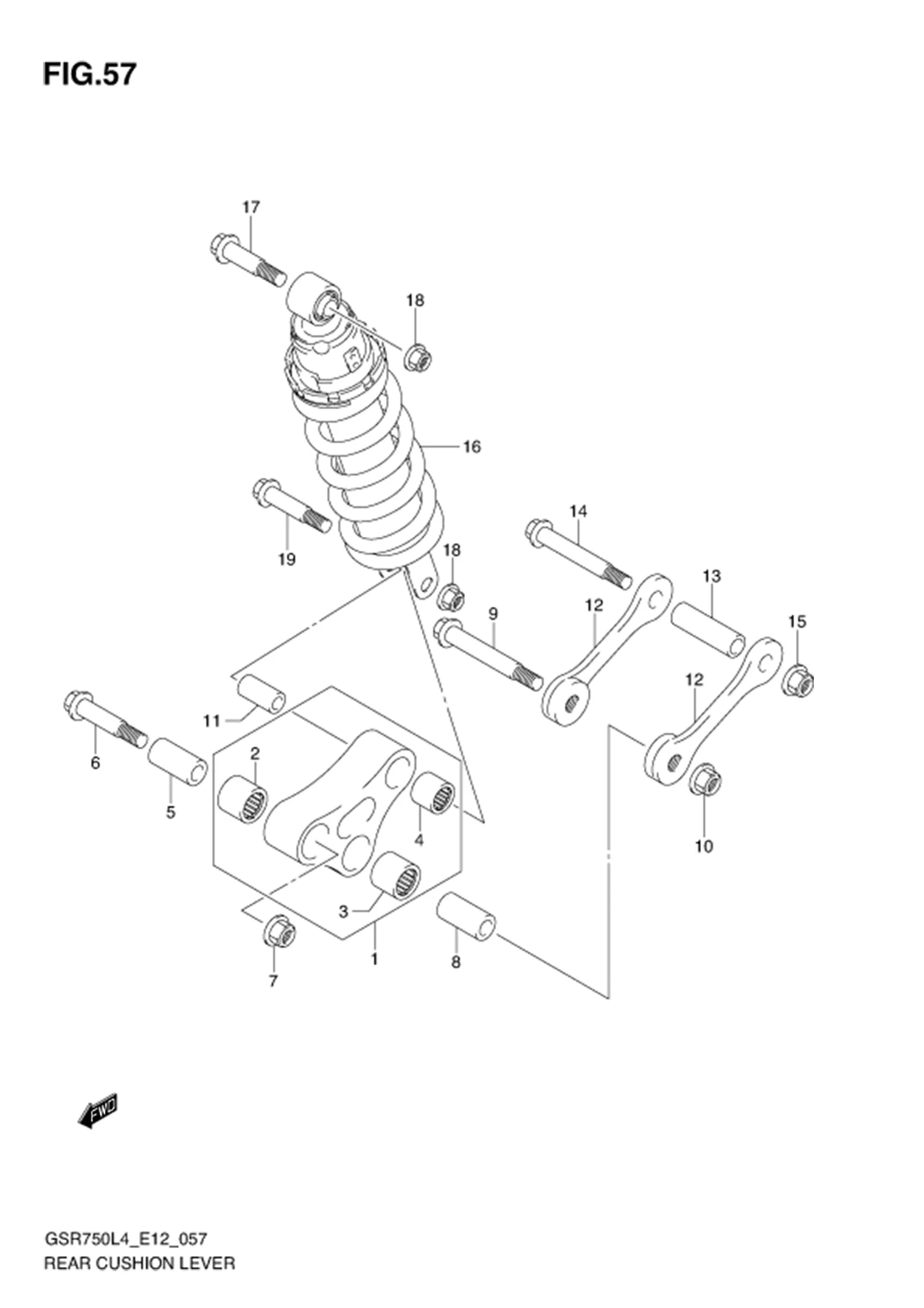

FIG.57 (1-F-7) REAR CUSHION LEVER

FIG.57 (1-F-7) REAR CUSHION LEVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	09159-12056-000	NUT	1	Rp51.000
	09103-10428-000	BOLT (10X58)	1	Rp31.000
	09159-10115-000	NUT	2	Rp23.000
	09103-10213-000	BOLT (10X52)	1	Rp30.500
	62100-08J00-17U	ABSORBER ASSY, REAR SHOCK (GRAY)	1	Rp4.791.000
	09159-12056-000	NUT	1	Rp51.000
	62658-37F10-000	BOLT, ROD	1	Rp61.000
	62646-08J00-000	SPACER, ROD	1	Rp128.500
	62640-08J00-000	ROD, REAR CUSHION	2	Rp402.000
	62317-47H00-000	SPACER, REAR	1	Rp112.500
	62600-08840-000	LEVER SET, REAR CUSHION	1	Rp1.073.500
	62658-37F10-000	BOLT, CENTER	1	Rp61.000
	62317-44B00-000	SPACER, CENTER	1	Rp117.500
	09159-12056-000	NUT	1	Rp51.000
	62668-42A02-000	BOLT, FRONT	1	Rp60.500
	62317-44B00-000	SPACER, FRONT	1	Rp117.500
	09263-17046-000	?BEARING (17X24X32)	1	Rp198.500
	09263-20116-000 SUB: 09263-20074-000	?BEARING (20X27X32)	1	Rp212.500
	09263-20116-000 SUB: 09263-20074-000	?BEARING (20X27X32)	1	Rp212.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
