GSR 750

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.35 (1-D-13) FRAME FIG.36 (1-D-14) STAND FIG.37 (1-D-15) FOOTREST FIG.38 (1-E-2) FUEL TANK FIG.39 (1-E-3) FUEL TANK SIDE COVER FIG.40 (1-E-4) FRAME COVER FIG.41 (1-E-5) FRAME BODY COVER FIG.42 (1-E-6) HOLDER FIG.43 (1-E-7) HEADLAMP HOUSING FIG.44 (1-E-8) FRONT FENDER FIG.45 (1-E-9) HANDLEBAR FIG.46 (1-E-10) HANDLE LEVER FIG.47 (1-E-11) REAR FENDER FIG.48 (1-E-12) LABEL FIG.49 (1-E-13) SEAT FIG.50 (1-E-14) FRONT FORK DAMPER FIG.51 (1-E-15) STEERING STEM FIG.52 (1-F-2) FRONT WHEEL FIG.53 (1-F-3) FRONT CALIPER FIG.54 (1-F-4) FRONT BRAKE HOSE FIG.55 (1-F-5) FRONT MASTER CYLINDER FIG.56 (1-F-6) REAR SWINGINGARM FIG.57 (1-F-7) REAR CUSHION LEVER FIG.58 (1-F-8) REAR WHEEL FIG.59 (1-F-9) REAR CALIPER FIG.60 (1-F-10) REAR MASTER CYLINDER FIG.61 (1-F-11) OPTIONAL FIG.62 (1-F-12) METER VISOR SET (OPTIONAL)FIG.63 (1-F-13) COWLING (OPTIONAL)

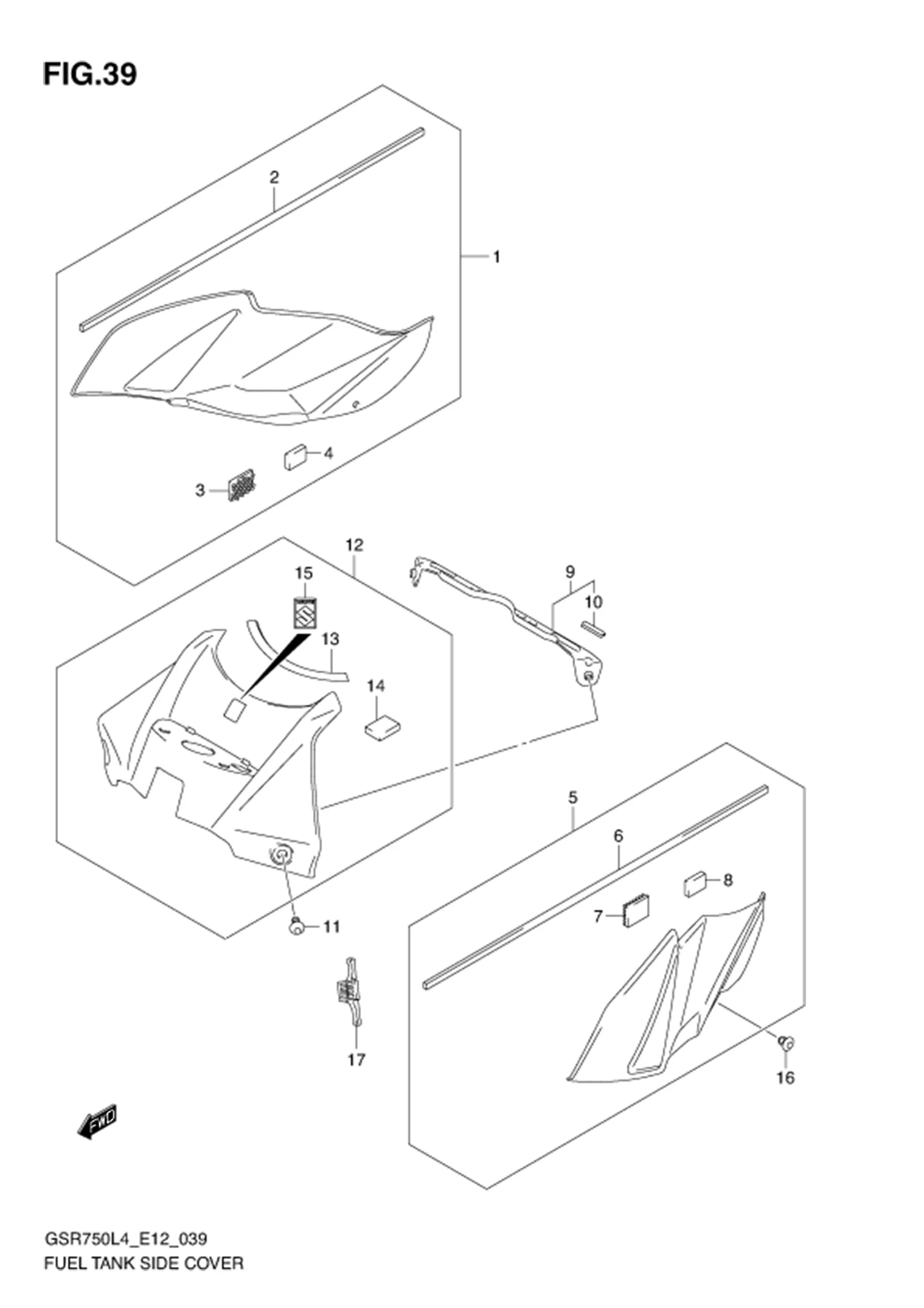

FIG.39 (1-E-3) FUEL TANK SIDE COVER

FIG.39 (1-E-3) FUEL TANK SIDE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	44250-08J00-291	COVER, TANK SIDE RH (BLACK)	1	Rp654.000
	44252-08J00-000	?CUSHION	1	Rp47.500
	44572-02F01-000	?FASTENER	2	Rp68.500
	47163-10FA0-000	?CUSHION	2	Rp33.500
	44260-08J00-291	COVER, TANK SIDE LH (BLACK)	1	Rp654.000
	44252-08J00-000	?CUSHION	1	Rp47.500
	44572-02F01-000	?FASTENER	2	Rp68.500
	47163-10FA0-000	?CUSHION	2	Rp33.500
	44160-08J00-000	BRACKET, TANK COVER CENTER	1	Rp153.000
	51861-21D00-000	?MOLDING, BRACKET	2	Rp42.000
	09139-06172-000	SCREW (6X10)	2	Rp23.000
	44290-08J10-YKV	COVER, TANK CENTER (BLACK)	1	Rp1.515.500
	44292-08J00-000	?CUSHION	1	Rp72.000
	47163-10FA0-000	?CUSHION	2	Rp33.500
	68281-47HA0-000	?EMBLEM "S"	1	Rp54.500
	44293-08J00-000	CUSHION, TANK COVER	2	Rp71.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
