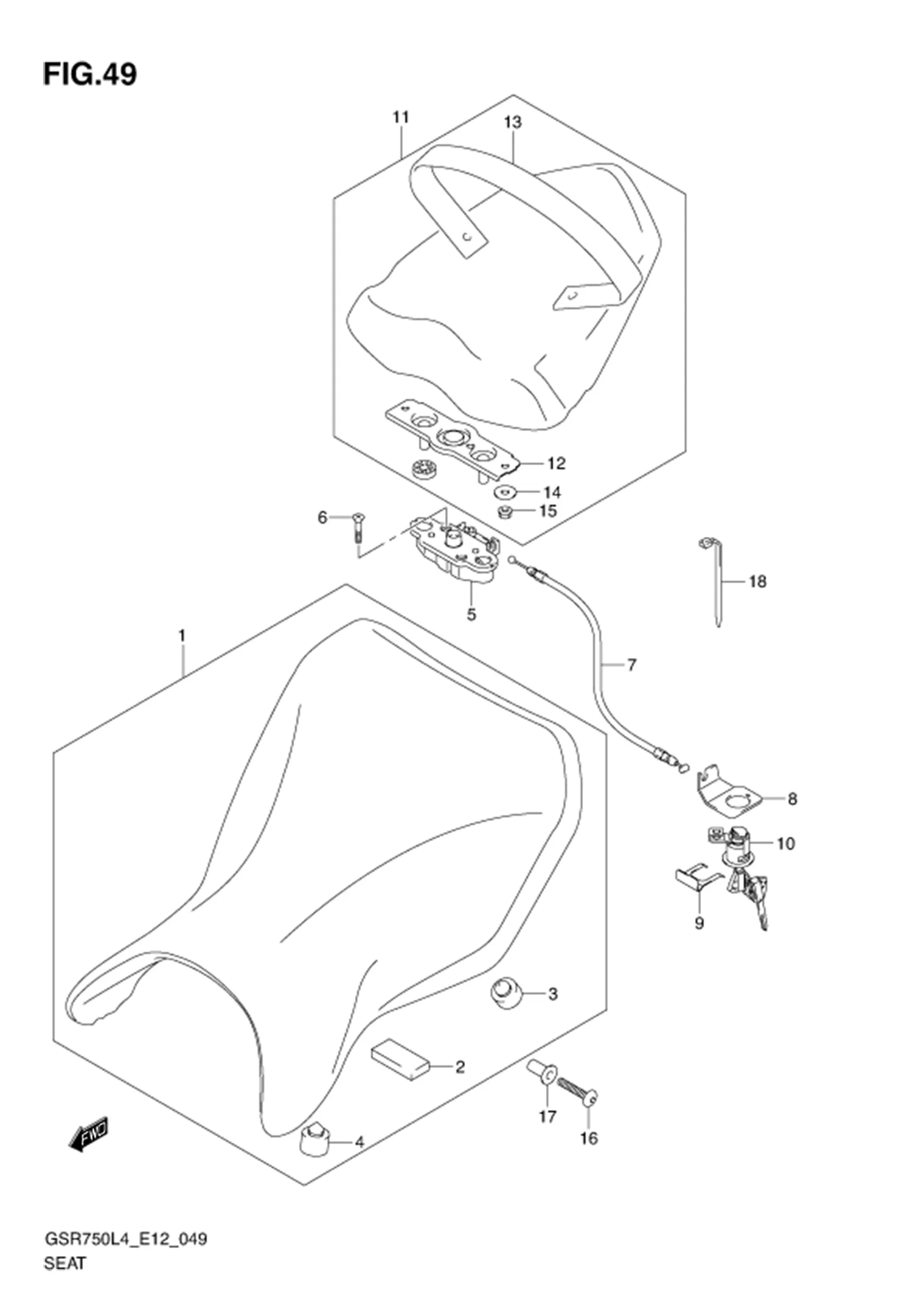

FIG.49 (1-E-13) SEAT

FIG.49 (1-E-13) SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	45149-37H00-000	?CUSHION	1	Rp40.000
	09180-06320-000	SPACER (6.5X9X19.4)	2	Rp44.000
	09139-06065-XC0	SCREW (6X30)	2	Rp21.500
	09160-06088-000	?WASHER (6.5X20X1.6)	2	Rp10.500
	45380-08J00-000	?BAND, PILLION SEAT GRIP	1	Rp145.500
	45290-47H01-000	?STRIKER, SEAT LOCK	1	Rp209.500
	45300-08J01-P3H	SEAT ASSY, PILLION (BLACK)	1	Rp1.396.500
	95700-14F00-000	LOCK ASSY, SEAT	1	Rp667.500
	45289-11F00-000	PLATE, SEAT LOCK ASSY	1	Rp4.000
	45288-14F00-000	GUIDE, SEAT LOCK CABLE	1	Rp32.000
	45280-08J00-000	CABLE, SEAT LOCK	1	Rp171.500
	02122-0630A-000	SCREW	2	Rp13.500
	DISCONTINUE SUB: 45220-47H00-000	BRACKET, SEAT SUPPORT	1	-
	09321-10034-000	?CUSHION	2	Rp54.500
	DISCONTINUE SUB: 09321-10011-000	?CUSHION	4	-
	45100-08J00-DW2	SEAT ASSY (BLACK)	1	Rp1.627.500
4	08316-1006A-000	NUT	3	Rp2.000
26	36990-25G00-000 SUB: 09407-11401-000	CLAMP	1	Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
